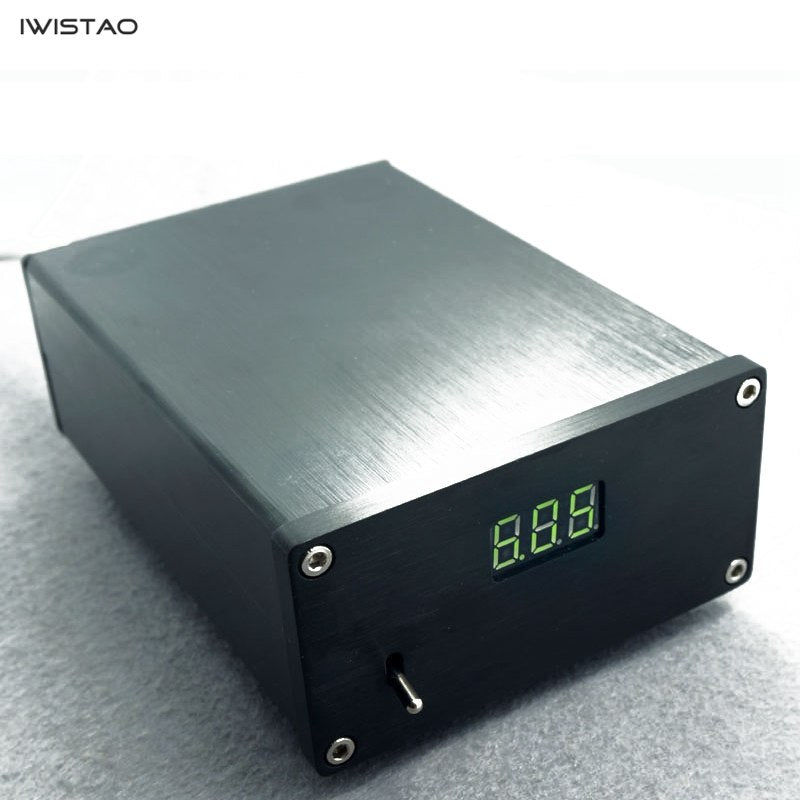

IWISTAO HIFI DC Linear Power Supply External Input AC220V for DAC / Sound Card Replace Switch Power Supply Multiple Voltages

Model No: WHFLPS-DC100

Special note: only red spot voltmeter display characters are available now.

As power source of audio equipment, undoubtedly power supply is a cornerstone of the entire equipment. At present, common decoder or external sound card which the basic standard is a switching power supply (such as MINIDAC, K8, RDAC, 0404USB, EMU1616M, AF2, PROFIRE610, etc.), which severely limits performance of the decoder or sound card.

In order to maximize the performance of the devices’ power restricted, we have developed an external DC linear power supply based on high-quality printed toroidal transformers, using LT's excellent linear regulator chips, which the output ripple is no more than 0.2MV that tested under 100mA, and carefully calibrated capacitors. After try to use it in U100, MINIDAC, AF4, BMC-2 and other equipments, the performance of most equipments using has greatly improved instead of external switching power supply.

Features

1. All aluminum alloy thick drawing panel.

2. Fully linear regulated power supply, the core is the LT105 (or LT13170).

3. Original Philips main capacitor, high speed rectifier diode, German ERO capacitor, Green Cube power transformer.

4. With digital tube to detect the output voltage in real time, there is also an adjustable resistor inside, which can be provided to some audiophile for secondary adjustment or ultra-precise adjustment.

Specifications

1. Input voltage: AC 220V/AC 110V (optional)

2. Output voltage / current:

a) DC-5V/2.5A

b) DC-9V/1.66A

c) DC-12V/1.25A

d) DC-15V/1A

e) DC-24/0.62A

f) DC5V/4.5A

g) DC9V/2.5A

h) DC12V/2A

i) DC15V/1.5A

j) DC24V/1A

3. Power polarity: inner is positive and outer is negative

4. DC plug size: outer diameter 5.5mm, inner diameter 2.1mm

5. Dimensions (L*W*H): 140mm * 75mm * 45 mm

6. Length of AC power cord: 1.5m (American standard power cord)

Usage cautions

1. Due to limits of temperature, external power supply, and display accuracy, the display module is allowed to display 1-2% display error at no load. For example, an 8V power supply may display 8.1V as normal.

2. Under normal load current, 5% load error is allowed, which is normal.

3. It is just for DC to replace your switch power supply. There is also a need to clearly understand the voltage and current. For example, if your device is AC input, it is not suitable for you to order it; some customers just don't see it. If you see 12V, you will place an order immediately. The result is reversed.

4. The voltage is also accurate to determine. For example, it is marked as DC 9V, if you are connected to the devise used DC12V; its performance will not be improved and will only be dropped.
