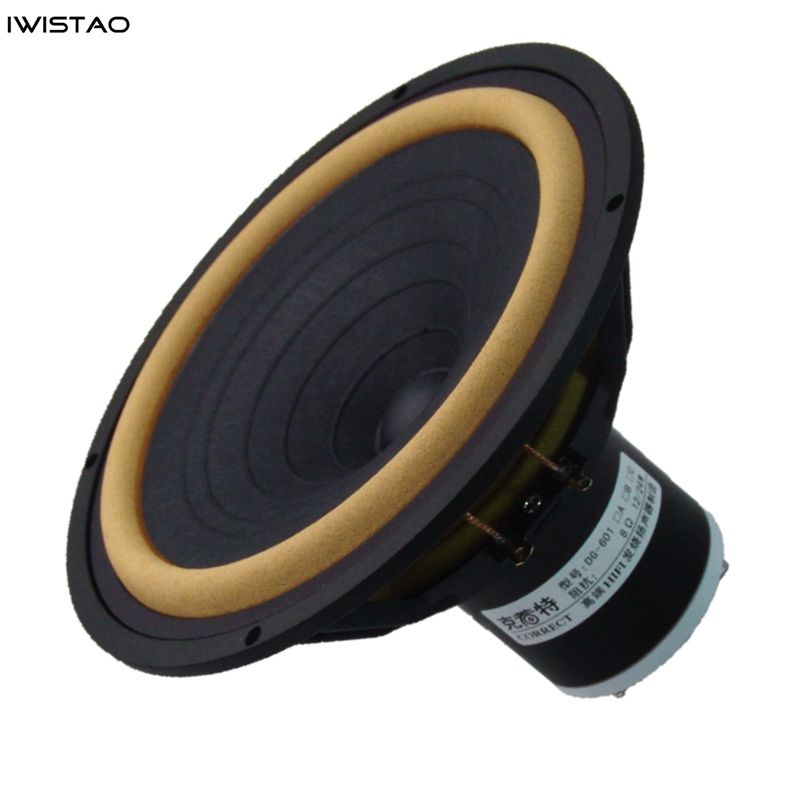

IWISTAO HIFI 6.5 Inch Full Range Speaker Unit 25W Max 55hz-20KHZ 93dB AlNiCo Magnetic 8 ohm Leather Edge Die-cast Aluminum Basin Frame
Model No: WHFRSU-KN65NGLE-8
This is a 6.5 inches full range speaker unit.
1. Adopt high-performance AlNiCo magnet.
2. Adopts a symmetrical magnetic circuit structure with a copper cap (short circuit ring).
3. With leathe edge of Full-range speaker.
4.With die-cast aluminum basin
5. With oxygen-free copper gold-plated solder tabs.
6. Adopt high-end CONEX elastic wave and KAPTON voice coil
7. Large magnetic circuit or special magnetic circuit hardware are all special processing appearance of lathe processing.
- Rated power: 12W (Max. 25W)
- Impedance: 8 ohm
- DC positive resistance 6.5ohm
- Sensitivity: 93dB
- Total quality factor (Q value): 0.516
- Equivalent volume (Vas): 24.9L
- Frequency range: 55～20K HZ
- Paper basin material: Leather-edge with paper basin
- Magnetic circuit structure: symmetrical magnetic circuit
- Basin frame material: die-cast aluminum basin frame
- Diameter: 162mm
- Height: 110mm
- Diameter of drilling through hole : 147mm, depthe of countersunk: 5mm
- weight: 3.2kg
- Qty: 1 pair
Recommended Cabinet Structure (only for your information)
