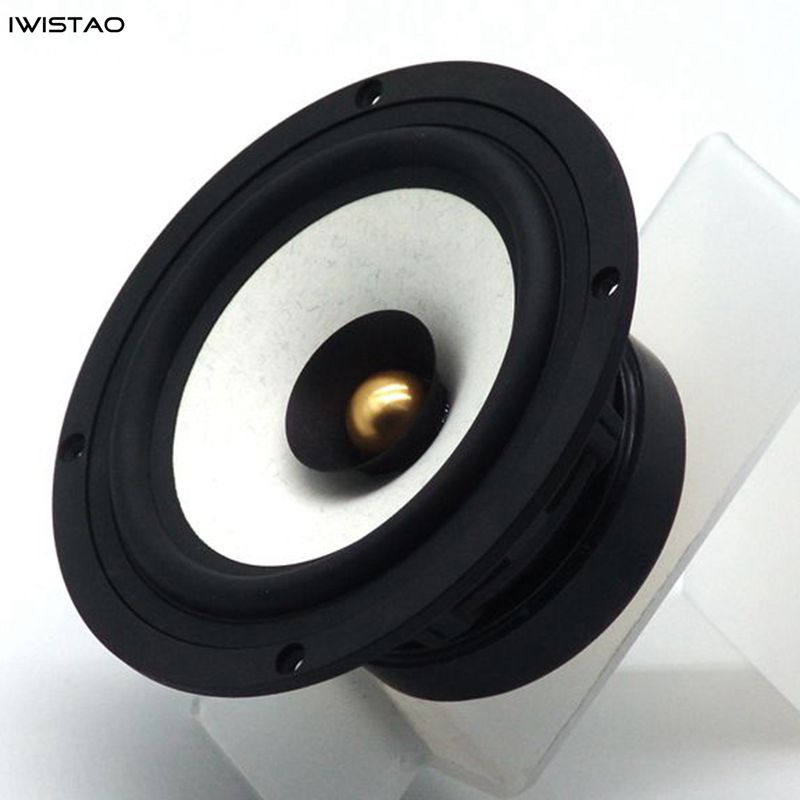

IWISTAO HIFI 5.25 Inch Full Range Speaker Unit 25W Max 60hz-20KHZ 91dB Ferrite Magnetic 4/8 ohm Die-cast Aluminum Basin Frame
Model No: WHFRSU-KN525
This is a 5.25 inches full range speaker unit.
1. Adopt high-performance ferrite magnet.
2. Adopts a symmetrical magnetic circuit structure with a copper cap (short circuit ring).
3. Full-range speakers are made of leather.
4.With die-cast aluminum basin
5. With oxygen-free copper gold-plated solder tabs.
6. Adopt high-end CONEX elastic wave and KAPTON voice coil
7. Large magnetic circuit or special magnetic circuit hardware are all special processing appearance of lathe processing.
- Rated power: 12W (Max. 25W)
- Impedance: 4/8 ohm
- DC positive resistance 6.5 / 3. 6 ohm
- Sensitivity: 91.3dB
- Total quality factor (Q value): 0.53
- Equivalent volume (Vas): 11.6L
- Frequency range: 62～20K HZ
- Paper basin material: oak-edge mica paper basin
- Magnetic circuit structure: symmetrical magnetic circuit
- Basin frame material: die-cast aluminum basin frame
- Diameter: 145mm
- Height: 66mm
- Diameter of drilling through hole : 117mm
- weight: 2.1kg
- Qty: 1 pair
