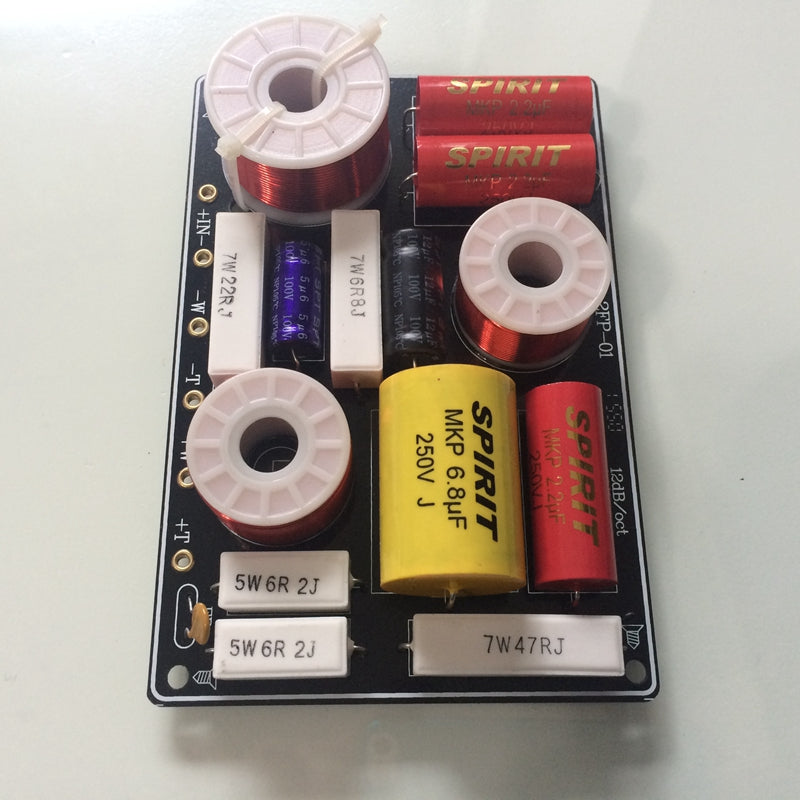

HIFI Passive Crossover
HIFI 3 Way Crossover Crossover-point 450 Hz/ 4.7 KHz for 8-inch or below 4-8 Ω Speakers Unit Max Power 200W
Model No: WHF-3Cr4700
This two way HIFI crossover is made of high-quality SPIRIT capacitors, and 5N high copper low resistance inductor that wound very full. Its crossover is 450 Hz / 4700Hz, and strives to perfect natural sound reduction, and take crossover responsibility well by itself. It can bear 150W power maximum, and suitable for DIY, upgrading or replacing the original speaker crossover, improve sound quality. Power of this section crossover is 200W, and applies for 3 way crossover 8-inch speaker cabinet or below.
PS: 1pc crossover for 1pc HIFI 3-way speaker cabinet.
Connection Wire Diagram with Amplifier and Speaker Unit
(Please solder the wire with correct polarity)
+ IN: Amplifier Positive
- IN: Amplifier Negtive
+W: Woofer Positive
- W: Woofer Negtive
+M: Middle Frequency Speaker Positive
-M: Middle Frequency Speaker Negtive
+T: Tremble Positive
-T: Tremble Negtive
1. The circuit is simple, there is no deliberate to raise or lower a band, or modify sound, but original to divide, to restore high-fidelity music as possible.
2. The materials used are also very particular, about the, the main channel capacitance and treble channel use MKP capacitors; Q value of bass channel inductance and resistance must be control well, of course, it must be large diameter inductance, otherwise Woofer would be insufficient.
Please solder the wire to the area that marked as red circle copper pad to avoid incorrect connection.
1. Maximum Power: 200W
2. Suitable impedance of speaker unit: 4-8 Ω
3. Filter characteristics: 12 dB / otc
4. Crossover point: 450Hz / 4.7 KHz
5. Dimensions (L * W * H): 119mm * 78mm * 30mm
6. Net Weight: 0.4 KG
