empty speaker cabinet
IWISTAO HIFI 2 Way Sealed Speaker Empty Cabinet 6.5 Inches Finished 1 Pair Solid Wood Back Passive Diaphragm for Tube Amplifier
Model No: WHFSC-O2W65IN-BPD
And Please provide your specification of your speaker units (bass and treble unit, and passive diaphragm) when your place order.
This 2 ways speaker sealed cabinet is made of pure solid wood with passive diaphragm.You may fix a passive diaphragm instead of an inverted tube.
As you know, the greater the material density of the speaker enclosure, the less the vibration produced by the enclosure. Solid wood is more reflective of sound than other materials, and tightness of the wood is higher, and the sound can be effectively expressed by the vibration of the air inside the box. We often say that the sound of wooden speakers is warm, in fact, the word warm means the balance of tri-band that are low, medium and high frequency; if the frequency is too low or too high, it will make people feel uncomfortable. The advantage of wooden speaker is that its playback effect is good, the vibration of the sound inside the box is stable, and the sound effect will be balanced and full.
1. Drilling the holes for treble and bass speaker units according to customer specification or drawings, please leave us message.
2. Tenon splicing, seamless inside enclosure.
3. Acoustic design with reasonable structure.
Solid wood structure, full of sound quality, warm, three-stage balance. strong bass by labyrinth structure.
Surface of the cabinet is coated with environmentally friendly wood wax oil, which has good texture;
Its terminals are made of pure copper and gold plated with a crystal case. It is resistant to oxidation and has small distortion.
Install pure copper feet on the bottom of the box to effectively reduce the contact between the box and the ground or the table, thus reducing the resonance.
The interior of the cabinet is filled with high-quality sound-absorbing cotton, which can absorb the sound waves radiated by the speaker unit and reduce the refraction and reflection of the sound wave dance. Eliminate the confusion and ambiguity of the sound.

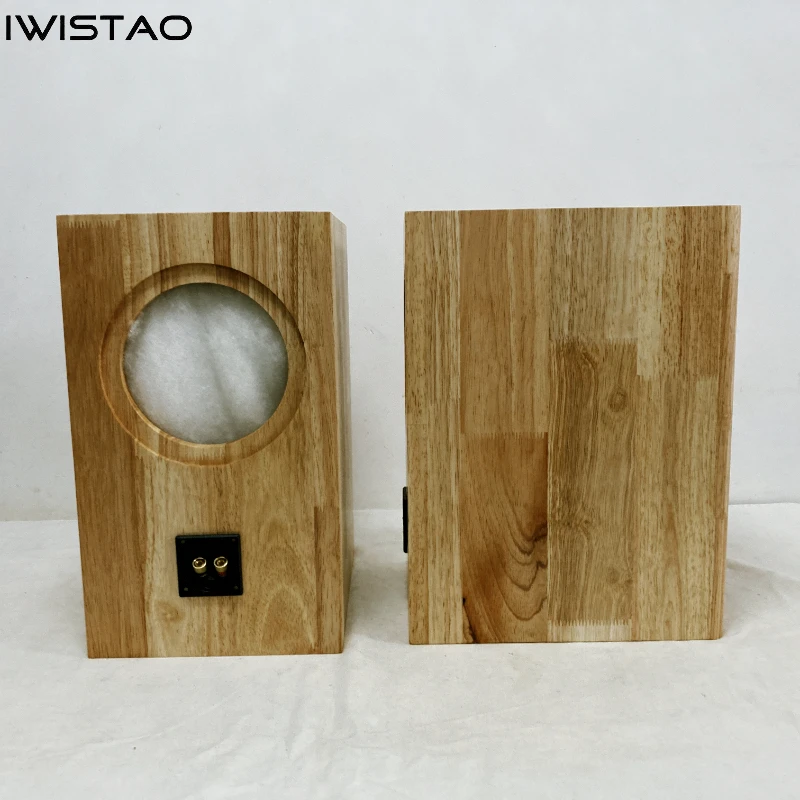

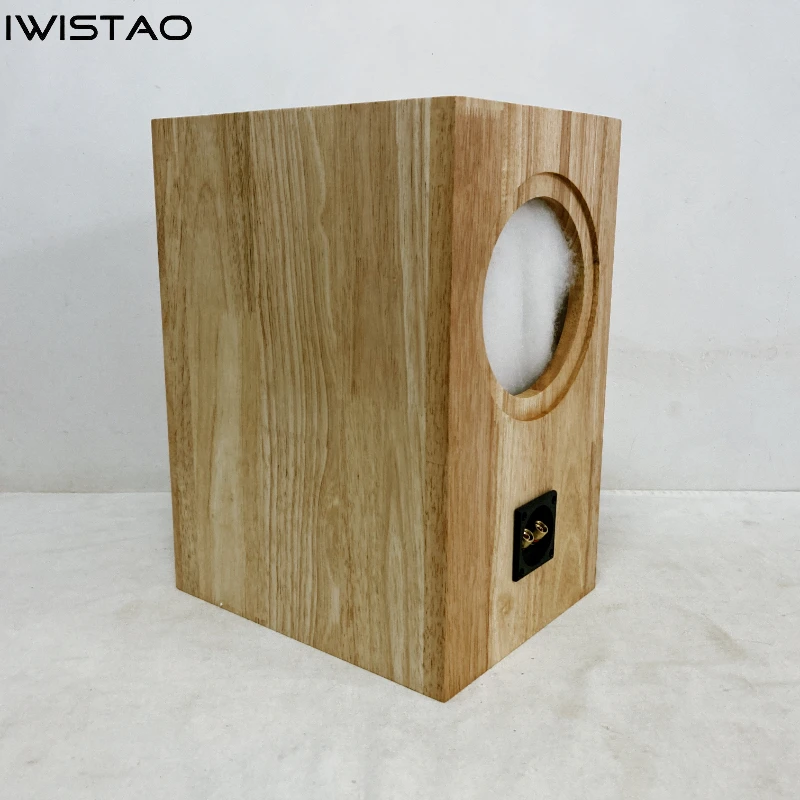

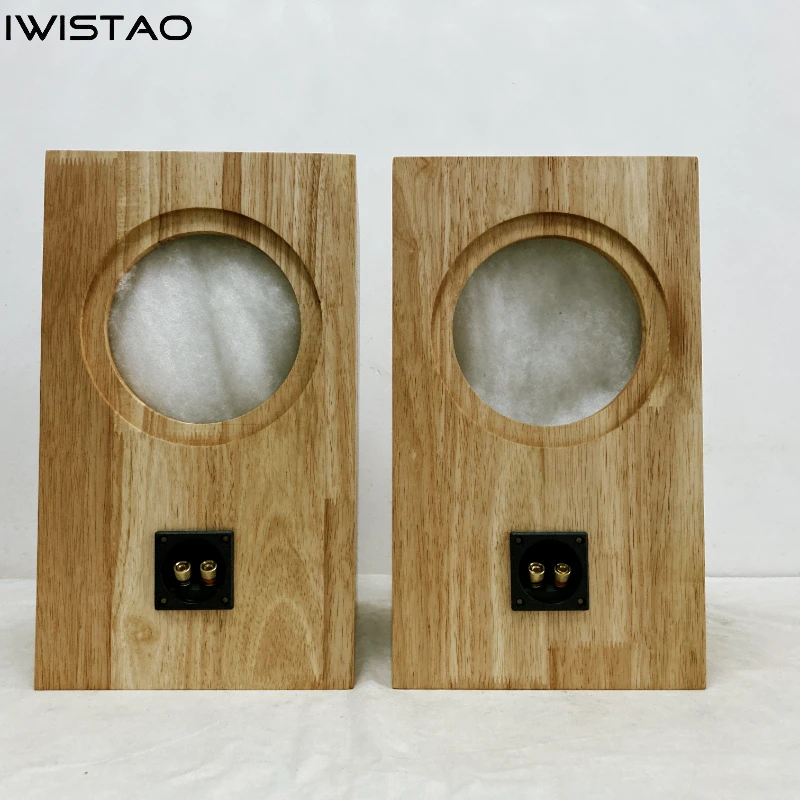

Back view (hole for a passive diaphragm)
1. Material: pure solid wood
2. Cabinet specifications:
a. 4 inch (W*H*D): 180mm* 300mm *230mm, sheet thickness 18mm, volume 6.9 liters, net weight 7.5 kg
b. 5 inch (W*H*D): 200mm*350mm*250mm, sheet thickness 18mm, volume 10.8 liters, net weight 11.5 kg
c. 6.5 inches (W*H*D: 230mm* 380mm* 290mm, sheet thickness 18mm, volume 16.5 liters, net weight 17 kg
d. 8 inch (W*H*D): 270mm* 460mm* 300mm, sheet thickness 18mm, volume 26 liters, net weight 25 kg
3. Please provide the size or drawings for drilling the holes of speaker units, and passive diaphragm.
a. junction box
b. Sound absorbing cotton
c. Speaker cable (in the box): 60-80cm
Remark: The position of the speaker screw requires pre-opening (2~3mm), otherwise the screw will crack the wood.
Natural wood will have natural defects such as crusting and texture; there will be color difference in the plate. Hand-made and back-light may use slight scratch marks. If you are a perfectionist, please do not buy it. The pictures are for reference only and are subject to the actual product.
