IWISTAO DIY Wooden Casing for Tube Amplifier Chassis 430X330X63 Red Sandalwood Top Down Plate 3 Inputs Selector Hole

20 In stock

Amplifier Casing

To add this product to your wish list you must Sign In or Create an account

IWISTAO DIY Wooden Casing for Tube Amplifier Chassis 430X330X63 Red Sandalwood Top Down Plate 3 Inputs Selector Hole   Model No: WWC-430x330x63   The texture of each chassis is different, if you mind it, please don't buy it.   This tube amplifier casing is made of Red sandalwood that is a...
$149.90
+
-
$149.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

IWISTAO DIY Wooden Casing for Tube Amplifier Chassis 430X330X63 Red Sandalwood Top Down Plate 3 Inputs Selector Hole



Model No: WWC-430x330x63



The texture of each chassis is different, if you mind it, please don't buy it.



This tube amplifier casing is made of Red sandalwood that is a kind of high-hardness wood. The case made is strong, straight, not easy to crack and deform, and has a light sandalwood fragrance.

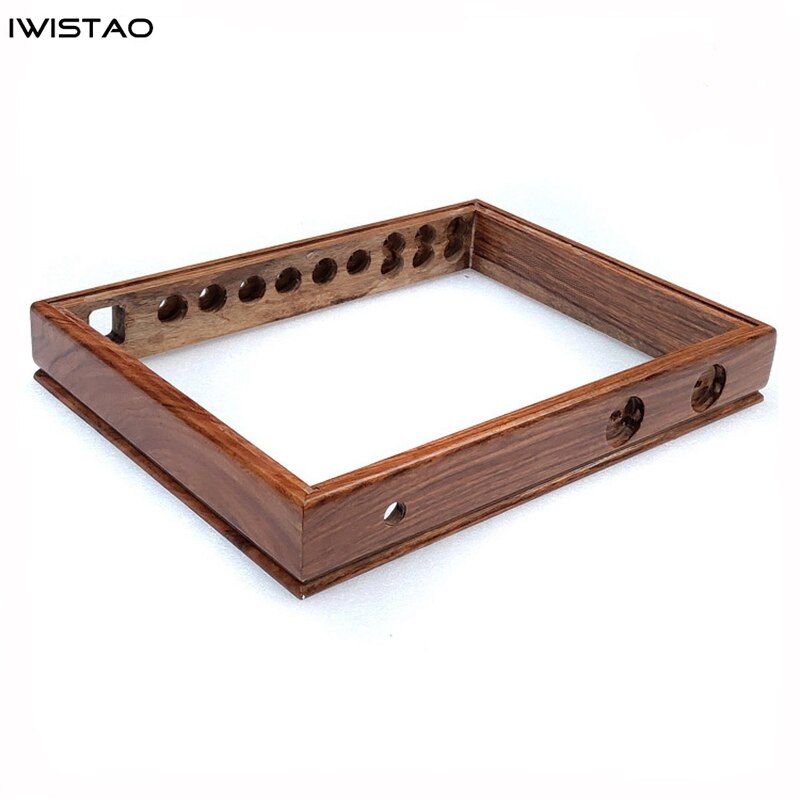

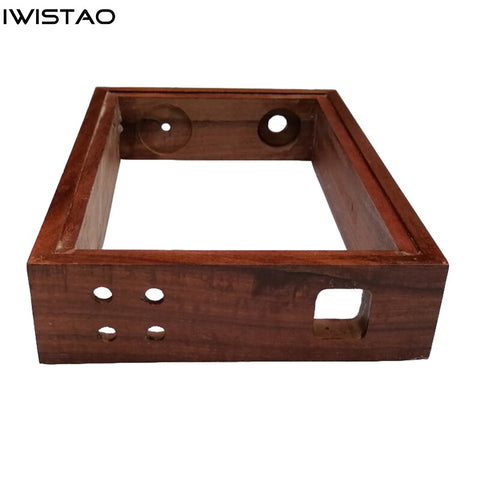

Accordingly, the holes of  a power switch, a potentiometer, an input seletor in the front panel; And, the holes of a power input socket, 3 groups RCA input jacks, and six output terminals in the back front also cutas the photos showed .



Front Panel Holes-drilled:

16mm power switch through hole, can be installed with angel eye self-locking switch or toggle switch, when using toggle switch, there is a conversion iron sheet.



The volume knob and band switch (input selector) have a hole diameter of 38mm, a counterbore depth of 12mm, and a potentiometer hole diameter is 6mm.



Back Panel Holes-drilled:

American standard power socket with insurance, hole size 33mm*28mm;

6 speaker terminals and 6 RCA holes, with a hole diameter of 9.5mm;







WWC-430X330X63(1)lWWC-430X330X63(1)l4WWC-430X330X63(1)l2WWC-430X330X63(1)l1WWC-430X330X63(1)l3



Details



WWC-430X330X63(1)l5WWC-430X330X63(1)l51



Specifications

1.      Material: Aluminum plate (top)+ Iron plate(down)+Red sandalwood

2.      Dimensions (L x D x H): 430mm X 330mm X 63mm

3.      Internal Dimensions (L x D x H): 390mm X 290mm X 59mm

4.      Red sandalwood Cabinet Housing x 1

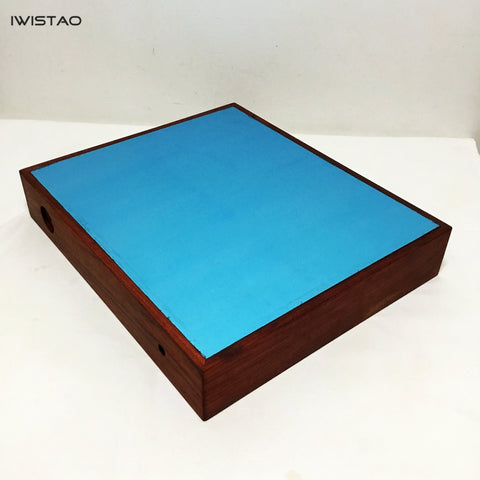

5.      Top: 2mm aluminum plate x 1 (oxidation alloy Aluminum with double-sided aluminum foil)

         Bottom: 1 mm Paint punching iron mesh board x 1

6.      No cut the holes on the top and down plate.

WWC-430X330X63(1)B_l



Bottom Plate



Please note: The item need reservations and lead time of the product is 10 days after payment done.



It does not include the transformer covers, tubes , cushions and other parts.
