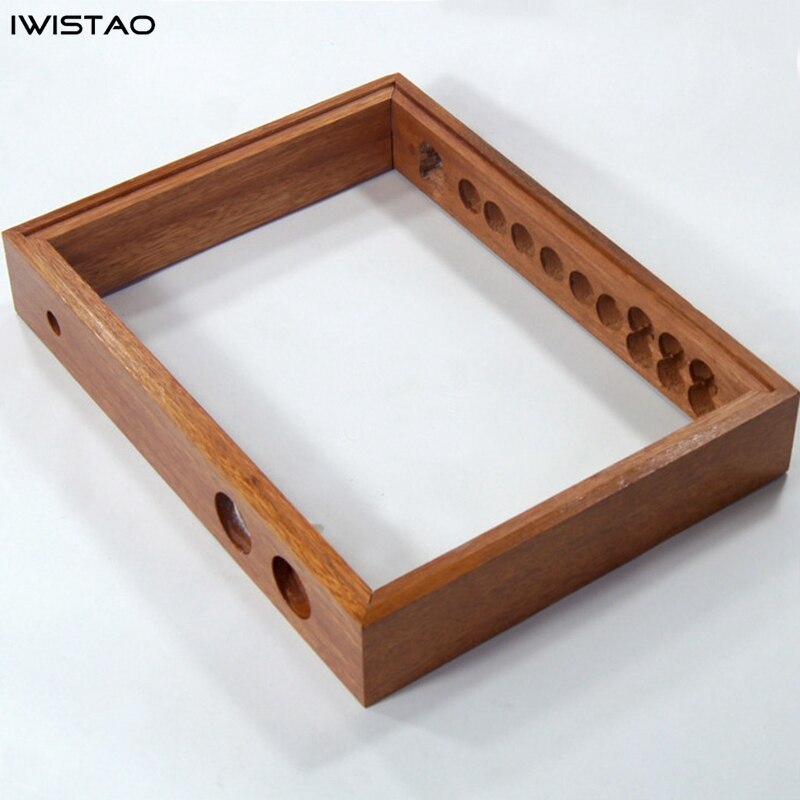

IWISTAO DIY Wooden Casing for Tube Amplifier Chassis 400X300X65 Red Walnut Wood Top Down Plate 3 Inputs Selector Hole
Model No: WWC-400x300x65
The texture of each chassis is different, if you mind it, please don'n buy it.
This tube amplifier casing is made of red walnut wood, and the housing thickness is 20mm. After repeated polishing, the paint layer is not thick enough to show the texture of the log as much as possible. In order to make the color of the case more uniform, the outside of the case is colored
Accordingly, the holes of a power switch, a potentiometer, an input seletor in the front panel; And, the holes of a power input socket, 3 groups RCA input jacks, and six output terminals in the back front also cutas the photos showed .
Front Panel Holes-drilled:
16mm power switch through hole, can be installed with angel eye self-locking switch or toggle switch, when using toggle switch, there is a conversion iron sheet.
The volume knob and band switch (input selector) have a hole diameter of 38mm, a counterbore depth of 10mm, and a potentiometer hole diameter is 6mm.
Back Panel Holes-drilled:
American standard power socket with insurance, hole size 33mm*28mm;
6 speaker terminals with a hole 5mm, and 6 RCA holes with a hole diameter of 9.5mm;
1. Material: Aluminum plate (top)+ Iron plate(down)+Red sandalwood
2. Dimensions (L x D x H): 400mm X 30mm X 65mm
3. Internal Dimensions (L x D x H): 360mm X 260mm X 60mm
4. Red walnut wood Cabinet Housing x 1
5. Top: 2mm aluminum plate x 1 (oxidation alloy Aluminum with double-sided aluminum foil)
Bottom: 1mm Paint punching iron mesh board x 1
6. No cut the holes on the top and down plate.
Please note: The item need reservations and lead time of the product is 10 days after payment done.
It does not include the transformer covers, tubes , cushions and other parts.
