IWISTAO Discrete Components Stereo FM Radio Board Electrical Tuning Decoding LA3401 TDA2030A Amplifier No Including Power Adapter
11 In stock
Tube FM Tuner
To add this product to your wish list you must Sign In or Create an account
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).
IWISTAO Discrete Components FM Radio Board Electrical Tuning Stereo LA3401 Decoding TDA2030A Amplifier No Including Power Adapter
Model No: WHFB-SPFM-D
Please note:
This is a PCBA bord, and you should connect a quality power supply as DC12V , don't use a switch power supply that interfere the radio signal receiving , you may use common linear power from power transformer. It is best if you can provide power form battery，please try it if available.

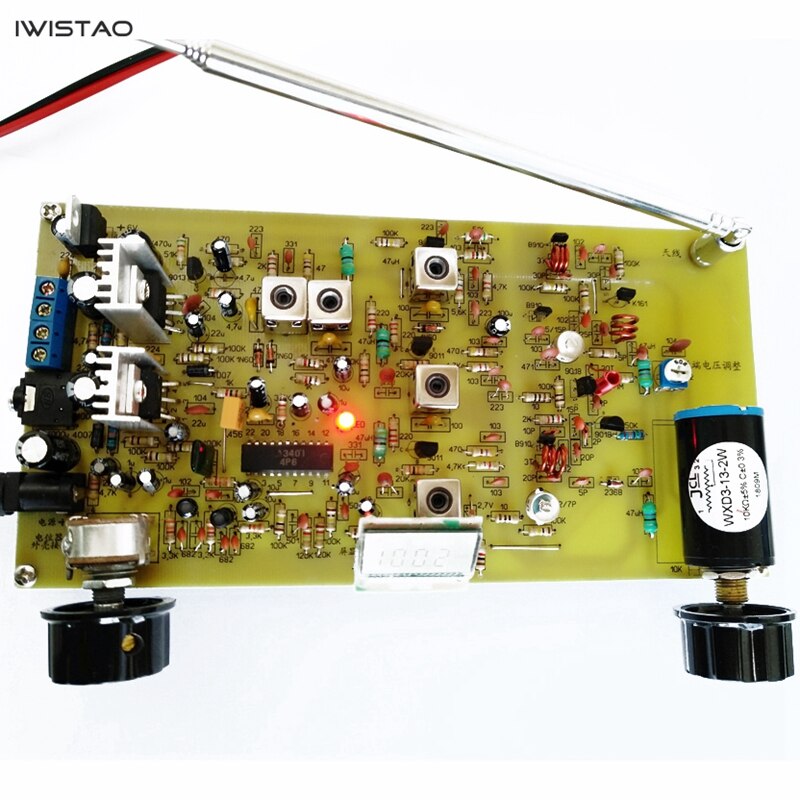

This is a stereo FM radio finished board with discrete components. You only connect DC12V power adapter and speakers then you can enjoy wonderful FM radio. Or, you may make a wooden casing and DIY it as a vintage radio.
The FET is used for high-level discharge, and the triple-coupling is used to increase the AFC automatic frequency tracking circuit, which makes the receiving sensitivity more selective and increases the frequency display. The debugging is more intuitive.
The PCBA adopts double balanced proportional discriminator with excellent sound quality, and also optimizes its layout of the intermediate frequency circuit PCB, improves the stability of the intermediate frequency. And it uses a LA3401 decoding chip as FM stereo decoder, whose resolution is up to 70dB,its noise ratio is up to 95 dB. At the same time, a first-stage FM mixed signal preamplifier is added, which improve the problem that the LA3401 standard circuit cannot be driven in weak signal, so that each radio station can achieve good mediation resolution. After then, the LA3401 has no decoding noise and is comparable to the LA3450 chip.
The power amplifier part use two TDA2030A chips, its output power is larger, sound quality is pure and thick, clean and pure.
Wire Connections
(The photo below only for you information )
Specifications
1. Undistorted power output: 2*2W or more.
2. Power supply voltage: DC12V (no including power adapter)
Packing List
Discrete components Stereo FM radio x 1pc
