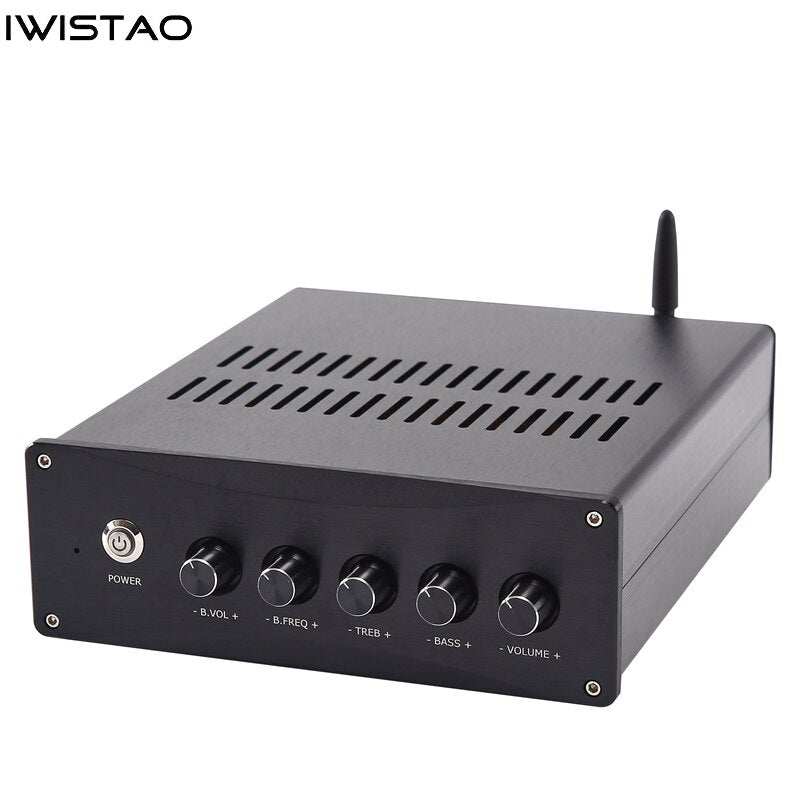

IWISTAO Digital 2.1 Power Amplifier TPA3255 Class D QCC3034 Bluetooth 5.0 120W*2+240W AC110~240V Black



Model No: WHFDPW-BT5TPA3255

The TPA3255 is a high performance Class D power amplifier with Class D efficiency and capable of delivering true high-end sound quality. The device features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath™ Ultra HD). This technology enables the device to maintain ultra-low distortion across the entire audio frequency band while delivering flawless sound quality.



Features

1. Using original TPA3255; Qualcomm QCC3034 Bluetooth 5.0 chip, support sbc, aac, aptx, aptx-HD decoding

2. Built-in high-power switching power supply, the main filter uses imported electrolytic capacitors to ensure strong and continuous power support.

3. The high-current inductor of red and gray ring specially used for audio is adopted to ensure the sound is clear and powerful.

4. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and full tin spraying process to ensure good passing performance of large and small currents.

5. This machine adopts an all-aluminum chassis, and the surface of the chassis is all treated with a brushed oxidation coloring process!

Details



Specifications

1. Working voltage: AC110V-240V

2. Size: about length 240mm* width 188mm* height 60mm (without antenna)

3. Net weight: about 1.7KG (without packaging)

3. Frequency response: 20Hz-20KHz

4. Total output power when total harmonic distortion + noise (THD+N) is 1% (240W/4Ω+120W*2)

5. Total output power when total harmonic distortion + noise (THD+N) is 10% (300W/4Ω+150W*2)

6. Response frequency of subwoofer: 20-150HZ

7. Input method: analog and Bluetooth input method. When the two methods are input at the same time, the Bluetooth input takes priority.
After the Bluetooth connection, the RCA input is automatically disconnected; when analog input is required, please turn off the Bluetooth function of the mobile phone before switching.

8. Accessories:

Antenna x1,
Power cord x1
