Bluetooth Development Board

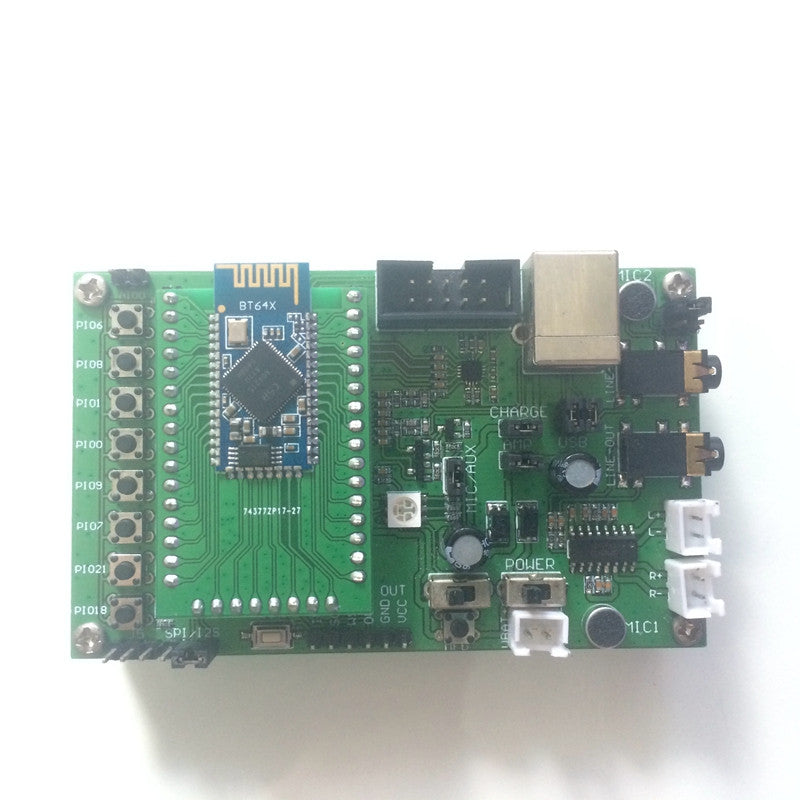

CSRA64215 Bluetooth 4.2 Development Board Simulation Demo Boards
Model No: WBDB-CSRA64215
This Bluetooth development board is used to develop related Bluetooth products for developers only, which contains 4M FLASH, it is a fast, convenient, practical, necessary weapon for product development. This development board can be used to develop Bluetooth headset, car hands-free, Bluetooth speakers and so on.
After you buy this development board we will free provide relevant information and software, including simple development process, development tools, development board schematics and so on.
It is a professional item, that need software skills of Bluetooth and neccessary skills of circuit hardware for operation and debugging, if you don't have them, please not buy it. And, we don't provide you any other support except above (development board and tools). If you buy it, it means you accept the terms.
1. Provide 3W amplifier output, then speaker can be used directly as a Bluetooth speaker.
2. Provide 3.5 headphone output interface, can be used directly as a Bluetooth headset when plug the headset.
3. Provide 3.5AUX-IN port, support AUX-IN switch.
4. MIC interface, can be called to call, and provide debugging dual MIC noise cancellation function.
5. SPI debug burning interface, to facilitate the use of debugging.
6. Bluetooth IO port are reserved for the PIN, for development and debugging.
7. 8 keys, 8 IO port with LED instructions IO port working state.
8. Power button MFB provides key to boot and power on two ways.
9. Three-color LED instructions, debugging LED status more convenient.
10. USB communication function, used to debug USB sound card function.
11. This development board backplane can also be used for all other CSR modules.
Introduction of board interface
1. 8 keys and LED, the button for the Bluetooth function control, LED display Bluetooth IO level.
2. Reset key
3. No function (UART output for 57E development board)
4. AIO0 output
5. Soft start button
6. Hard boot switch
7. Power switch
8. Battery input
9. Deputy MIC
10. 3W speaker right channel output
11. 3W speaker left channel output
12. Audio output
13. AUX input
14. AUX-IN Insert Detection Select jumper
15. Main MIC
16. USB input
17. SPI burn interface
18. USB data switch
19. Charge switch
20. Power amplifier switch
21. MIC / AUX selector switch
22. 3-color LED
