IWISTAO Amorphous C-type Core Single-ended Output Transformer Pr 5K Se 0-4-8-16 Ohms for Tube Amplifier 6P1 6P14 EL84 6P6P 6V6

98 In stock

Tube Amplifier Output Transformer

To add this product to your wish list you must Sign In or Create an account

IWISTAO Amorphous C-type Core Single-ended Output Transformer Pr 5K Se 0-4-8-16 Ohms for Tube Amplifier 6P1 6P14 EL84 6P6P 6V6   Model No: WVTR-OPTSE5K(4C)   The British amorphous 4c advanced iron core is suitable for vacuum tube 6p6p,6v6.el84, 6p1, 6p14 single-ended small class A tube power amplifiers, because distributed capacitance...
$59.90
+
-
$59.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

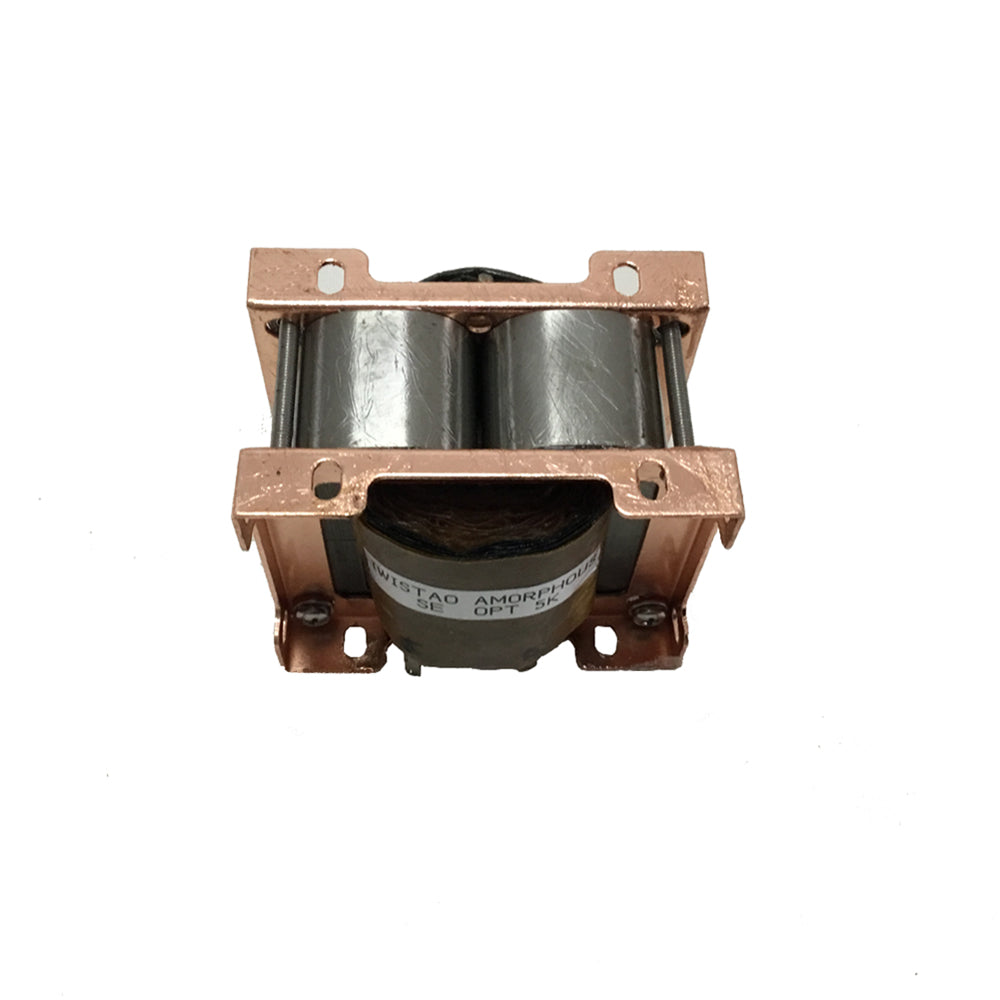

IWISTAO Amorphous C-type Core Single-ended Output Transformer Pr 5K Se 0-4-8-16 Ohms for Tube Amplifier 6P1 6P14 EL84 6P6P 6V6



Model No: WVTR-OPTSE5K(4C)



The British amorphous 4c advanced iron core is suitable for vacuum tube 6p6p,6v6.el84, 6p1, 6p14 single-ended small class A tube power amplifiers, because distributed capacitance of the gate to the cathode of these tubes is relatively large, coupled with relatively high impedance, With multiple turns, and the leakage inductance naturally increases. This is why these unknown small tubes are always difficult to reach HIFI music hall.


Taking into account market positioning and consumer’s taste, we have developed a single-ended output transformer that adopts British 4C amorphous high-grade iron core and carefully wound to make up for the shortcomings of these tubes and improve their sound quality. Also Using high-quality enameled wire, lamination process, CNC drying, vacuum impregnation, well-designed 8C structure, to design to a perfect coefficient.


After actual measurement and listening, the voice is very vivid, clear, low-frequency tension is very balanced in three bands, excellent permeability and atmosphere feeling



It is a better choice to tube amplifier audiophiles.



 IWISTAO Amorphous C-type Core Single-ended Output Transformer Pr5K Se 0-4-8-16 Ohms for Tube Amplifier 6P1 6P14 EL84 6P6P 6V6 IWISTAO Amorphous C-type Core Single-ended Output Transformer Pr5K Se 0-4-8-16 Ohms for Tube Amplifier 6P1 6P14 EL84 6P6P 6V6 IWISTAO Amorphous C-type Core Single-ended Output Transformer Pr5K Se 0-4-8-16 Ohms for Tube Amplifier 6P1 6P14 EL84 6P6P

Specifications

1. Material: British amorphous advanced 4C iron core

2. Bandwidth: 25HZ-40Khz(-1dB)

3. Impedance: 5K ohms

4. Output impedance: 0-4-8-16 ohms

5. Weight: 1.1kg / piece

8. Size (W * H * D): 86mm * 75mm * 60mm
