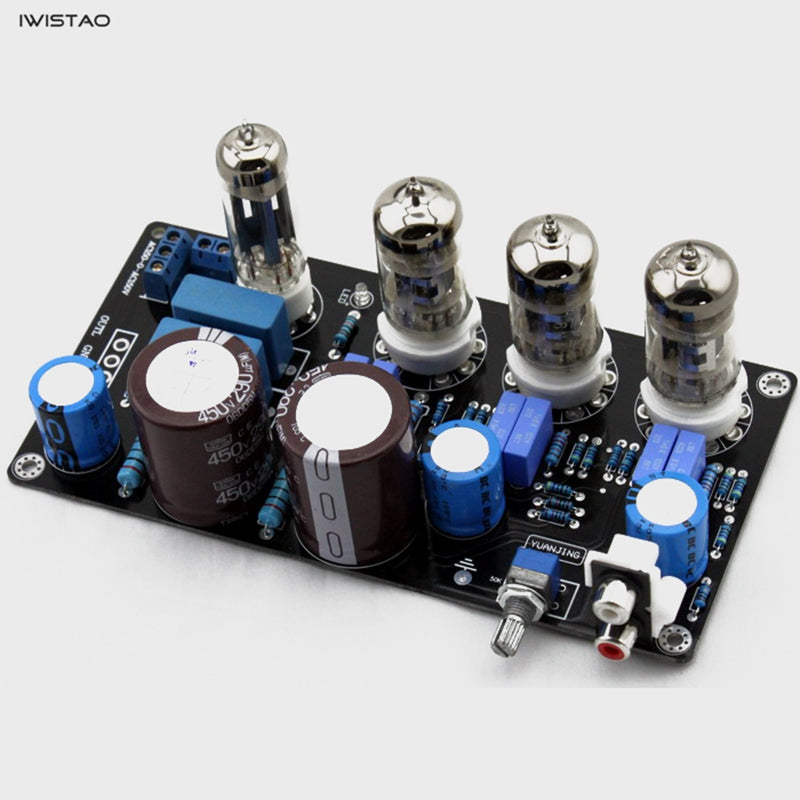

IWISTAO 6N4 Vacuum Tube Preamplifier Finished Board Maratz 7 Circuit 12AX7



Model No: WVA-PABM7



This is a pure tube preamplifier finished board that refers to Maratz 7 circuit, and adopts tube 6z4 as rectification, and 6N4 as preamplifier that is replaced by tube 12AX7.



1.Standard version

WVT-PAM7(2)l1WVT-PAM7(2)l2

2. Advanced Version



WVT-PAM7(3t 5)WVT-PAM7(3t 5)1



Features


1. Using original 6N4 tube (be replaced by tube 12AX7 )

2. The electrolytic capacitor adopts imported chemical and BC electrolysis, the coupling capacitor adopts Philips 1UF, and the output adopts Siemens 1UF to ensure strong and continuous power support.

3. The resistor uses a four-ring 1W metal film resistor to ensure a good signal-to-noise ratio.

4. First-class PCB quality. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current.

5. Use 7 color flashing LED indicators, the effect is better at night!



Specifications

1. PCB size: 170mm*85mm

2. Supply voltage: AC6.5V (15W); AC150V-0-AC150V (10W)

3. Versions:

  • Standard version: within tube 6Z4 x1 (no including 3pcs 6N4)
  • Advanced version: within full tube (3pcs 6N4, and 1pc 6Z4)


Note: we provide you some items and components for your DIY. If you have enough capablities for circuit-reading, electronical components knowledge, assembling, soldering and problem-solving, you can buy them to enjoy DIY. If not, please don't buy them. We only provide limit technology support in this individial items itself.
