IWISTAO 50W HIFI DC Linear Power Supply for USB Amp DAC External Regulated Power Supply

98 In stock

HIFI Power cord

To add this product to your wish list you must Sign In or Create an account

IWISTAO 50W HIFI Linear Power Supply for USB Amp DAC External Regulated Power Supply with Digital Display   Model No:WHFLPS-DC200   In recent years, more and more audio and digital products are powered by external power supplies, but due to cost considerations, only small switching power supplies or ordinary transformers...
$89.90
Click to refer to Shipping Rate
Voltage
+
-
$89.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

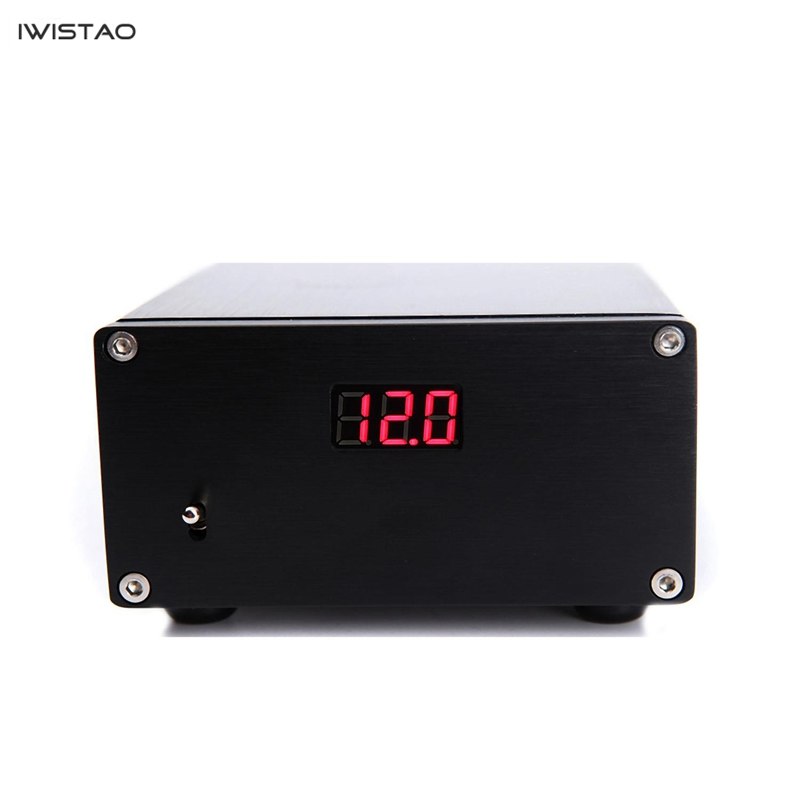

IWISTAO 50W HIFI Linear Power Supply for USB Amp DAC External Regulated Power Supply with Digital Display



Model No:WHFLPS-DC200



In recent years, more and more audio and digital products are powered by external power supplies, but due to cost considerations, only small switching power supplies or ordinary transformers are generally available. As you know, power supply plays a decisive role in the quality of audio or digital products. Although switching power supply has the advantages of high efficiency and small size, its noise of the output DC power supply is several orders of magnitude higher than that of the linear power supply.



Features

1. All-aluminum drawing case, Aerospace aviation power plug, digital tube display, bingzi sealed transformer.

2. Fully discrete high speed low internal resistance low ripple power supply module.

3. With digital tube to detect the output voltage in real time, the internal adjustable torque is also provided, which can be provided to some players for secondary adjustment or ultra-precise adjustment.

4. For each version, the voltage of the internal transformer is different, so the output voltage can only be adjusted by +/-15%. Please choose the voltage version that suits you.



Main Purpose

1. Upgrade XMOS CM6631 TE8802L and other USB interface DC power supply

2. Various DC5V powered set-top boxes, routers and other digital devices

3. Various USB-powered digital devices, mobile phone charging, etc.

4. Various amps, digital devices such as DACs

WHFLPS-DC20018x8l)2WHFLPS-DC20018x8lWHFLPS-DC20018x8l1WHFLPS-DC20018x8l)3



Specifications

1. Input voltage: AC220V or AC 110V (can be customized)

2. Transformer power: 50VA

3. Output voltage / current:

a) DC-5V/5A

b) DC-9V/4A

c) DC-12V/3.3A

d) DC-15V/2.7A

e) DC-18V/2A

f) DC-24V/1.6A

4. Power polarity: inner is positive and outer is negative

5. DC plug size: outer diameter 5.5mm, inner diameter 2.1mm

6. Digital display color: red.

7. Dimensions (width * height * depth): 100 * 50 * 200 mm (excluding the protruding part size)

8. Weight: about 2kg

9. Accessories:

a) DC power cord: 1.2M (DC5.5/2.1)

b) American standard power cord x1

Usage cautions

1. Due to limits of temperature, external power supply, and display accuracy, the display module is allowed to display 1-2% display error at no load. For example, an 8V power supply may display 8.1V as normal.

2. Under normal load current, 5% load error is allowed, which is normal.

3. It is just for DC to replace your switch power supply. There is also a need to clearly understand the voltage and current. For example, if your device is AC input, it is not suitable for you to order it; some customers just don't see it. If you see 12V, you will place an order immediately. The result is reversed.

4. The voltage is also accurate to determine. For example, it is marked as DC 9V, if you are connected to the devise used DC12V; its performance will not be improved and will only be dropped.
