IWISTAO 3 Inch Super Tweeter Copper Horn 1 Pair Trumpet Flower Silk Membrane Film Bullet Driver 6Ω 20W 91dB
Model No: WHFSC-MSHTF06

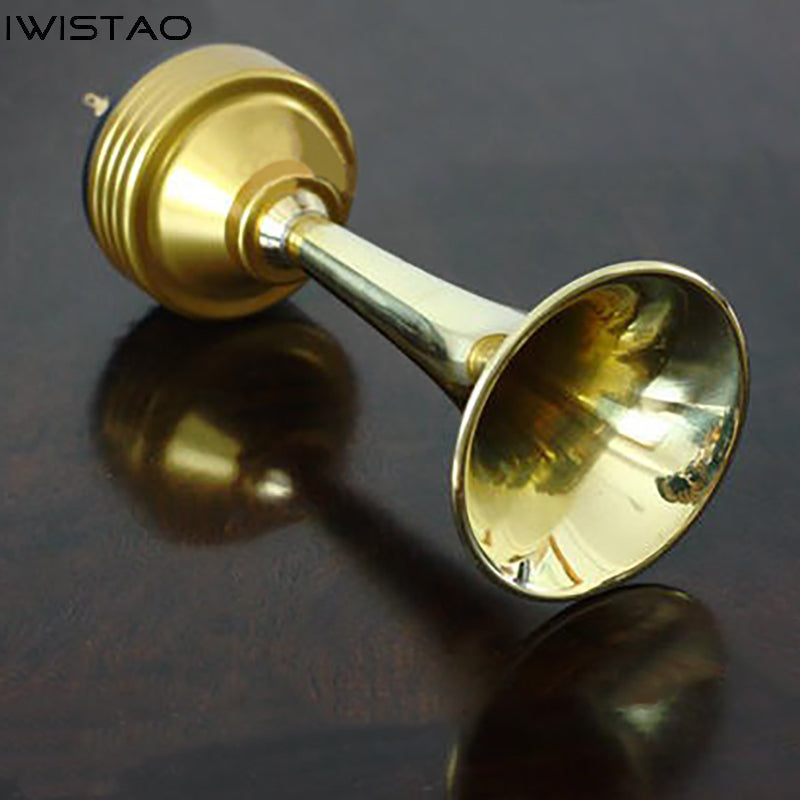

The 3 Inch super tweeter horn features a trumpet flower copper horn with a silk membrane film bullet driver. The entire horn mouth is made of stretched brass, forming a parabolic curve shape. The smooth and natural horn line of the parabolic curve ensures excellent sound field directivity. The horn treble excels in high-frequency response, capable of pushing a significant amount of air energy with even a slight diaphragm movement, resulting in long sound propagation. Due to the short movement distance of the diaphragm, the overall distortion rate is considerably lower.
The driver connecting seat is finely crafted from aluminum alloy and threaded to connect with the horn. Additionally, a pair of simple 15mm thick acrylic triangular bases are included, providing stable support for the thinnest part of the horn, enhancing the stability of the trumpet flower.
This trumpet boasts a simple structure and is suitable for full-range speakers and bookshelf speakers. We recommend using a single-ended Class A amplifier or a Class AB/Class A transistor amplifier with a power output of at least 20W.
Connection Requirements for Speakers:
As an entry-level trumpet flower, this model does not require complicated auxiliary support and is typically placed on top of the speaker. The connecting wire should originate from the speaker's position. Directly connecting the drive head's voice coil to the power amplifier signal can lead to overload and potential burnout.
Specifications
- Horn Diameter: 3 inches (78mm)
- Length: 200mm (including drive head)
- Rated Impedance (Nominal Impedance): 6Ω
- Rated Power (Nominal Power): 20W
- Sensitivity (1W, 1m): 91dB
- Frequency Range: 1.2kHz - 30kHz
- Weight: about 3.8kg
- Qty: 1 pair
Applications
The photos below only for you information
