IWISTAO 2X300W HIFI Stereo Discrete Component Power Amplifier Finish Board Differential Amplification Input WY2963/WK5688 Output

298 In stock

Finished PCBA Amplifier Board

To add this product to your wish list you must Sign In or Create an account

IWISTAO 2X300W HIFI Stereo Discrete Component Power Amplifier Finished Board High Power Differential Amplification Input WY2963/WK5688 Output   Model No:WHFTA-A686   This is a stereo high-power finished PCBA power amplifier board which is made of discrete components, and its maximum power is up to 300W+300W.   The input stage adopts...
$109.00
Click to refer to Shipping Rate
+
-
$109.00
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

IWISTAO 2X300W HIFI Stereo Discrete Component Power Amplifier Finished Board High Power Differential Amplification Input WY2963/WK5688 Output



Model No:WHFTA-A686

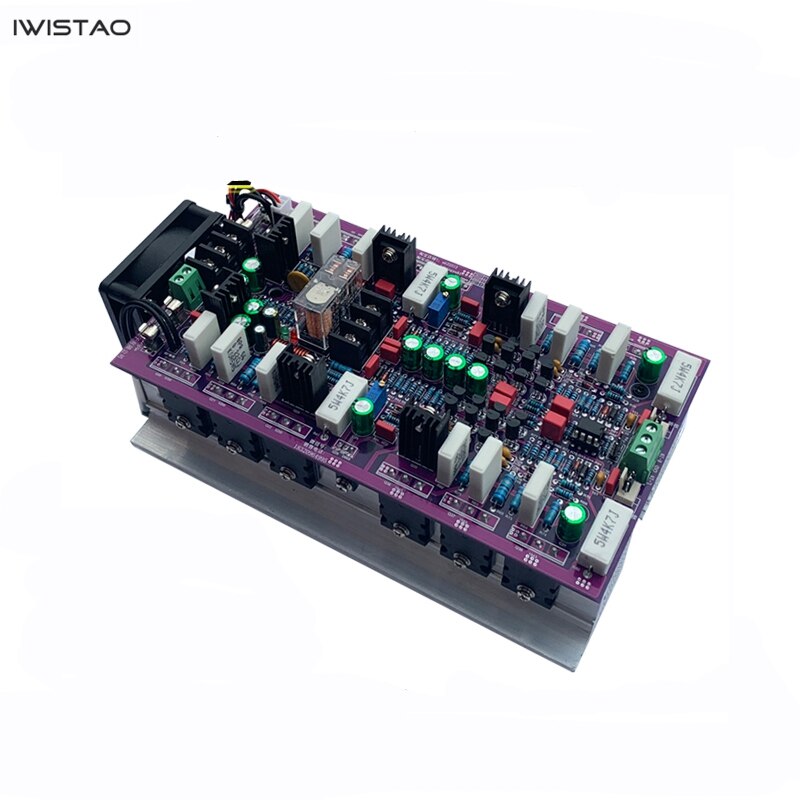

This is a stereo high-power finished PCBA power amplifier board which is made of discrete components, and its maximum power is up to 300W+300W.

WHFTA-A686(1)lWHFTA-A686(1)l1WHFTA-A686(1)l2WHFTA-A686(1)l2



The input stage adopts American power differential transistors and medium power one for differential amplification to make its sound pure and soft. The output stage adopts 6 pairs of US WY2963/WK5688 power pair transistors, and 2 pcs high-precision temperature compensation one with constant current amplification designing, let its sound is more beautiful and delicate and sweet; And, the protection circuit uses imported Omron relay; RC component uses high-precision fever components to ensure the consistency of the materials used in the whole unit.



Wire Connection

WHFTA-A686(1)l60

(Doesn't include the transformer and rectifier filter board, the photos only for you information)



Features

  1. Made with HIFI class components.
  2. Differential amplification input and constant current amplification technology ensure pure and soft sound.
  3. Equipped with high-power aluminum alloy fan and fan for heat dissipation, and convenient for fixed installation.
  4. Adopt 85 Celsius degree automatic overheat protection, double short circuit protection, and fan automatic shifting work.
  5. Equipped with speaker protection and delay protection circuit to protect valuable speakers.



Specifications

  1. Output power: 300W+300W
  2. Power amplifier board type: Class A and Class B
  3. Frequency response: 20Hz-148Khz
  4. Total harmonic distortion: < 0.01% (100W rms 4 ohms)
  5. Main supply voltage: double DC positive and negative 26-86V
  6. Protection power supply: AC 12V-18V
  7. Matching speakers: 6.5 -15 inchesspeaker unit
  8. Speaker impedance: 4-8 ohms
  9. Size (L*W*H): 230mm * 116mm* 83mm
  10. Weight: 3kg.



DIY Applications

WHFTA-A686(1)l1WHFTA-A686(1)l5WHFTA-A686(1)l8

WPCBA-RECFL01(A)_l1

WHFTA-A686(1)l7WHFTA-A686(1)l8



If you need the matched rectifier & filter board and the Toroidal Transformer, please click the link of the photo as below.



Rectifier & Filter Board

WPCBA-RECFL01(1)14



Toroidal Transformer

WHFTR-TT600W(1)l1
