HIFI Passive Crossover
IWISTAO 2 Way Independent Crossover Bass/Midrange Tweeter Crossovers 2pcs Board 2.6 3 4.5k Impedance 4-8 ohm HIFI Audio DIY
Model No: WHF-INCRMDTW

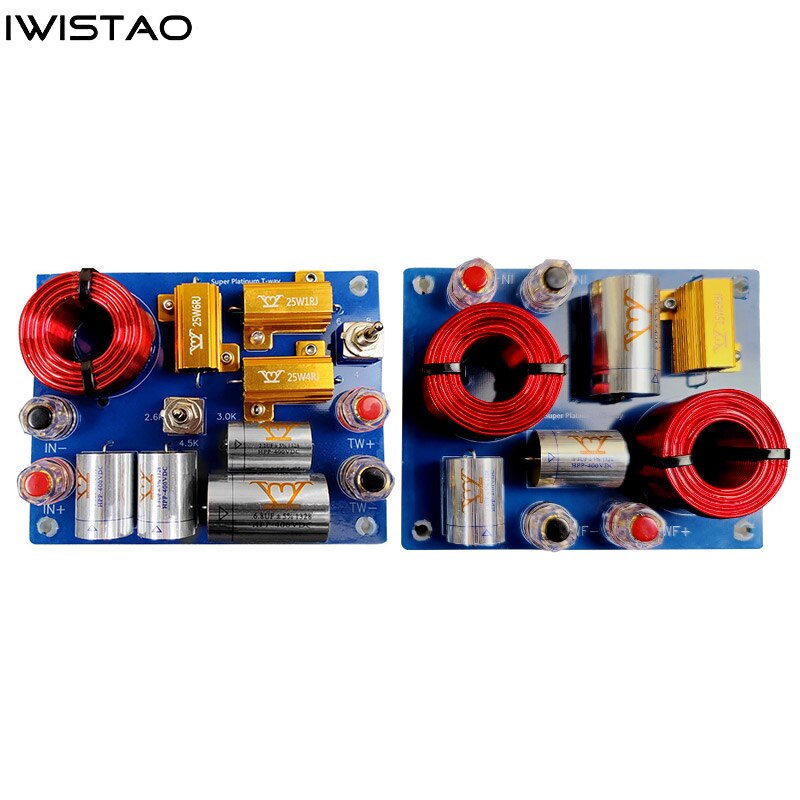

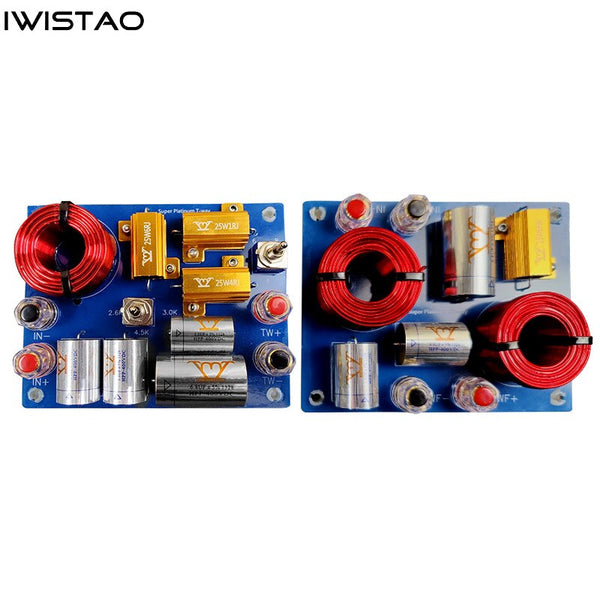

This is a HIFI 2 way crossover with independent designing for DIY your speaker cabinet, one is for bass/midrange unit, the other is for tweeter unit.
Its inductors mining is 6N copper wire wound with low resistance and low copper loss. Resistor adopt 25 W metal-sealed non-inductive resistance, which can fast heat dissipation, also high frequency capacitor all use HHP polypropylene film capacitor which is the advantage for high frequency loss angle is smaller and response speed is faster.
It is suitable for those 4 to 12 inch speaker cabinet.
1 set independent crossovers (1 pc tweeter + 1 pc bass/midrange)
Recommend to use 2.6k or 3k when it is used as 2 way crossover.
PS: 1 set crossover for 1pc HIFI 2-way speaker cabinet.
1. Maximum Power: 350W
2. Suitable impedance of speaker unit: 4-8 Ω
3. Filter characteristics: 18 dB / otc
4. Crossover point: 2.6K / 3KHz
5. Dimensions (L * W ): 120mm * 95mm
6. Net Weight: Tweeter: 0.3kg; Bass/midrange: 0.4kg
