IWSITAO 1pc Output Transformer 0-8-50-150-300-600ohm 2W 36H for Tube Head phone Amp Import Z11 Single-ended Silicon Steel EI HIFI DIY

985 In stock

Tube Amplifier Output Transformer

To add this product to your wish list you must Sign In or Create an account

1pc Output Transformer 0-50-150-300-600 ohm 2W 36H for Tube Headphone Amplifier Import Z11 Single-ended Silicon Steel   Model No: WHFOT-EA600   Specifications Power: 2W (20Hz) Frequency Response: 20Hz-65KHz, -3dB (6P14,6P1,6V6,4P1S standard connection) Frequency response: 10Hz-60KHz -2db (6P14,6P1,6V6,4P1S triode connected) Primary Impedance: 5K Primary copper resistance: 660 (B-P) Secondary: 0-8-50-150-300-600 Core Size:...
$31.89
+
-
$31.89
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

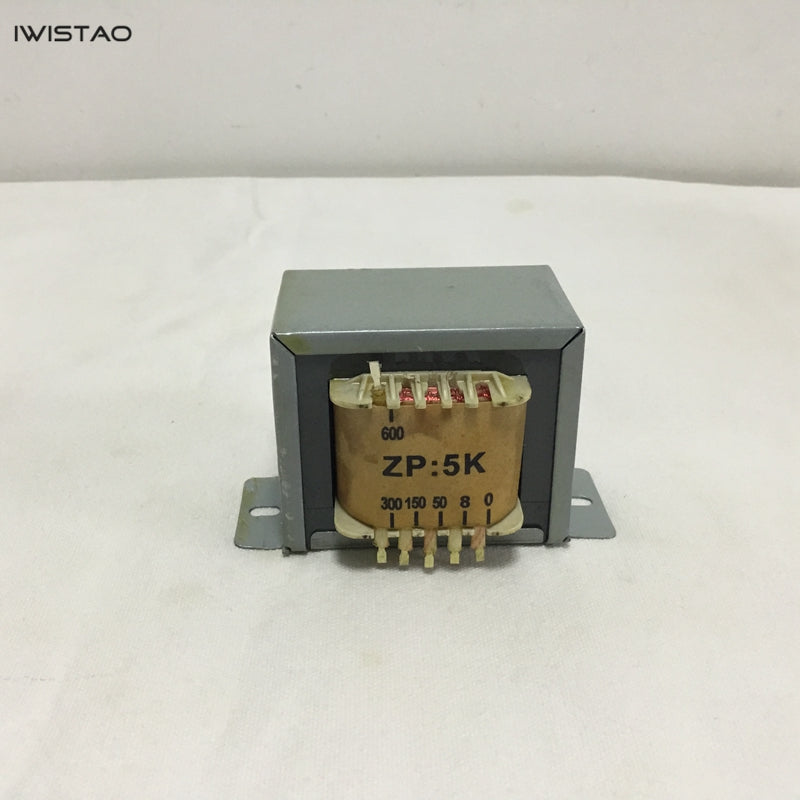

1pc Output Transformer 0-50-150-300-600 ohm 2W 36H for Tube Headphone Amplifier Import Z11 Single-ended Silicon Steel


Model No: WHFOT-EA600




Specifications

  1. Power: 2W (20Hz)

  2. Frequency Response: 20Hz-65KHz, -3dB (6P14,6P1,6V6,4P1S standard connection)

  3. Frequency response: 10Hz-60KHz -2db (6P14,6P1,6V6,4P1S triode connected)

  4. Primary Impedance: 5K

  5. Primary copper resistance: 660 (B-P)

  6. Secondary: 0-8-50-150-300-600

  7. Core Size: EI66 stack thickness 40mm

  8. Material: Japan imports Z11 chip

  9. Inductance: 36H (20Hz, 100MV, test equipment CHROMA3302-LCR)

  10. The primary maximum allowed DC current: 40mA. Recommended 32mA

  11. Centre distance of fix hole: 83mm

  12. Dimensions: Height 56mm, feet wide 86mm, Coil wide 70mm

  13. Weight: 1.2kg/pc
