HIFI Tube Amplifier 2X16W Push-pull with Switching Power 6F2 Preamp FU17 Stage Support USB DAC
10 In stock
Tube amplifierr
To add this product to your wish list you must Sign In or Create an account
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).
HIFI Tube Amplifier Mini Push-pull with Switching Power Supply 2X16W 6F2 Preamplifier FU17 Power Stage Support USB DAC 110~240V (Moddel No: WVTDSA-FU17)

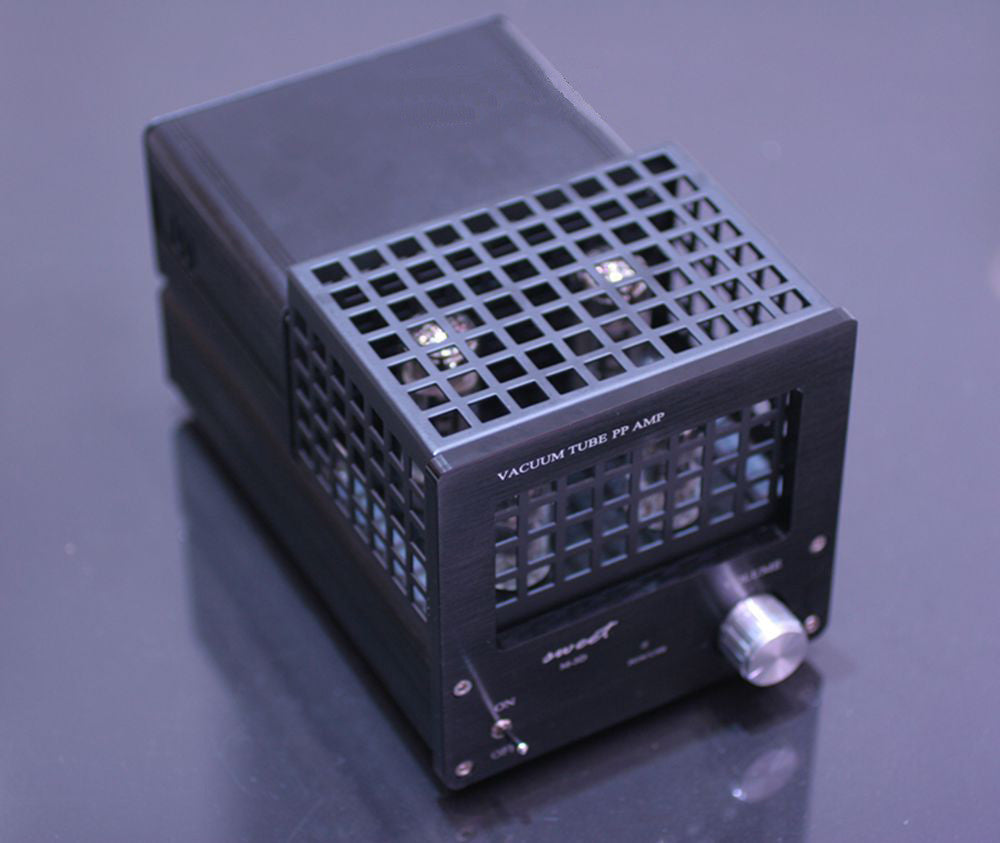

This is a tube amplifier with switching power supply, which adopted aluminum chassis designing, compact and simple, suitable for desktop hi-fi and home theater users. Used tube 6F2 as preamplifier, tube FU17 as power stage with push-pull circuit output that work with Class A and B, both sweet tube amp sounds, and bigger dynamic, stronger resolving power. Its output power is up to 2 X 16W. At the same time, it is built in DAC decoder, convenient external connection with a laptop, smart phone that must support OTG function.
And please use high quality signal audio cable to connect the amplifier, or play hifi audio sourcing like as CD, lossless signals (APE, FLCA, WVA) when the unit connect with signal sourcing via line-in, you will get high quality performance.
Specifications
1. Output Power: 2 X 16W
2. Signal Input: Line-in, USB (USB input priority)
3. USB part: DAC, support 16bit 48 KHz decoding
4. Frequency response: 20Hz-20 KHz (+ 0.5dB / -1dB)
5. Output Impedance: 4/8 ohms
6. Total harmonic distortion: 0.3% (1 kHz,5W)
7. Input Sensitivity: 0.3VRMS
8. Input impedance: 10K
9. SNR: 92dB
10. Tubes: 6F2 × 2 FU17 × 2
11. Operating voltage: 110 ~ 240V / 50 ~ 60HZ
12. Dimension (W * D * H): 125mm × 185mm × 120mm
13. Net Weight: 2.7Kg
14. Gross Weight: 3.5KG
15. Accessories:
Power cord x 1
3.5mm to 2 RCA audio cable x 1
Applications
