HIFI Tube Advanced Digital Decoder Remote Control with Headphone Amplifier GE5670 Black/Silver Panel

97 In stock

HIFI DAC

To add this product to your wish list you must Sign In or Create an account

HIFI Tube Advanced Digital Decoder Remote Control with Headphone Amplifier   Model No: WVDA-03A     It is a HIFI digital advanced decoder with vacuum tube output and headphone amplifier output, which adopt TI's top-amp chip TPA6120. Digital and digital to analog conversion adopt receiver CS8416 of CIRRUS, TI's PCM1794A...
$219.90 $199.90
Save $20.00
Click to refer to Shipping Rate
Type
+
-
$199.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

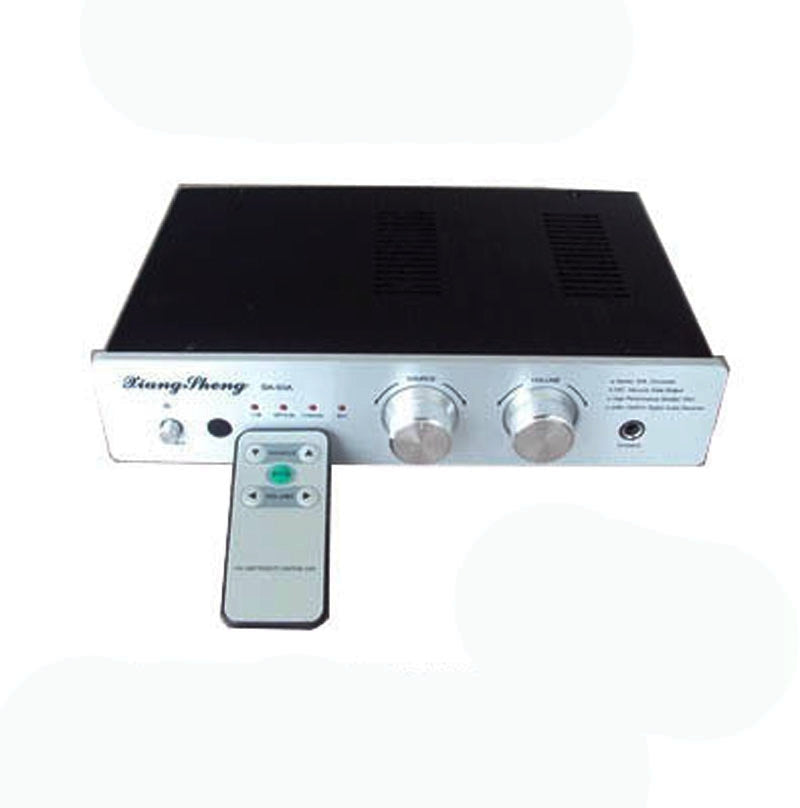

HIFI Tube Advanced Digital Decoder Remote Control with Headphone Amplifier



Model No: WVDA-03A



WVDA0-3A(1l)



It is a HIFI digital advanced decoder with vacuum tube output and headphone amplifier output, which adopt TI's top-amp chip TPA6120. Digital and digital to analog conversion adopt receiver CS8416 of CIRRUS, TI's PCM1794A and USB part is SA9027, and active crystal to reduce the USB port clock jitter.



The unit adopts U.S. tube of GE5670 with warm and mellow tone sound style. High voltage and filament are regulated DC power supply.



The decoder also has a remote control function to achieve channel switching, volume addition and subtraction, mute, etc., and has a memory function, the next boot automatically shut down when placed in the state. Customized self-reset switch and volume switch 360 degrees, feel good!



Custom miniature remote control handle, practical and lightweight.



In addition to the USB port supports 24bit, 96K, coaxial, fiber optic, BNC really support 24bit, 192K!



WVDA0-3A(IN1l)

WVDA0-3A(IN2l)

WVDA0-3A(USB1l)



Feature

1.    The unit has four digital signal input switching: BNC, coaxial, fiber optic, USB. And it has two unbalanced stereo RCA output: Normal output, tube buffer output. With convenient tube amp or transistor amplifier, you can get different effects.



2.    Main amplifier board with two layer designed, production of fine.



3.    The resistors and capacitors do not adopt SMD components, but are of high quality discrete HIFI component assembled, so the sound quality can be guaranteed. The unit uses a lot of HIFI components like as the light tone DALE metal film resistors, Germany WIMA polypropylene capacitors, Suren capacitor, CBB subminiature metalized polypropylene capacitors, monolithic capacitors. Never using of polyester, tiles and other common components. Thus ensuring pure sound, high resolving power, small bass, and a wide sound field and so on.



4.    Indicator with blue LED.



5.    Uses superior performance of R-type transformer power supply (generally only use high-end models only), although the cost ratio circular, square transformer greatly increased, but high efficiency, small magnetic leakage.



6.    Digital and analog part of the independent power regulator rectifier filter to reduce interference.



7.    Gold plating for the terminals of RCA analog inputs, RCA line outputs, plated coaxial ports, reduce the contact resistance.



WVDA0-3A(3l)WVDA0-3A(4l)WVDA0-3A(5l)





Product Specifications



1.    Headphone output power: 500mW-100mW

2.    Headphone Output Impedance: 32 - 600 Ohms

3.    Input Impedance: 75 ohms digital

4.    Frequency response: 20Hz-30KHz

5.    Output Level: 2000mV

6.    Dynamic range: 120dB

7.    S/N ratio: Normal port output: 110dB

             Tube port output: 90dB

8.    THD: General port output: <0.001%

           Tube port output: <0.1%

9.    Line Output impedance: 600 ohms

10. Supports 16bit, 20bit, 24bit digital stream

11. supports the following sampling frequencies: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192KHz

12. Decoding: PCM1794A

13. Receive: CS8416

14. Electronic Volume: CS3310

15. Headphone amplifier: OPA2604 + TPA6120

16. Input voltage: 110V-220V/50Hz

17. Panel color: Black or Silver

18. Dimensions (W*D*H): 260mm * 167mm * 55mm (excluding knob, machine feet, connector size)

19. Net Weight: about 1.75Kg

20. Package: multi-layer high-strength corrugated carton

21. Accessories:

Power cord x 1

Manual x 1





Note:

1.    The decoder input voltage is fixed 220V as the default when shipping, 110V voltage or require additional 110/220V voltage switch comes at the time of purchase, please specify.

2.    The decoder comes with volume control only controls the headphone output section, two line outputs without volume control decoder.

3.    The decoder output signal level is approximately 2000 mV, and desktop CD standard flat.





Applications:

WVDA0-3A(A1l1)
