HIFI Single-ended Class A Power Tube Amplifier Headphone Amplifier MCU Control PHONO/RCA Input Desktop 2X2.5W TUBE-P1

20 In stock

Tube Headphone Amplifier

To add this product to your wish list you must Sign In or Create an account

HIFI Single-ended Class A Power Tube Amplifier Headphone Amplifier MCU Control PHONO/RCA Input Desktop 2X2.5W TUBE-P1   This is a single-ended Class A tube amplifier with 6J1 driving 6P1. It is equipped with a headphone output and can be used as a tube headphone amplifier. You can connect headphones anytime...
$198.00
Panel Color
Silver Panel
Black Panel
+
-
$198.00
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

HIFI Single-ended Class A Power Tube Amplifier Headphone Amplifier MCU Control PHONO/RCA Input Desktop 2X2.5W TUBE-P1



This is a single-ended Class A tube amplifier with 6J1 driving 6P1. It is equipped with a headphone output and can be used as a tube headphone amplifier. You can connect headphones anytime and anywhere to enjoy pure music.

 HIFI Single-ended Class A Power Tube Amplifier Headphone Amplifier MCU Control PHONO/RCA Input Desktop 2X2.5W TUBE-P1

Features

  1. 6J1 drives 6P1
  2. Using DC single power supply
  3. Built-in MCU control
  4. Built-in Headphone amplifier output
  5. MM Phono and RCA input

HIFI Single-ended Class A Power Tube Amplifier Headphone Amplifier MCU Control PHONO/RCA Input Desktop 2X2.5W TUBE-P1

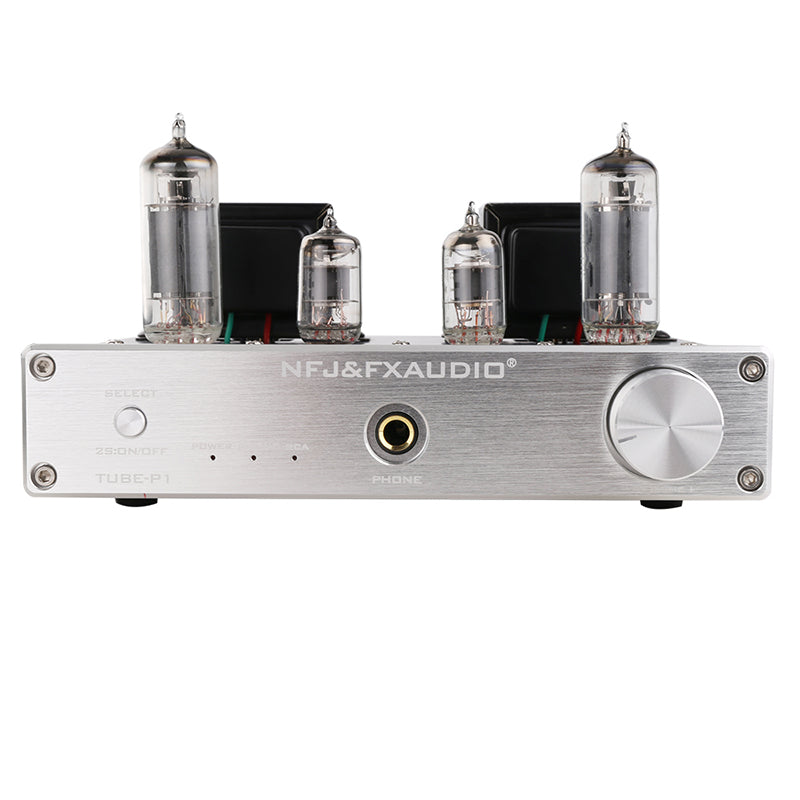

Instructions of the front panel

  1. Switch machine/SELECT: Long press the 2S button to switch the machine; short press the signal to switch. This machine enters the normal working state after being turned on for 1 minute.
  2. Indicator light: POWER, turn on and off instructions; PHONO, the light is on when the audio signal of the phono is connected; the light is on when the RCA and RCA audio signal is connected.
  3. Headphone output: 6.35mm headphone output interface
  4. Volume knob.



Back View

HIFI Single-ended Class A Power Tube Amplifier Headphone Amplifier MCU Control PHONO/RCA Input Desktop 2X2.5W TUBE-P1

Specifications:

  1. TUBE: 6J1 + 6P1
  2. Output Power of Amplifier: 2.5W + 2.5W
  3. Output Power of headphone amplifier
    1. 720mW @ 16Ω
    2. 785mW @ 32Ω
  4. Frequency Response: 20Hz-20Khz (±5dB)
  5. S/N Ratio: -95dB
  6. Interface Input: RCA, PHONO(MM)
  7. Interface Output:
    1. 35 Headphone (16-300Ω); Impedance (Speaker output): 4Ω/8Ω
  8. Operated: Button and Front Panel Volume Control
  9. Operation Voltage: AC110-240V/50-60Hz
  10. Power Supply: DC12V 4A
  11. Dimension(W*D*H): 184mm*158mm*34mm
  12. Weight: 2.4kg



Packing list:

TUBE-P1 Digital Amplifier x 1
12V4A Power Supply x 1
