IWISTAO HIFI Full Range Speaker Unit 4 inch NdFeB Magnetic 25W 4/8 ohm 78Hz-19.8Khz 88.5±dB

994 In stock

HIFI Speaker Unit

To add this product to your wish list you must Sign In or Create an account

IWISTAO HIFI Full Range Speaker Unit 4 inch NdFeB Strong Magnetic 25W 4/8 ohm 78Hz-19.8Khz 88.5dB ±3Db Double Cone Design   Model No:WHFSU-PE4I25   The 4-inch full range speaker unit uses a NdFeB strong magnetic. Its low-frequency density is very good, dynamically distinct, the high-frequency extension and air feel are...
$49.90
Click to refer to Shipping Rate
+
-
$49.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

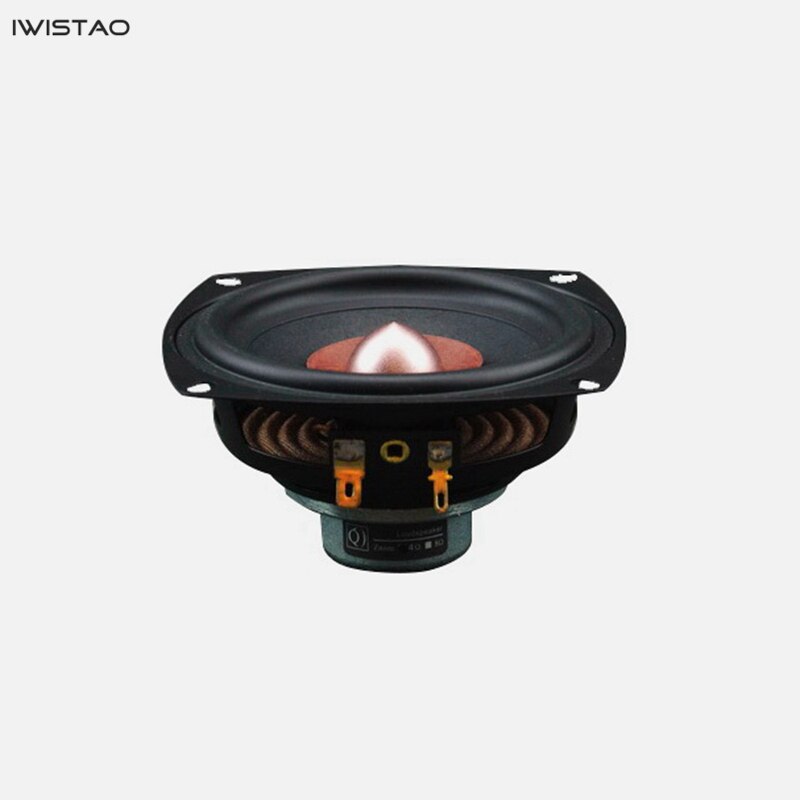

IWISTAO HIFI Full Range Speaker Unit 4 inch NdFeB Strong Magnetic 25W 4/8 ohm 78Hz-19.8Khz 88.5dB ±3Db Double Cone Design



Model No:WHFSU-PE4I25


The 4-inch full range speaker unit uses a NdFeB strong magnetic. Its low-frequency density is very good, dynamically distinct, the high-frequency extension and air feel are better, and the human voice is sweeter. This uit, first of all, is a magnetic circuit system, tombarthite NdFeB magnetic structure plus a short-circuiting copper sleeve, which solves the thoroughness of medium-high frequency from the starting point. But the selection of cone is more painstaking, cone is mainly composed of bass and medium-high sound. After various screenings, cotton and linen fiber is selected finally. And, the treble must be rigid and soft, then the bamboo plus bark fiber is selected. Through countless trials and adjustments, the effect finally conquered out ears. The final results are that its medium-high frequency density is very good, very thorough, and the background is clean.



Features
  1.  4 NdFeB strong magnetic unit.
  2. Adopt high grade N45 NdFeB magnetic circuit.
  3. Its outer cone is made of cotton and linen fiber, make sure midrange and bass is high fidelity.
  4. Its inner tweeter cone is made of bark fiber, and make sure treble is delicate and pleasing.
  5. Gold-plated wire terminals.



WHFSC-FR4MAC(u)5_l

Details

WHFSC-FR4MAC(u)-4_WHFSU-PE4I-25(1)_l

WHFSU-PE4I-25l_l1

WHFSC-FR4MAC(u2)11

Specifications

  1. Speaker unit diameter: 4 inch
  2. Power: 25W
  3. Impedance: 4 / 8 ohms
  4. Sensitivity: 88.5dB (±3dB)
  5. Frequency range: 78Hz-19.8Khz
  6. Resonant frequency: 78Hz
  7. Voice coil diameter: 25mm (ACCAW)
  8. Sound basin material: cotton fiber + bark fiber
  9. Vas: 7L
  10. Qts: 0.7
  11. BL: 1.99T
  12. MMS: 2.3g
  13. Voice coil skeleton: Kapton
  14. Linear displacement: 6.5mm
  15. Weight: 260g



WHFSU-PE4I-25l1WHFSC-FR4MAC(cv)_l
