HIFI Earphone Tube Amplifier with 12AT7 Tube TENOR TE7022L 24Bit USB DAC chip CS4398 DAC decoder TPA6120A2 Power amplifier Support 3.5mm and 6.35mm RCA output



Model No: WHFA-SG300

Features

1. Aluminum alloy case designed.

2. Adopt high quality 12AT7 tubes, its taste is sweet and delicate treble performance has charm, thick low-frequency sound, powerful low frequency, dynamic ability.

3. 24Bit USB DAC chip adopt high-quality professional integration chip of TENOR TE7022L, support the highest rate 96KHZ output, which is wide frequency response, high resolution. After I2S digital signal decoding transferred to the power amplifier by the high-frequency filter chip DAC, it can let background noise of transmission of digital of computer to a minimum level.

4. DAC decoder chip adopt CIRRUS LOGIC company's top digital / analog converter chip of CS4398 chip, it is up to 120dB signal to noise ratio and dynamic range parameters, providing a high level of audio resolving power, and supports up to 24Bit/192KHz perfect digital signal D / A demodulation

5. Earphone power amplifier chip is used the hottest TI TPA6120A2 currently, the chip has extremely low distortion and high speed conversion speed. Supports a variety of high and low impedance headphones

6. Feature of turn-on delay and shutdown relay quick disconnection avoid momentary switch circuit imbalance completely, causing the DC output impact your expensive earphones and speakers thus to extend their life, but also to avoid the harsh pop noise.

7. Support dual output of 3.5mm and 6.35mm earphone jack to be suitable different earphone.

8. Support RCA audio output as HIFI pre-amplifier.

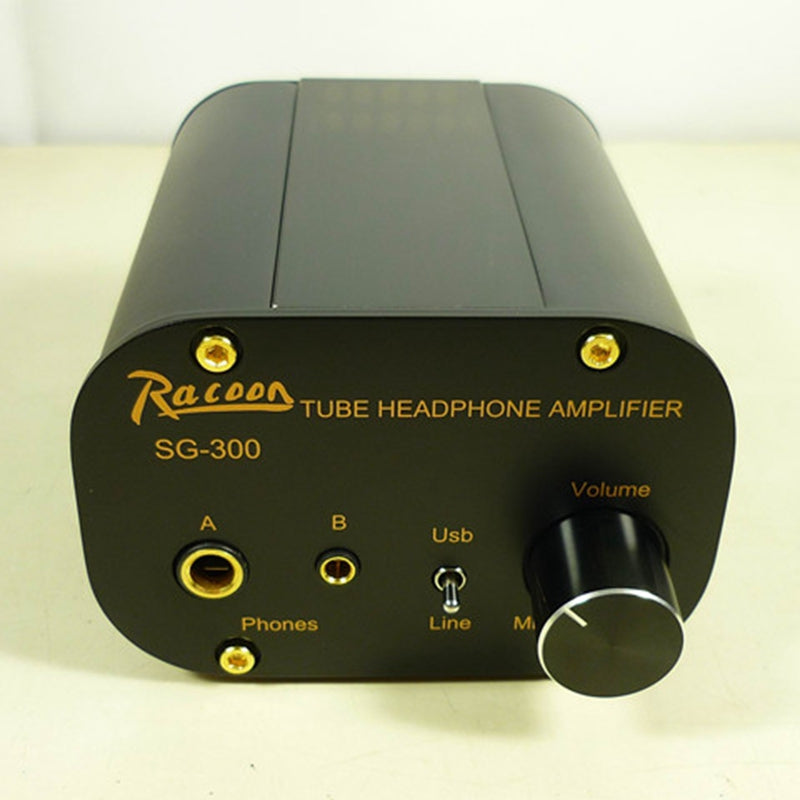

HIFI Earphone Tube Amplifier with 12AT7 Tube TENOR TE7022L 24Bit USB DAC chip CS4398 DAC decoder

HIFI Earphone Tube Amplifier with 12AT7 Tube TENOR TE7022L 24Bit USB DAC chip CS4398 DAC white

PCBA of tube earphone amplifier

Curve of output power and load impedance

 Curve

Product Specifications

  1. Input Z:Line Input 15KΩ
  2. Output Z:10Ω
  3. Line Input Sensitivity:400mV±50mV
  4. Frequency Response:
    • 9Hz-160KHz -3dB
    • 30Hz-30KHz 0dB
  5. SNR(Typical):>=90dB
  6. Inter-channel Crosstalk: > 55dB (1KHz)
  7. THD+N,1KHz:<0.06%,100mW into 8Ω
  8. SMPTE IMD: <0.06%,100mW into 8Ω
  9. Net Weight:0.5Kg
  10. Dimensions:L104mm * W92mm *H 62mm
  11. Power Adapter:

Input 1: 220v /50Hz

Output: 12VAC 1000mA,5.5*2.1 Power Jack

    11.  Usable Headphone Impedance Range:8-1000Ω

    12.  Accessories:

Power Adapter x 1

USB Audio Cable x 1

Manual x 1
