HIFI Digital Player Turntable Hardware Decoding ESS AK4495 Supports WAV APE FLAC MP3

39 In stock

HIFI Digtal Player

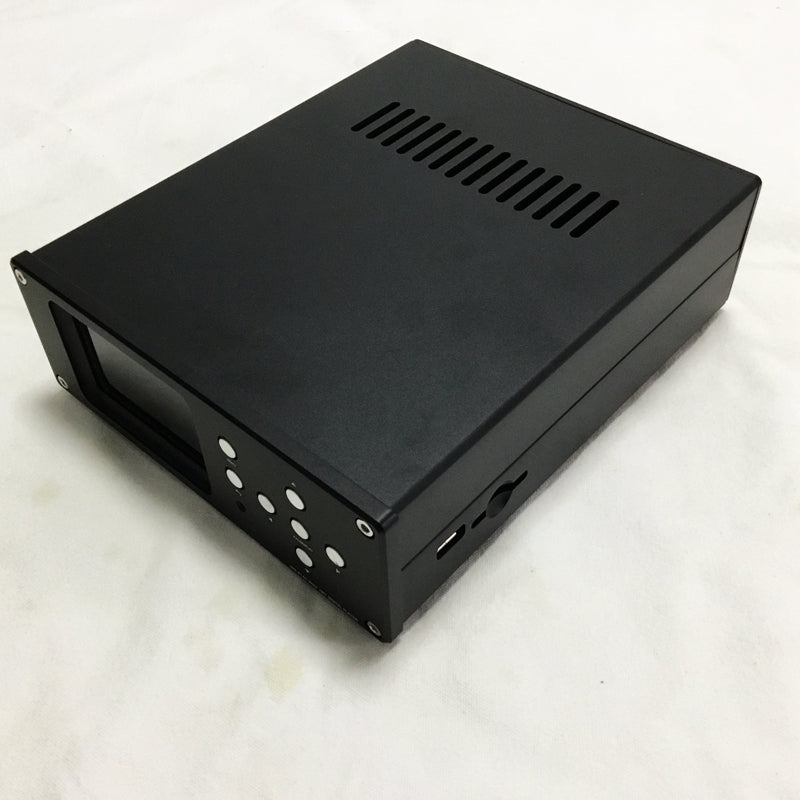

HIFI Digital Player Turntable Hardware Decoding ESS Main Chip AK4495 Supports WAV, APE, FLAC, MP3 Support 192K / 24BIT   Model No: WHFDP-AK4495   This digital player adopted the latest ESS main chip by American, which is a hardware decoding for mastering digital turntable player. Supports WAV, APE, FLAC, MP3...
$259.00 $229.00
Save $30.00
Click to refer to Shipping Rate
Type
+
-
$229.00
Wishlist

To add this product to your wish list you must Sign In or Create an account

HIFI Digital Player Turntable Hardware Decoding ESS Main Chip AK4495 Supports WAV, APE, FLAC, MP3 Support 192K / 24BIT


Model No: WHFDP-AK4495



This digital player adopted the latest ESS main chip by American, which is a hardware decoding for mastering digital turntable player. Supports WAV, APE, FLAC, MP3 format, its ultra-high speed core processing chip support to the 192K / 24BIT mastering format, analytical, detail restoring ability is excellent, relaxed nature, rich overtone, better than PCHIFI, its advantage of outputs are better than pure CD output. Its sound pure and details is better than similar products. For AK4495 have decoding output, there isn’t an external decoder.

 The video played under SD card, and only for you information.

HIFI Digital Player Turntable Hardware Decoding ESS Main Chip AK4495 Supports WAV APE FLAC MP3 Support 192K/24BIT Black from IWISTAO HIFI MINIMART2 on Vimeo.



Details







WHFDP-AK4495(2l)











Features

1.    Adopted the latest flagship top decoder chip AK4495, which is dynamic sound, broad field, excellent extending. Also AK4495 adopted 7.5V power supply firstly with the highest voltage power supply, in order to break through dynamic limitations of traditional 5V power output for DAC. Meanwhile AK4495 also has five kinds of optional built-in digital interpolation filter.

2.    Built-in JRC-end op amps MUS8820, full tone, voice very smooth with a tube taste, for better than OPA2604, LME4972 and others. MUSES8820 is an op amp with second circuit and J-FET input form, which is to be applied and developed for more "real voice" equipment and sound products.

3.    Using LM2941 ultra-precision regulator device, it has a much lower noise performance than conventional LM317, LM7805 and other three-terminal regulator.

4.    Using Nichikon's top-KG capacitors, German WIMA, Japan and other capacitance brown God, strive for perfection.

5.    RCA terminal output and coaxial output terminal used by US CMC-816 interface and very luxurious.

6.    Using oxygen-free copper 50W R-type transformer for power supply, low magnetic leakage, low noise, so that background noise better player.



WHFDP-AK4495(I1l)WHFDP-AK4495(I2l)WHFDP-AK4495(I3l)



WHFDP-AK4495(l)



WHFDP-AK4495(SD1l)

Details

WHFDP-AK4495(SDll)



WHFDP-AK4495(SD2l)



WHFDP-AK4495(CUEl)WHFDP-AK4495(DEMOl)WHFDP-AK4495(fl)WHFDP-AK4495(MP3l)



Specifications

1.    Whole aluminum chassis

2.    Support audio formats

a) WAV: 192K / 24BIT;

b) APE: 96K / 24BIT;

c) FLAC: 192K / 24BIT;

d) MP3: 44-48K / 16BIT (MP3 is the absence of 192K / 24BIT format)

3. Compression level support to: normal, normal player only supports fast, and now the future will continue to improve the firmware to support high compression.

4. Input: SD card , U disk

5. Output: coaxial digital output, RCA audio output, 3.5 headphone amplifier output.

6. 3.5 inch IPS wide viewing angle TFT LCD high-definition LCD screen

7. Support playing multi-level folder support CUE Play

8. Color: Black

9. Size (L * H * D): 192mm X 70mm X281mm

10. Weight: 2.5kg

11. Accessories:

Remote control contains a black (not worthy battery) x1

Power cord x 1.



Cautions:

1.    Because they support lossless playback, data traffic is heavy on the SD card and U disk speed there are certain requirements, SD card used for a long defragmented regularly. Try not to use the low-speed SD card, SD card bad areas on the disk like as CD disk incomplete, occasionally stop a little or cut song sonic boom, here please note.

2.    When play MP3, set the volume to 18 is appropriate (maximum is 25), when the volume is 1-22, the distortion is about 0.01% or less, because dynamic performance of MP3 is less than APE and WAV, distortion is greater than normal when the volume is greater than 25 . When playing APE, WAV, FLAC music, set to16-20 is ideally, distortion is far lower than the computer connections are DAC results.

3.    Volume control is only built with DAC for audio output, coaxial signal is non-adjustable when a fixed.

4.    The firmware will occasionally put a link to download automatically upgrade customers, as long as the firmware is into the SD card root directory, boot will be automatically upgraded, so software compatibility, sound quality, will be getting better.



Firmware upgraded method:

1.    Put firmware into the SD card root directory – power on -- the display will darken in the vicinity of 30 seconds by the light, or show the word DONE which mean the upgrade is complete, in the darkening process we should not shut down, otherwise the firmware will be returned for rewriting program.

2.    Remove the SD card when upgrade finished, delete firmware on SD card from the computer, otherwise it will be upgraded each boot to read and write files. Do not power off before shows the word DONE or before the display is not dimmed, otherwise the firmware cannot be written down again, and then the unit must be returned to factory for repair.



 Applications

IWISTAO HIFI Digital Player Turntable Hardware Decoding ESS Main Chip AK4495 Supports WAV APE FLAC MP3 192K/24BIT Black
