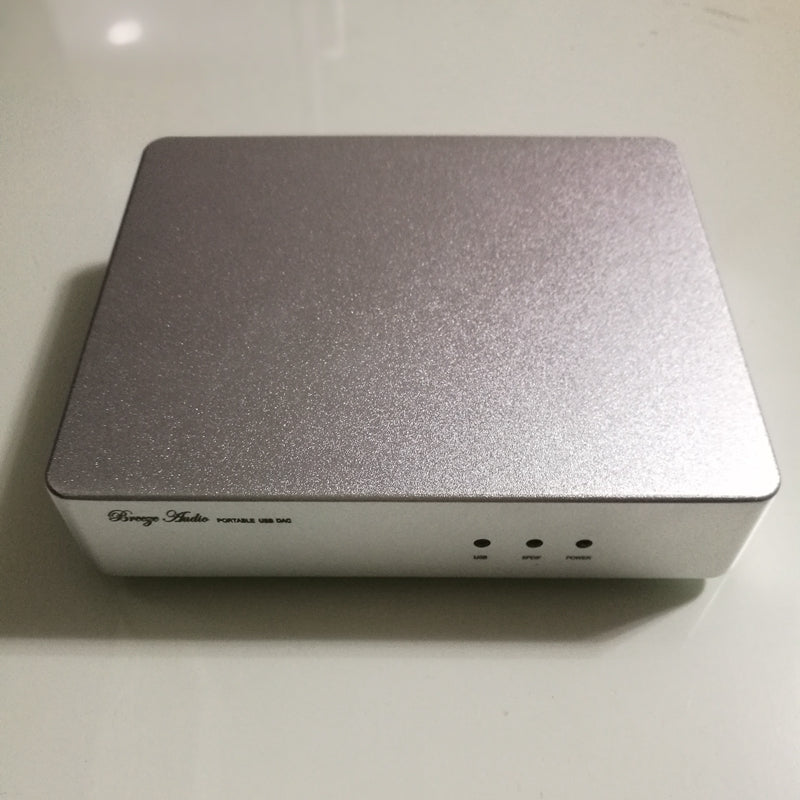

HIFI DAC Decoder PCM5102 XMOS Battery Power Supply Portable Support Fiber Coaxial 192KHz 24Bit USB 384KHz 32Bit
Model No: WDAC-PB02
It used a high-end DAC PCM5102, which is used by industrial famous company like as Royal British treasure and Masatoshi decoder. Its timbre is warm by contrast with Crystal CS4398, vocals and dynamic are better than the latter. With XMOS, it can play 384K 32Bit master file directly. As a whole battery power, it has pure power, natural tone and delicate, pristine. Sense of hearing is very comfortable and true. Because low power consumption, it can ensure continuous power supply machine more than 30 hours after full charged. Also you can connect the charger while charging use, it can be used in desktop or portable or car use.
There are two switches on the back, one is a power switch, the other is a switch for coaxial and fiber optic. USB choice is high priority, if it connects USB cable, directly to the USB channel gating.
1. Entire casing is made of five layers with 3D aluminum with cutting process.
2. German WIMA and Pana sonic capacitors.
3. The core is using of super-regulator chip LT1963,
4. Gold-plated RCA connectors
1. Fiber Coaxial Input Support: 192 KHz 24Bit
2. USB input support: 384 KHz 32Bit (XMOS sub-card)
3. SNR: > 112dB
4. Distortion: -93dB
5. Input voltage: DC5V to 12V
6. Dimension: 137mm X 115mm X30mm
7. Weight: 0.3Kg
Power charger x 1
