Full-band Full-mode SDR Radio Software radios Multi-function FM 3.5 Inches IPS LCD Screen Built-in 2500mAh Lithium Battery
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).
Full-band Full-mode SDR Radio Software radios Multi-function FM 3.5 Inches IPS LCD Screen Built-in 2500mAh Lithium Battery
Model No: WSDR-R001
SDR (Software Defined Radio) is a software-based radio technology that uses digital signal processing and computer software to receive and process radio signals. While traditional radios use fixed hardware circuits to receive and decode radio signals, SDR uses general-purpose hardware devices, such as computers or dedicated SDR receivers, and software to perform the tasks of signal processing and decoding.
The main advantage of SDR technology is its flexibility and configurability. Traditional radios require specially designed and manufactured hardware circuits for specific frequency ranges and modulation schemes. The SDR can adapt to different frequency ranges and modulation methods by changing the software configuration, so as to realize the flexibility of various radio applications, including radio broadcasting, amateur radio, radio communication, etc.

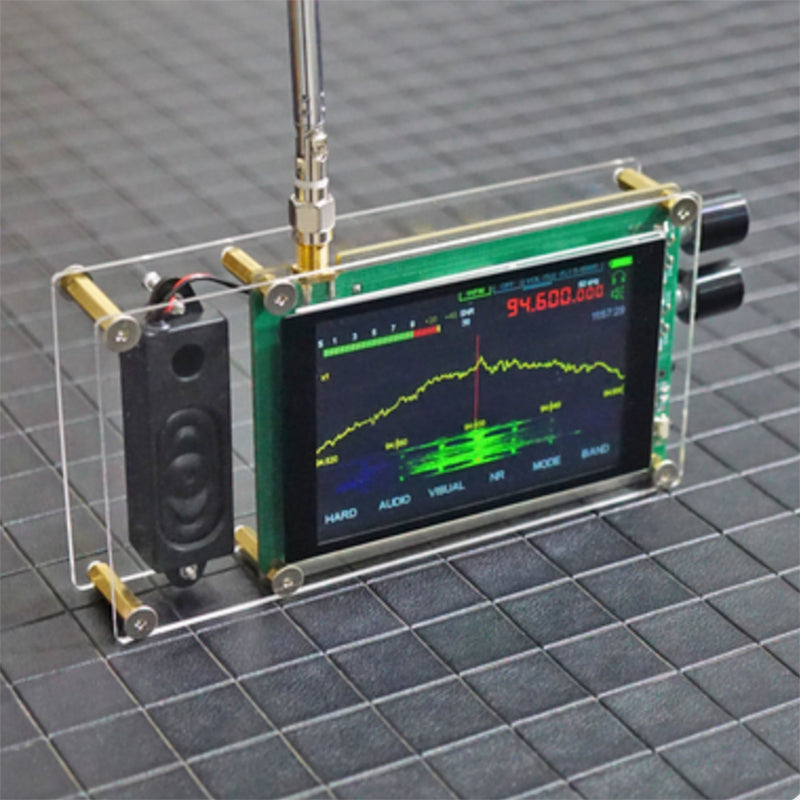

Transparent casing
Black casing
Functions Diagram
SDR radios can receive and decode signals of various modulation methods, such as amplitude modulation (AM), frequency modulation (FM), single sideband (SSB), etc. It can also provide high-quality audio output and allow users to adjust and process the received signal through the software interface, such as frequency selection, gain control, noise reduction, filtering, etc.
Another important advantage of SDR radios is their ability to perform digital signal processing. The signals received by traditional radios are processed by analog and output audio signals, while SDR can process and analyze the received signals at a higher level through digital signal processing. This enables the SDR radio to implement some advanced functions, such as signal identification, spectrum analysis, digital decoding, etc.
All in all, SDR radio is a radio receiving device implemented using software-defined technology, which has the advantages of flexibility, configurability and digital signal processing, and can receive and process various radio signals.
Specifications
1. Frequency range: 50KHz-250MHz and 400MHz-2GHz
2. Demodulation mode: AM/FM/SSB (AM/SSB/FM can receive analog intercom TV sound)
3. Professional features: adaptive noise suppression, threshold noise suppression, variable filter bandwidth, AGC, etc.
4. Display method: 3.5 inches IPS LCD screen (touch screen)
5. Power supply mode: USB-5V voltage, built-in 2500mAh lithium battery
6. Antenna type: SMA connector, 1 rod antenna with SMA connector is provided randomly
7. Casing options: Transparent / Black
8. Size(L*H*D): 137mmx70mmx25mm
9. Weight: about 190g
10. Accessories:
USB type C cable x 1
Rod antenna with SMA connector x 1
