Dedicated Switching Power Supply

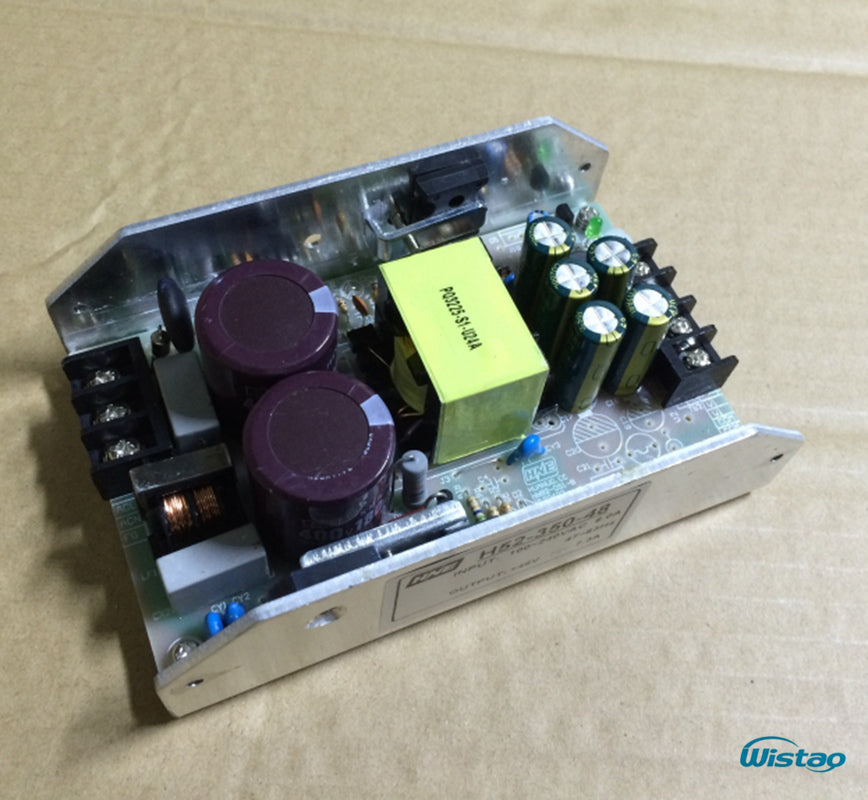

Dedicated Switching Power supply 350W 48V 7.3A for Digital Power Amplifier Ultra-low Ripple Interference
This switching power supply is designed for power amplifier; circuit board is made of single-sided half-glass plate (22F), aluminum shell, super heat-cooling effect, ultra-low ripple interference.
- Dimensions(mm): 127 * 82 * 38
- Weight: 300g
- Cooling: Natural cooling
- Output voltage: 48V
- Output current: 7.3A
- Output ripple: less than 150mV
- Total output power: 350W
- Output voltage adjustment range: 10%
- Line stability: ± 0.5%
- Load stability: ± 1%
- Input voltage: 88 ~ 264VAC
- Start, rise, hold time: 200ms, 50ms, 20ms input voltage 230VAC output full load
- Withstanding voltage: Input - Output 1.5KVAC; Input - Case 1.5KVAC; Output - Case: 500VAC
- Insulation resistance: input - output, input - shell 500VDC / 100MΩ
- Operating temperature, humidity: -20 C ~ 60 C, 20% ~ 90% RH Humidity No condensation
- Storage temperature: -40 C ~ 60 C
- Protection: over-current, over-power
- Safety standards: GB4943, UL60950, EN60950
