CSRA64215 Bluetooth 4.2 Module Board Support APT-X Stereo Audio I2S Output TWS Modules
Model No: WHFBM-64215S

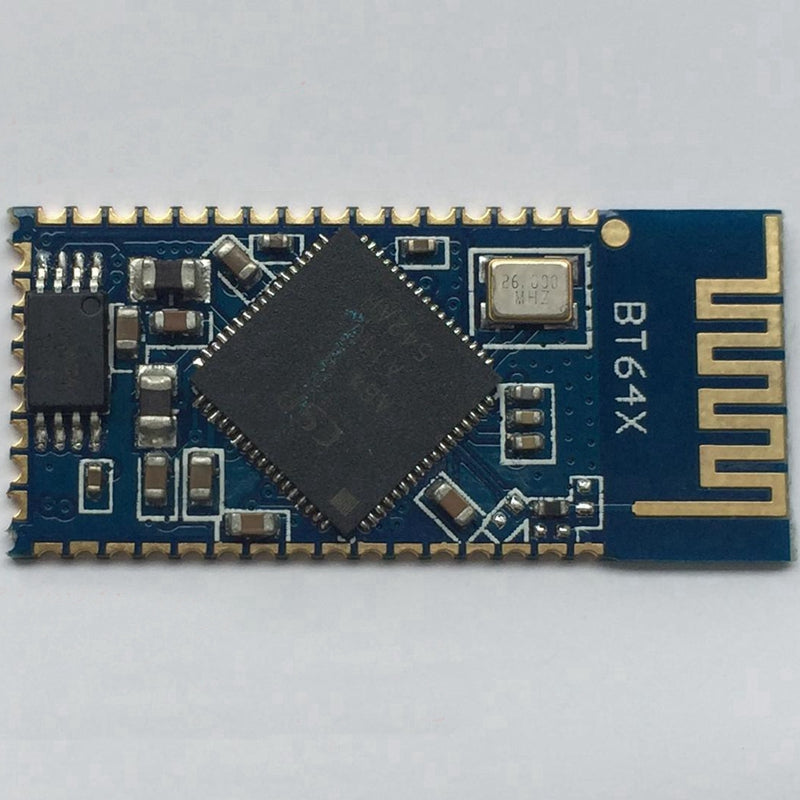

This is a Bluetooth module based on CSRA64215 chip, which integrates almost of the Bluetooth peripheral components, and optimizes the module's RF and audio performance; Bluetooth product design provides an easy-to-use solution. Mainly application in Bluetooth stereo applications, such as Bluetooth speakers, Bluetooth car kit, Bluetooth headset and so on.
1. Four-layer board to ensure the integrity of ground and power, good RF performance and electromagnetic performance; Gold immersion process PCB board to ensure that the reliability of patch welding, very low line impedance; onboard Bluetooth antenna.
2. Using Murata chip crystal, to ensure that the machine is always stable and RF stability.
3. Built-in 4M SPI-FLASH memory space, to ensure long-term stability of the work.
4. Using patch winding power inductors. Winding inductance has the advantage of low impedance, large saturation current, Q value is high, the current is large, where the inductance is the chip DC-DC energy storage inductance, its quality directly determines the stability of the whole power supply
1. High integration, cost-effective, low power consumption
2. Support A2DP, AVRCP, HSP, HFP and other protocol framework
3. Conforms to Bluetooth v4.2 specification
4. High replacement with Bluetooth module of our company, completely compatible with each other, no need to change the design of direct replacement
5. 3/5 key input (switch / pair / answer / hang up, play / pause, volume +, volume -, previous, next )
6. Using the built-in DSP chip can achieve echo cancellation, environmental noise cancellation, EQ adjustment sound and other functions
7. Built-in an antenna, good RF distance consistency
8. 4M SPI-FLASH
9. USB sound card function
10. AUX-IN input switching function
1. Mono Bluetooth headset
2. Mono Bluetooth speakers
3. Bluetooth Car Handsfree
4. TWS speakers
If you need detailed module information, reference application, please contact us.
1. we provide you some items and components for your DIY. If you have enough capablities for circuit-reading, electronical components knowledge, assembling, soldering and problem-solving, you can buy them to enjoy DIY. If not, please don't buy them. We only provide limit technology support in this individial items itself.
2. Bluetooth module for static and leakage are very sensitive, please be sure to use constant temperature soldering iron, and to ensure reliable grounding
2pcs x CSRA64215 Bluetooth 4.2 Module Board
