Mark HIFI 3.5 Inch Full Range Speaker Unit 1 Pair Metal Cone 4 Ohms 15-30W 60Hz-20KH



Model No: WHFRS-MK35

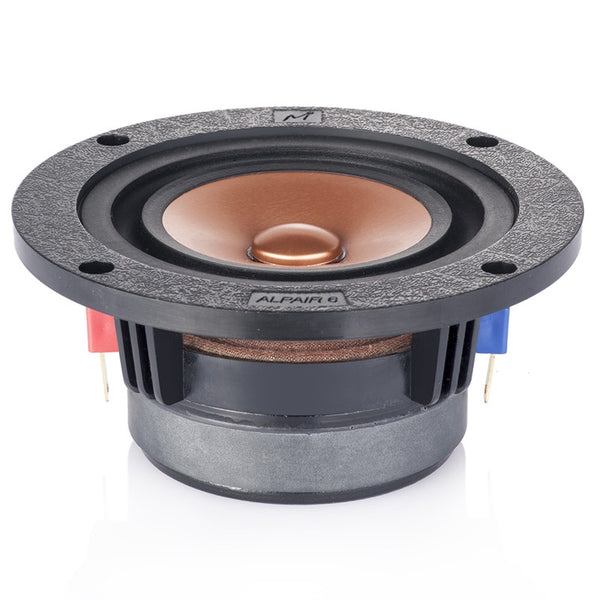

The Alpair6M second-generation full-range speaker is a speaker that is very suitable for small-size speakers. The cabinet can have a minimum volume of 3.3 liters. For example, speakers that are used with mobile phones, desktop speakers or speakers used in the near field can perform well. This speaker has a very good low-frequency capability. Japanese customers have tested it and compared the well-known 3.5-inch woofer on the Japanese market. As a result, the Alpair6M of Mark Audio has better bass and can easily interpret bass tracks. Please remember that this is a full-range speaker, but its bass is better than that of a woofer.

It can be easily competent for CD music and even high compression MP3 music. The power amplifier selection can be matched with tube amplifiers or transistor power amplifiers. Class D digital power amplifiers can be matched. Users will evaluate the effect of tube amplifiers, and tube amplifier is better, such as the tube EL34, 300B, 6V6, 2A3, etc.

The second generation Alpair6M inherited the good musical performance of this series of units. In order to obtain clearer and natural vocal performance at lower or middle and low frequencies, the diaphragm of the key component of the horn is designed to be formed by multiple molds instead of a simple one-time forming. This increases the cost a lot but can get richer vocals and good bass effects. Diaphragm formed multiple times can also better show the delicate high frequency in front of you.


Features


1. Adopted the new Conex elastic wave design, which ensures good elastic support of the speaker.
2. The lighter-weight long-coil voice coil design enables the speaker to maintain Mark’s consistently good low-frequency response
3. Speaker frame is added with some high molecular polymers, so the hardness is increased by 10% compared with the first generation. This can ensure good rigidity and can effectively absorb the resonance sound of the speaker itself and the frame at low frequencies. Reasons for using plastic frame.
4. Pure copper gold-plated soldering piece. Spread music well without distortion.
5. The soldering piece can be removed with separate solder, and then can be easily assembled back, to avoid the inconvenience or burns caused by soldering on the speaker for a long time.
6. Pure copper gold-plated pluggable solder lugs, original mark unit, excellent performance, convenient welding. When using, first solder on the pluggable solder lugs, confirm the welding is firm, and then connect with the matching fixing parts and speakers.

Testing Curves (Just for your information)


Specifications


1. Size: 3.5 inches,
2. Impedance: 4 ohms,
3. Power: 15W-30W
4. Frequency range: 60Hz-20KHz
5. Sound pressure (SPL): 86dB


The official recommendation is the inverted cabinet drawing, with a volume of 3.3 liters and a plate thickness of 15mm or more.
