IWISTAO HIFI 2 Ways 4~6 Inches Empty Cabinet Kits 1 Pair MDF Labyrinth Structure
20 In stock
Empty Wooden Cabinets
To add this product to your wish list you must Sign In or Create an account
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).
IWISTAO HIFI 2 Ways 4~6 Inches Empty Cabinet Kits 1 Pair MDF Labyrinth Structure for Tube Amplifier
Please note that its lead time is about 2 weeks after the payment verified.
Model No: JP2WLIBY4T6EC-11/12/13
This speaker cabinet is made of MDF or you may select solid wood for 2 side plate and front panel.
Built-in a labyrinth structure, it can enhance the low-frequency radiant energy, make low-frequency dive deeper, effectively overcoming insufficient bass of commend full range speaker cabinet, make the speaker cabinet the full-frequency be more full and rich with 2 ways speaker units. We added a tweeter into the cabinet to compensate the high frequency.
As you know, the greater the material density of the speaker enclosure, the less the vibration produced by the enclosure. Solid wood is more reflective of sound than other materials, and tightness of the wood is higher, and the sound can be effectively expressed by the vibration of the air inside the box. We often say that the sound of wooden speakers is warm, in fact, the word warm means the balance of tri-band that are low, medium and high frequency; if the frequency is too low or too high, it will make people feel uncomfortable. The advantage of wooden speaker is that its playback effect is good, the vibration of the sound inside the box is stable, and the sound effect will be balanced and full.

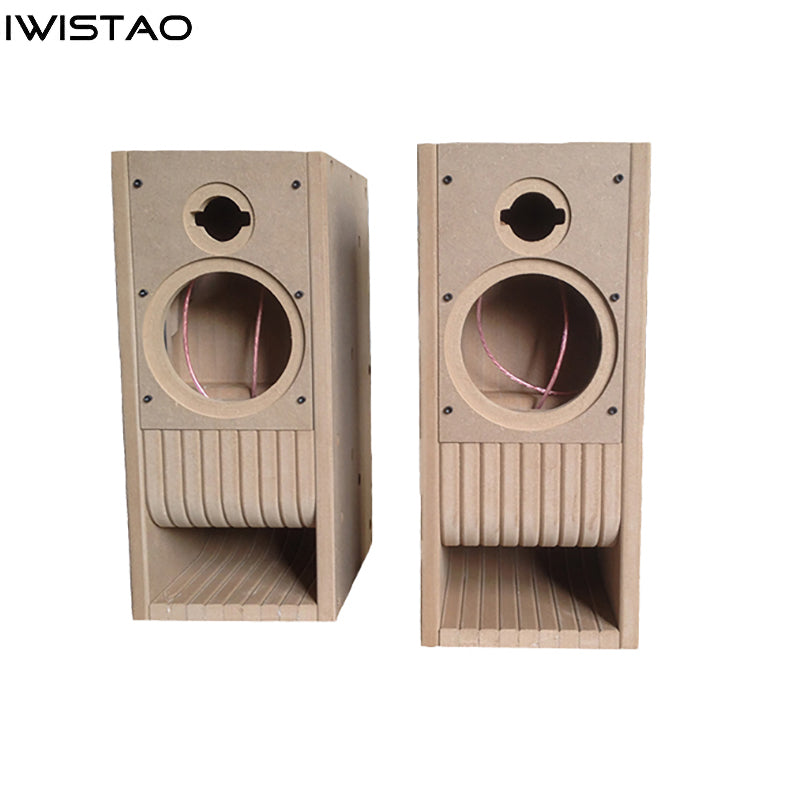

(Assembled Empty Cabinet with MDF Board，no including the speaker units)
Solid wood for 2 side plate and front panel
(The photos below are for full range speaker unit, just only for you information)
(Assembled Empty Cabinet with solid wood side and front panel)
Models vs Size
|Model No||Size(H*W*D, mm)||Weight(KG)||Recommend Driver(INCH)|
- Solid wood structure, full of sound quality, warm, three-stage balance. strong bass by labyrinth structure.
- he interior of the cabinet is filled with high-quality sound-absorbing cotton, which can absorb the sound waves radiated by the speaker unit and reduce the refraction and reflection of the sound wave dance. Eliminate the confusion and ambiguity of the sound.
- You may select the speaker driver unit according to its diameter.
JP2WLIBY4T6-09 for 3 inches full range unit or bass
JP2WLIBY4T6-10 for 3 to 4 inches full range unit or bass
JP2WLIBY4T6-11 for 4 to 5 inches full range unit or bass
JP2WLIBY4T6-12 for 5 to 6 inches full range unit or bass
JP2WLIBY4T6-13 for 6 to 6.5 inches full range unit or bass
Empty Cabinet Kits with MDF Board --- please select "JP2WLIBY4T6-11/12/13"
Assembled Empty Cabinet with MDF Board --- please select "JP2WLIBY4T6-11A/12A/13A"
Assembled Empty Cabinet with solid wood side and front panel --- please select "JP2WLIBY4T6-11AU/12AU/13AU"
1. Material: 15mm MDF
2. Quantities: 1 pair
3. Dimension: see the table
4. Weight: see the table
5. Dimension: The buyer provides the detailed size of the speaker unit. The default through hole as below is drilled if the detailed size of the speaker unit aren't provided.
1). JP2WLIBY4T6-09, the panels of 3 inch speaker unit default hole is a through hole as diameter 72mm
2). JP2WLIBY4T6-10, the panels of 3~ 4 inch speaker unit default hole is a through hole as diameter 94mm
3). JP2WLIBY4T6-11, the panels of 4~5 inch speaker unit default hole is a through hole as diameter 110mm
4). JP2WLIBY4T6-12, the panels of 5~6 inch speaker unit default hole is a through hole as diameter 122mm
5). JP2WLIBY4T6-13, the panels of 6~ 6.5 inch speaker unit default hole is a through hole as diameter 144mm
If you need to customize the opening, please leave a message and send us your speaker unit's drawing (bass and tweeter). Otherwise, we will drill the holes in the front panel as default.
Natural wood will have natural defects such as crusting and texture; there will be color difference in the plate. Hand-made and back-light may use slight scratch marks. If you are a perfectionist, please do not buy it. The pictures are for reference only and are subject to the actual product.
(Don't include the speaker unit, the photo only for you information )
WHFSC-JPFRLIBY4T6-11 for Mark 4 inches Speaker unit
WHFSC-JPFRLIBY4T6-12 for Fostex 4 inches speaker unit
