BNC Connector 2pcs/lot NBNC75BLP9 NEUTRIK Digital high-definition HD-SDI 75-4 BNC Q9 Cable Plug HIFI DIY

198 In stock

HIFI Audio Accessories

To add this product to your wish list you must Sign In or Create an account

BNC Connector 2pcs/lot NEUTRIK NBNC75BLP9 Digital high-definition HD-SDI 75-4 BNC Q9 Cable Plug HIFI DIY Model No: WHFCN-BNC01     Name: digital high-definition 75-ohm BNC connector   Brand: NEUTRIK   Model: NBNC75BLP9   Origin: Liechtenstein   Product Description:   rearTWIST BNC cable connector suitable diameter of 4 - 8 mm cable....
$17.85 $15.85
Save $2.00
Click to refer to Shipping Rate
+
-
$15.85
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

BNC Connector 2pcs/lot NEUTRIK NBNC75BLP9 Digital high-definition HD-SDI 75-4 BNC Q9 Cable Plug HIFI DIY

Model No: WHFCN-BNC01

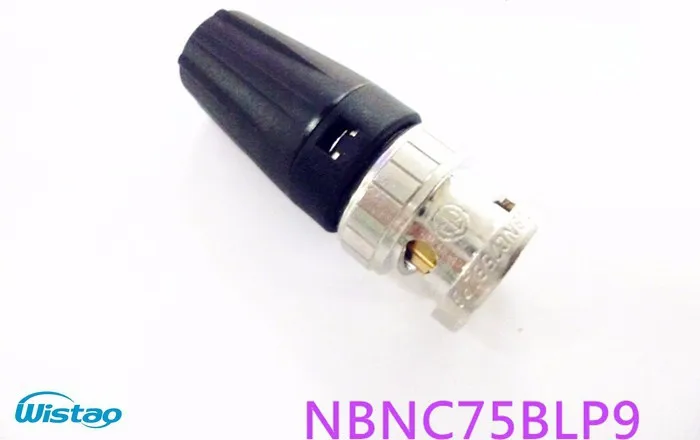

WHFCN-BNC01(3l)

Name: digital high-definition 75-ohm BNC connector



Brand: NEUTRIK



Model: NBNC75BLP9



Origin: Liechtenstein



Product Description:



rearTWIST BNC cable connector suitable diameter of 4 - 8 mm cable. It provides true 75 design and perfect high-definition. After Patented rearTWIST guard to ensure that even high-density applications facilitate operation and provide a color mark.



Applicable cable:



Argosy Image 720, Belden 1505A (ANH), Belden 8241F, Canare L-4CFB, CommScope 5565, Draka 0.8 / 3.7 AF, 755-801 Draka, Draka 755-803, Terre cards 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, 600-0451 Sommer, Sommer 600-162 (F)



Crimp Size:



Pin: 1.6 mm (square)



Shield: 6.47 mm (hex)



Features and Performance

1. "rearTWIST principle" Locking / non-locking feasible using convenience soft shield (Patent No. DE 100 48507)

2. Groove partitions, connecting connector "head" is often a problem, this product provides the ideal solution. The connector from the rear rather than the front-end access

3. The true 75 design meets the stringent HDTV / DVD requirements

The leading areas: avoiding tilted from side to bring pressure to prevent the pin deformation. Ensure that at least 1000 times the life cycle of the installation!

5. Slide the inner core to provide tactile feedback

6. Shielding and sheathing crimping technology eliminates cable installation caused the grounding braid burst situation

7. Excellent cable protection and retention

8. Swiss-made precision brass components to achieve superior durability

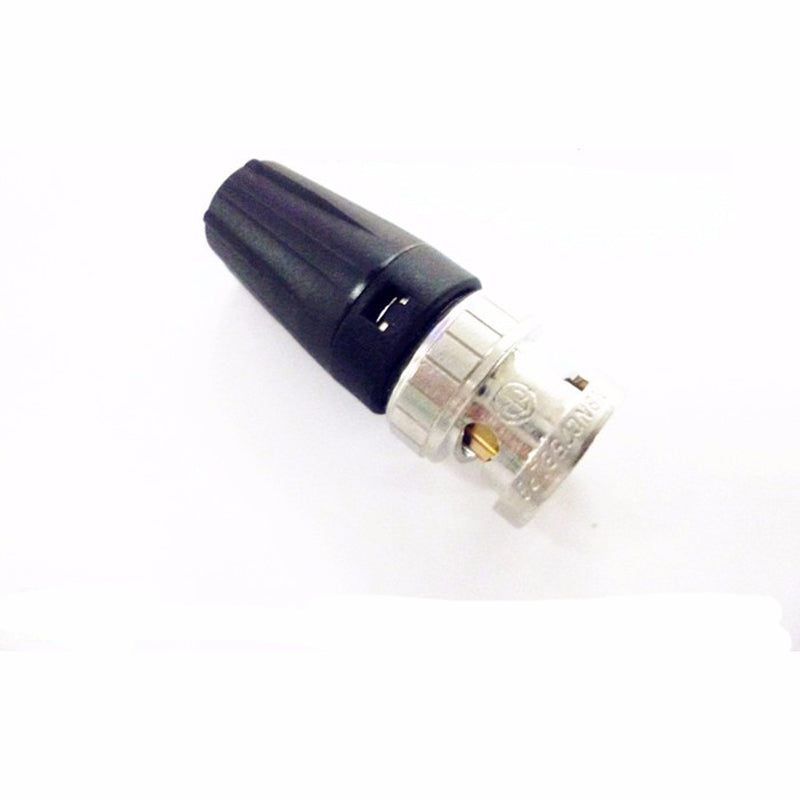

WHFCN-BNC01



WHFCN-BNC01(1l)WHFCN-BNC01(2l)



WHFCN-BNC01(4l)
