Bluetooth Tube Amplifier

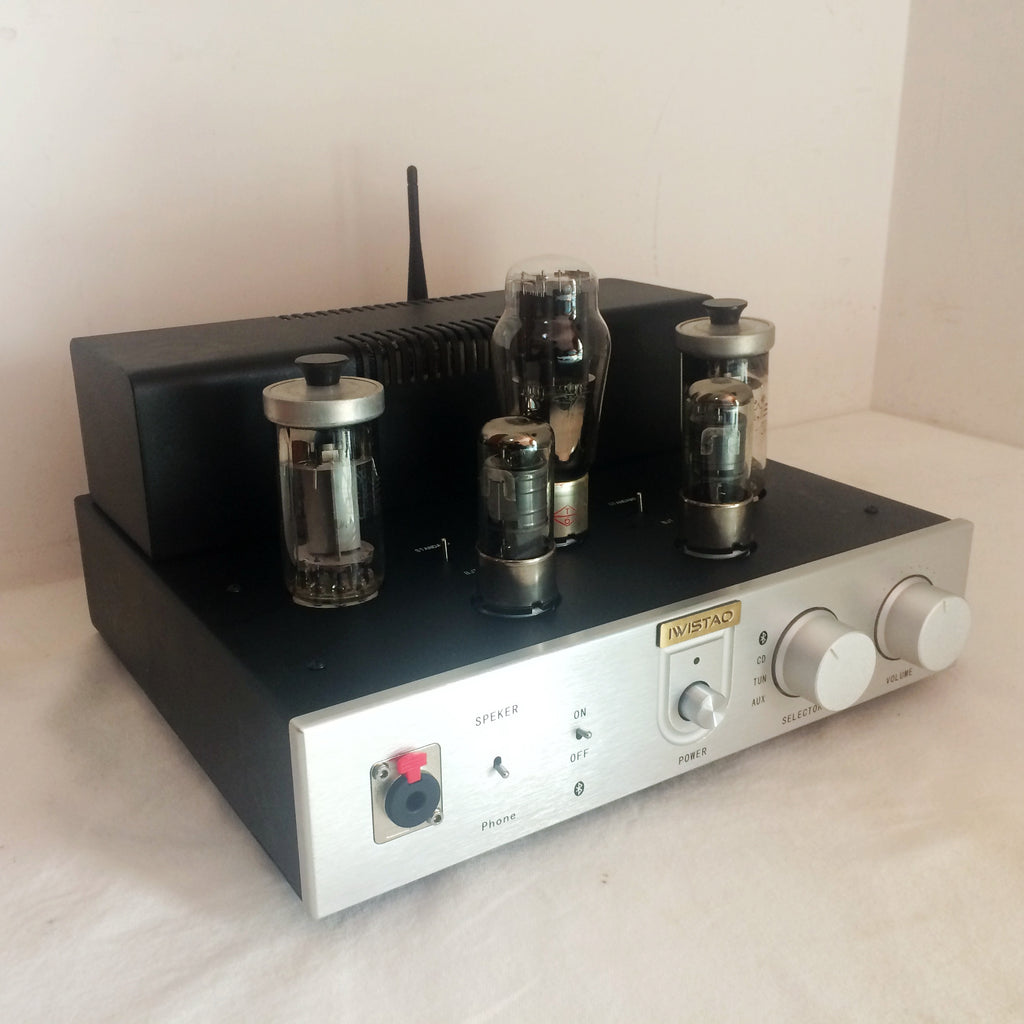

IWISTAO Bluetooth 4.0 Tube Amplifier FU50 Power Stage Class A Signal-ended Headphone Amp HIFI Audio 2x13W 6J8P Pre-amplifier 5Z4P Rectifier
Model No: WVTRY-FU50
The amplifier support Bluetooth 4.0 technology, you can connect it with your Bluetooth enabled devices to play music .
1. Tube 5Z3P as rectification, which can extend the life of the power tubes FU50 when effectively the rectifier buffer added to high voltage due to maximum withstand voltage of 800V of FU50
2. With four sources for relay switching, user-friendly, no longer swap signal cables as multiple sources frequently.
3. Preamp tubes adopt tube 6J8P for FU50 voltage gain; let the sound tube taste thicker, superior performance played.
4. Output transformer adopt high-quality Japanese annealed steel Z11 chips, thick oxygen-free copper enameled wire wound, compatible with 4 ohms and 8 ohms impedance output; power transformer adopt annealing silicon steal chips for efficient, high efficiency, small heat.
5. Internal high voltage filter capacitor adopt original Sam sung, capacitive coupling capacitors are used HIFI grade one to ensure that the super good quality!
6. Gold-plated crystal terminals, reducing the contact resistance; high-end stainless steel illuminated power switch.
7. The unit adopts standard triode and standard connection. The sound is similar with tube 300B, it is also known as the small 300B, mellow sound and not tired it for a long time when listening, low-frequency elastic and penetration, transparency of the human voice is very high.
8. With a headphone amplifier output jack.
How to fix FU50 tubes to the amplifier
Please fix tubes FU50 as photos showed below. Don't fix them the wrong positions, otherwise the tube will be damaged.
(This photo as reference only above)
1. Rated output power: 12W × 2
2. Frequency Response: 20Hz - 25KHz
3. Total harmonic distortion: <1% (1kHz)
4. Input Sensitivity: 500mV - 2000mV
5. Input impedance: 100KΩ
6. Output impedance: 4Ω, 8Ω
7. SNR: > 89dB
8. Dimensions (W × H × D):320 × 60 × 280mm
9. Weight: 13.8Kg
6J8P × 2
5Z3P x 1
FU50 × 2
Power cord x 1
multi-layer high-strength corrugated carton and foam plastic inside
