Passive Preamplifier Audio Signal Boosting Transformer for Smartphone PC CD Player MC Phono Sound Quality Enhancer HIFI
48 In stock
HIFI Tube Preamplifier
To add this product to your wish list you must Sign In or Create an account
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

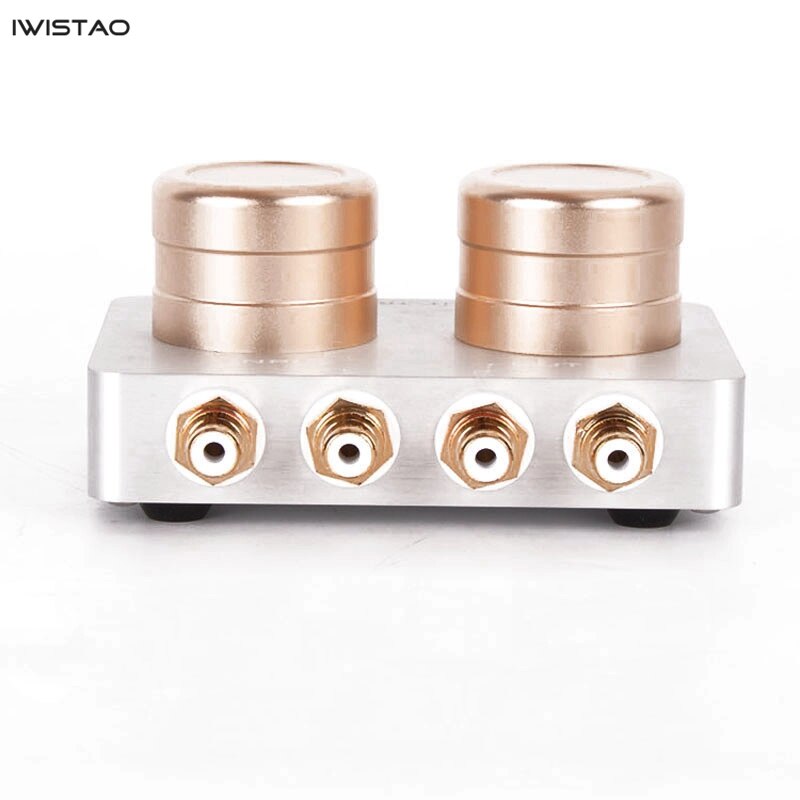

Passive Preamplifier Audio Signal Amplification Boosting Transformer for Smartphone Computer CD Player MC Phono Sound Quality Enhancer
Model No: WHFTR-BV04
There are 3 versions as below.
1. 300Ω+300Ω: 2400Ω for smartphone /PC / TV Player (1 to 2)
2. 600Ω:2400Ω for CD Player (1 to 1)
3. 125Ω:47KΩ for MC Phono (1 to 20)
When you use your mobile phone or computer to listen to music, you will find that the sound is small, the details are small, and the dynamic is thin, their sound quality aren’t full and pleasant like as CD player, decoder. This is because the output value of mobile phone and computer is 0.2-0.5V audio voltage only, while the existing power amplifier is generally designed with an input voltage of 0.75-1.2V. This intermediate voltage difference requires a 2x amplification boost value. Now the 1:2 signal boosting transformer solves this disadvantage.
1:2 signal boosting transformer, balance transformer, and inverter transformer, that is a passive boosting transformer developed to compensate for low signal output of computers and mobile audio sources in the existing market.
Make the ordinary sound source close to the effect of CD player signal one. And, if CD player connected the signal boosting transformer to power amplifier, its sound will be even more powerful. After the audio signal pass the boosting transformer and amplify, it will output a stable impedance, it will lead to its signal transmission is fidelity, and its sound field positioning is better!
Also, you can select 1 to 20 for your Moving Coil Phono, then output it to phono stage.
Suitable for: mobile phones, computers, TVs, iPad, tablets, players, MP3 cd players, MC phono etc
Bandwidth: 28Hz-68KHz (-0.5dB)
300Ω+300Ω: 2400Ω for smartphone /PC / TV Player (1 to 2)
600Ω:2400Ω for CD Player (1 to 1)
125Ω:47KΩ for MC Phono (1 to 20)
Casing: whole aluminum, the whole piece of aluminum plate is hollowed out
Surface treatment: anodizing, wire drawing
Input: Gold-plated RCA terminal * 2PCS
Output: gold-plated RCA terminal *2PCS
Size (W*D*H): 100mm * 71mm*50mm
Net weight: 0.3kg
Gross weight: 0.38kg
