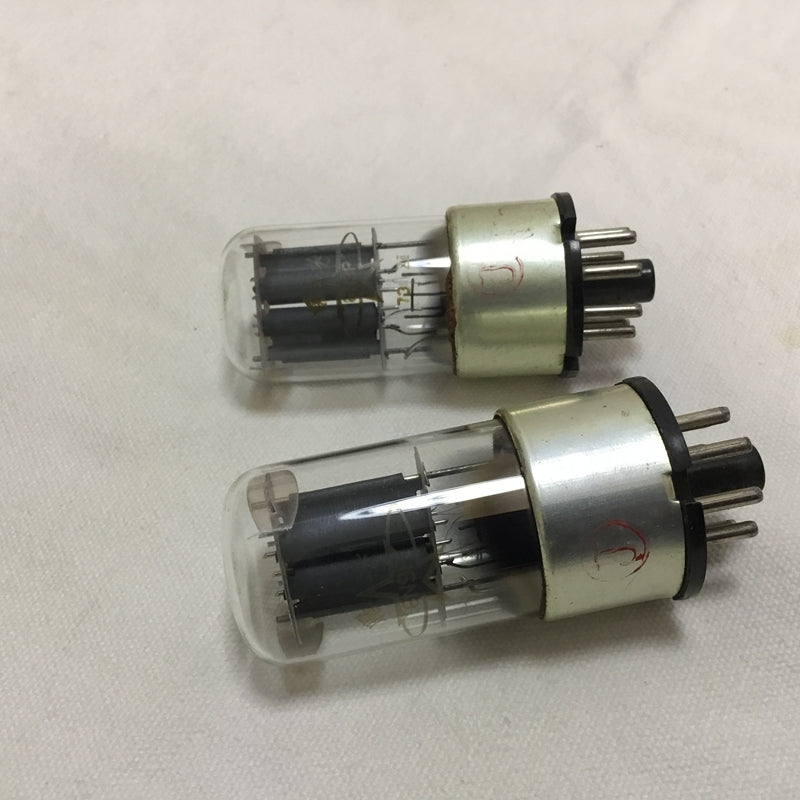

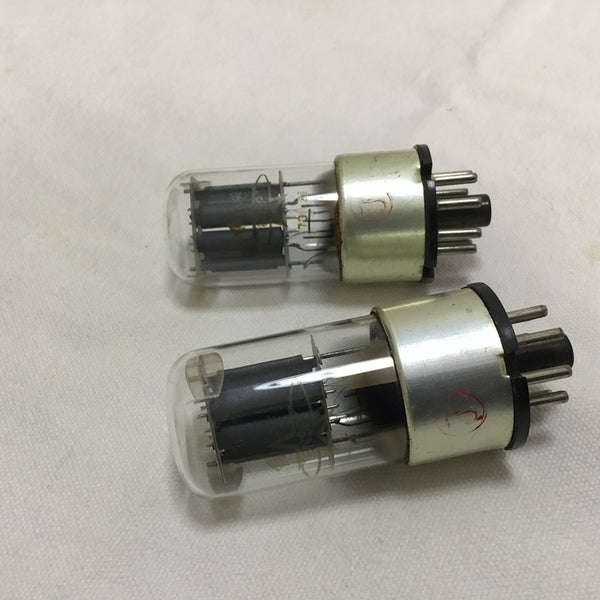

SHUGUANG 6N9P Vacuum Tube Military 2PCS/Lot for Tube Amplifier Replace 6SL7/VT229/6H8C

193 In stock

Tube

SHUGUANG Tube 6N9P (J ) Military Grade for Tube Amplifier Replacement for 6SL7/VT229/6H8C High Reliability  Sale the item as 2pcs/lot  Type: indirectly heated cathode dual triode Main application: low frequency power amplifier   Details       Basic Data Filament voltage (Uf) = 6.3V; Filament current (If) = 0.3 0.025A; Anode...
$16.90
+
-
$16.90
Wishlist

To add this product to your wish list you must Sign In or Create an account

SHUGUANG Tube 6N9P (J ) Military Grade for Tube Amplifier Replacement for 6SL7/VT229/6H8C High Reliability


Sale the item as 2pcs/lot

Type: indirectly heated cathode dual triode

Main application: low frequency power amplifier



Details



6n9p(4L)

6n9p(2 L)



6n9p(1L)



Basic Data

Filament voltage (Uf) = 6.3V;

Filament current (If) = 0.3 0.025A;

Anode voltage (Ua) = 250V;

Gate voltage (Ug) = -2V;

Anode current (Ia) = 2.3 0.9mA;

Tran conductance (S) = 1.6 0.4mA / V;

Amplification Coefficient () = 70 ~ 15.



Electrode capacitance

Input capacitor (Cin) = 1.7 ~ 3.2pF;

Output capacitor (Cout) = 0.3 ~ 1.6pF;

Transition capacitance (Cag) = 1.5 ~ 4pF.



Limit the use of data

Maximum filament voltage (Ufmax) = 6.9V;

Minimum filament voltage (Ufmin) = 5.7V;

Maximum anode voltage (Uamax) = 175V;

Maximum voltage between the filament and the cathode (Ufkmax) = 100V;

Maximum anode dissipation power (Pamax) = 1.1W;

Maximum gate resistance (Rgmax) = 0.5M.



Diagrammatic Sketch of Tube Pins



PINS



6N9P (Curve1)6N9P (Curve2)6N9P (Curve3)
