SHUGUANG 6CA7 Power Vacuum Tube for HIFI Tube Amplifier Replace EL34-B High Reliability

997 In stock

Tube shields

To add this product to your wish list you must Sign In or Create an account

SHUGUANG Power Amplified Tube 6CA7 for HIFI Tube Amplifier Model WVT2016 & WVT2018 Replace EL34-B High Reliability   It can replace tube EL34-B directly.Photos and tubes don't show any logo and text on the surface of tube for this customized tube.     Hot wire heating UH: 6.3 V IH:...
$68.00
Click to refer to Shipping Rate
+
-
$68.00
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

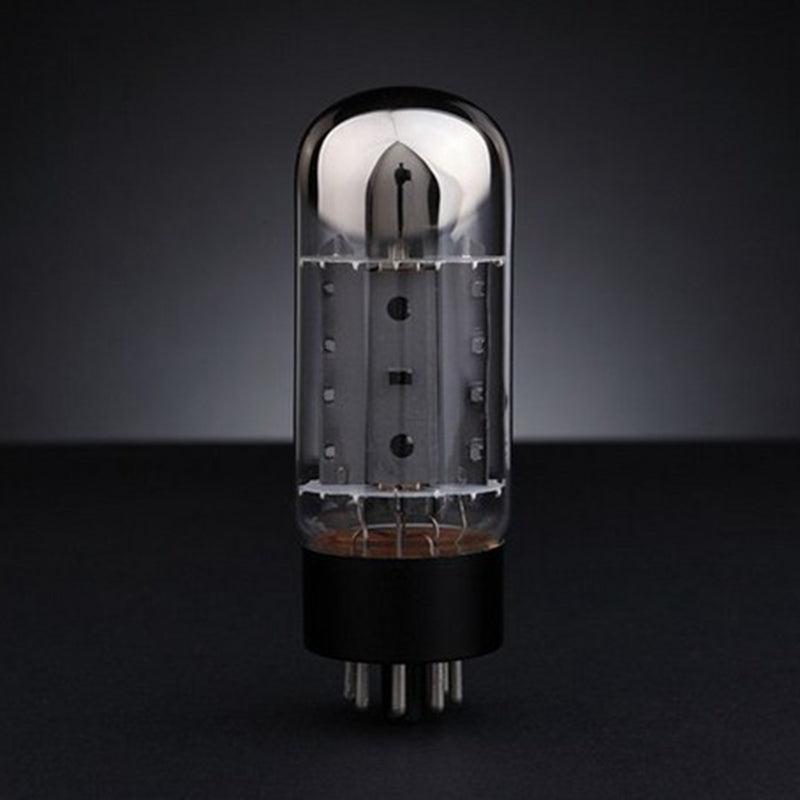

SHUGUANG Power Amplified Tube 6CA7 for HIFI Tube Amplifier Model WVT2016 & WVT2018 Replace EL34-B High Reliability



It can replace tube EL34-B directly.Photos and tubes don't show any logo and text on the surface of tube for this customized tube.



6ca7(1)



Hot wire heating

UH: 6.3 V

IH: 1.5 A



Limit Ratings

Anode voltage: 800 V

The second gate voltage: 500 V

The first gate voltage: -100 V

Anode dissipation power: 25 W

The second gate power dissipation: 8 W

Cathode current: 150 mA

The first gate resistor:

0.7 M when the bias from

0.5 M fixed bias

Between hot wire cathode voltage: 100 V

Bulb Temperature: 250 degree Celsius



Capacitances

Input capacitance: 15.2 PF

Output capacitance: 8.4 PF

Capacitor across the road: 1.1 PF

The first hot-wire capacitance between the gate: 1.0 PF

Between hot wire cathode capacitance: 10 PF



Static parameters

Ua: 250 V

Ug2: 250 V

Ug3: 0 V

-Ug1: 12.2 V

Ia: 100 mA

Gm: 11 mA / V

Ri: 15 k

g1-g2: 11



6ca7(1)6ca7(2)6ca7(3)6ca7(4)6ca7(5)



Dimension and pins

EL34-B(P)





Application Curves of 6CA7

EL34-B( c)

EL34-B(c1)EL34-B(c2)
