6.35 Headphone Female Jack Zinc Diecast Shell NEUTRIK for HI-END Amp Preferred NJ3FP6C HIFI Audio

189 In stock

HIFI Audio Accessories

To add this product to your wish list you must Sign In or Create an account

6.35 Headphone Female Jack (6.5MM) Ag Plated Contact Zinc Diecast Shell Neutrik for HIEND Amplifier Preferred NJ3FP6C HIFI Audio   Model No: WHFCN-NX635 Technical Information 1. Connection Type: Jack 2. Female Jack   Electrical parameters 1. Contact resistance ( M ohs) : (internal) <6 (initial) 2. Dielectric strength (kVdc): (external) 1 3....
$22.90 $18.90
Save $4.00
Click to refer to Shipping Rate
+
-
$18.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

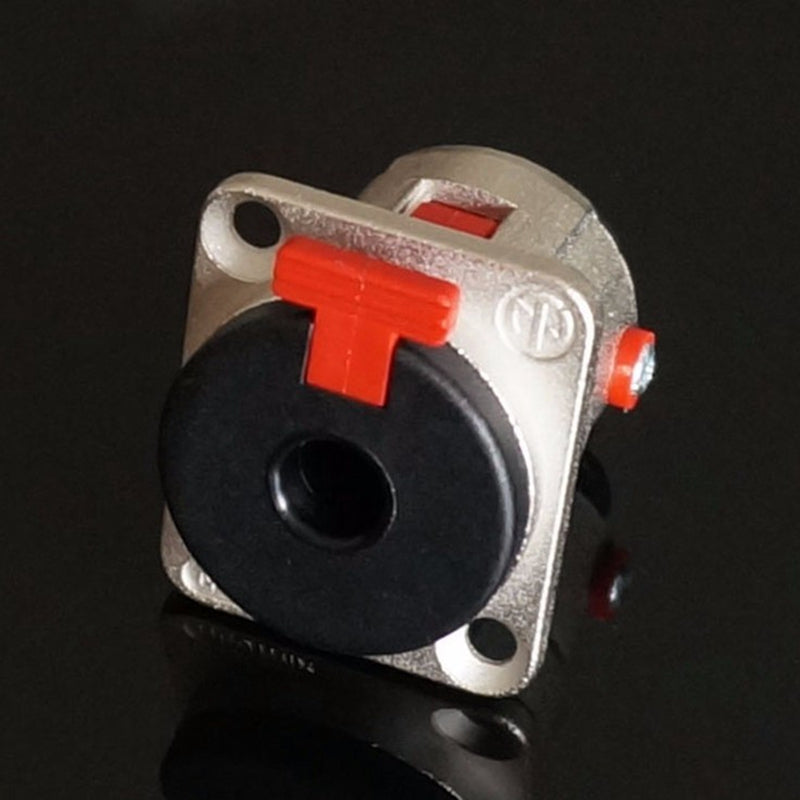

6.35 Headphone Female Jack (6.5MM) Ag Plated Contact Zinc Diecast Shell Neutrik for HIEND Amplifier Preferred NJ3FP6C HIFI Audio


Model No: WHFCN-NX635

WHFCN-NX635(1l)WHFCN-NX635(2l)

Technical Information

1. Connection Type: Jack

2. Female Jack



Electrical parameters

1. Contact resistance ( M ohs) : (internal) <6 (initial)

2. Dielectric strength (kVdc): (external) 1

3. Insulation resistance (G ohms) : 1 500 V dc

4. Each contact with rated current ( A): 10



Mechanical specifications

1. Insert the pressure (N): <20

2. Disconnect pressure (N): <20

3. Life cycle: > 10000

4. Clamping force : > 80

5. Wire dimensions (mm): 1

6. Wire size: 18 AWG

7. Wiring Solder contacts

8. Locking device: Latch lock

9. Install direction: the front

10. D base shape



Material

1. Contact Plating: 2 m Ag

2. Contact Brass (CuZn37) :Ground

3. Inner core Polyamide: PA 6.6 30% GR

4. Shell Zinc diecast: ZnAl4Cu1

5. Shell Plating color: Black

6. Strain relief : Polyacetal (POM)



Environmental Protection

1. Standard EIA RS 453, IEC 60603-11

2. Solderability: Complies with IEC 68-2-20

3. Temperature range ( C ):-25 to +70



Application by DIY audiopholes



WHFCN-NX635(A1l)WHFCN-NX635(A2l)WHFCN-NX635(A3l)WHFCN-NX635(A4l)
