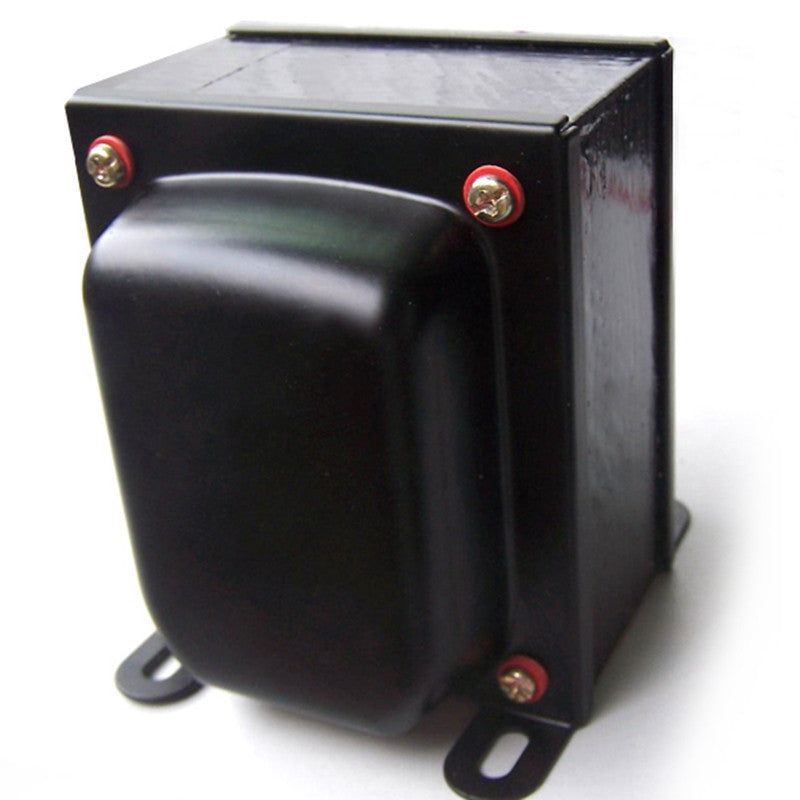

IWISTAO 50W Tube Amp Output Transformer Single-ended Z11 Silicon Annealed Steel 2A3 300B

100 In stock

Tube Amplifier Output Transformer

50W Tube Amplifier Output Transformer Single-ended Z11 Annealed Silicon Steel EI Transformers 0-4-8ohm for Tubes 2A3 300B EL156 KT88 FU13 EL34 6P3PAudio HIFI DIY  Model No: WVTR-OT50W   The output transformer adopt core of Japan Z11 (0.35EI) Annealed Silicon Steel dedicated audio sheet, high quality oxygen-free copper wire coil package,...
$145.80
Primary impedance
+
-
$145.80
Wishlist

To add this product to your wish list you must Sign In or Create an account

50W Tube Amplifier Output Transformer Single-ended Z11 Annealed Silicon Steel EI Transformers 0-4-8ohm for Tubes 2A3 300B EL156 KT88 FU13 EL34 6P3PAudio HIFI DIY

Model No: WVTR-OT50W



The output transformer adopt core of Japan Z11 (0.35EI) Annealed Silicon Steel dedicated audio sheet, high quality oxygen-free copper wire coil package, and use pure pulp insulating paper between each insulated layer. Production process of output transformer defying cumbersome, adopt 2 out 3 clips or 4 out 5 clips method with hierarchical segmentation, placing paper with group by group, also with processes of meticulous, careful winding, vacuum impregnation, these lead to the transformer has good insulation and moisture resistant, transparent sound, sweet warm and mellow, excellent solution and clarity, as well as nice shape.



It is a better choice to tube amplifier audiophiles.







WVTR-OT50W(3l)











PS: A stereo tube amplifier need 2 pcs output transformers.



WVTR-OT50W(1l)

Specifications

  1. Power: 50W (20Hz)
  2. Frequency Response: 20Hz-30KHz, -2dB
  3. Primary Impedance: 3.5K or 2.5K ohms, two kinds of optional (please specify with leave message, default as 3.5k
  4. Secondary: 0-4-8
  5. Core Size: Wide core tongue 35mm, stack thickness 50 mm (105 pcs plates),
  6. Material: Japan imports z11 chip
  7. Applicable for tubes : 2A3 300B EL156 KT88 FU13 EL34 6P3P (one tube or parallel connection tubes)
  8. Weight: 3.5kg



Packing List

    1pc x 50W Tube Amplifier Output Transformer
