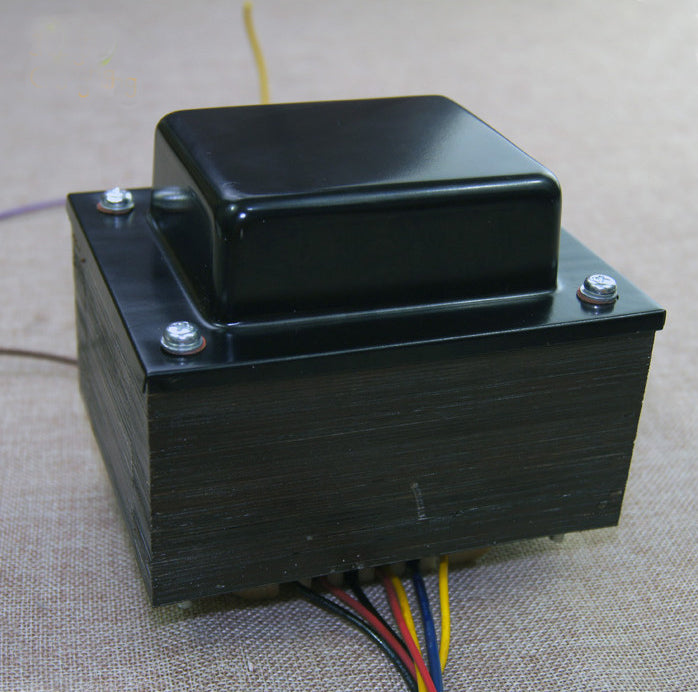

IWISTAO 480W Power Transformer for Tube Amp Push-Pull KT88 KT100 3.15V, 120V, 400V-350V-330V-280V-0

48 In stock

Tube Amplifier Power Transformer

480W Power Transformer for Tube Amp Push-Pull KT88 KT100HorizontalMount 3.15V-0-3.15V/7A, 120V-0/0.16A, 400V-350V-330V-280V-0/1A    Model No: WHFTPP-PT480W   The power transformer adopt high quality silicon steel sheet, high quality oxygen-free copper wire coil package, and use pure pulp insulating paper between each insulated layer. Production process of output transformer defying cumbersome,...
$139.90 $112.90
Save $27.00
Click to refer to Shipping Rate
Voltage
+
-
$112.90
Wishlist

To add this product to your wish list you must Sign In or Create an account

480W Power Transformer for Tube Amp Push-Pull KT88 KT100HorizontalMount 3.15V-0-3.15V/7A, 120V-0/0.16A, 400V-350V-330V-280V-0/1A


Model No: WHFTPP-PT480W



The power transformer adopt high quality silicon steel sheet, high quality oxygen-free copper wire coil package, and use pure pulp insulating paper between each insulated layer. Production process of output transformer defying cumbersome, adopt 2 out 3 clips or 4 out 5 clips method with hierarchical segmentation, placing paper with group by group, also with processes of meticulous, careful winding, vacuum impregnation, these lead to the transformer has good insulation and moisture resistant, transparent sound, sweet warm and mellow, excellent solution and clarity, as well as nice shape.



It is a better choice to tube amplifier audiophiles.



WHFTPP-PT480W(1 8x8)WHFTPP-PT480W(1 8x8)2WHFTPP-PT480W(1 8x8)3WHFTPP-PT480W(1 8x8)4



Specifications

1. Input voltage: AC120, AC 220V or 230V

2. Output voltage: 3.15V-0-3.15V/7A, 120V-0/0.16A, 400V-350V-330V-280V-0/1A

3. Rated power: 480W

4. Core shape: EI type 133*60

5. Core material: Made of high-quality silicon steel sheet

6. Wire material: pure copper

7. Skeleton shape: I-shaped

8. Moisture protection: open9. Cooling method: natural cooling

10. Structure: single-phase transformer

11. Dimensions: length 133MM, thickness 95MM (including hood size), width 110MM, steel stack thickness 65MM

12. Installation method: horizontal installation

13. Weight: 8kg
