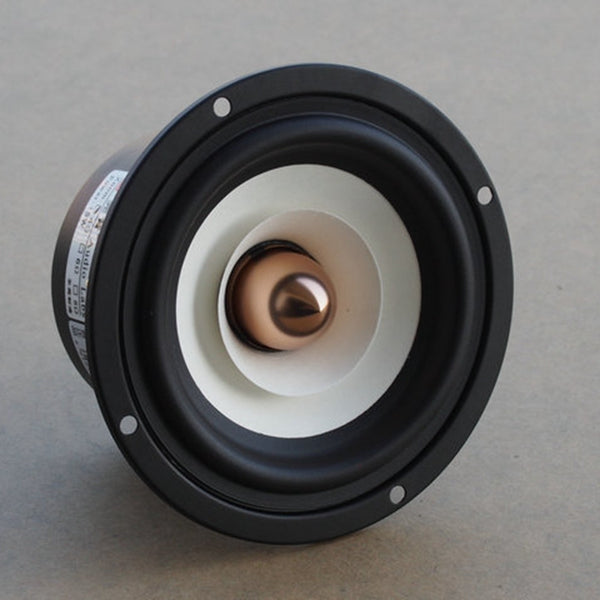

4 Inch HIFI Full Range Speaker Unit Rated Power 12W for Desktop Audio Book Shelf Speakers Tube Amplifier DIY
Model No: WHFFP-DQ40TZ
Surround edge of this HIFI full-range speaker unit is made of rubber, its low frequency diving performance is a little deeper than the PU, fabric and leather materials one. Also its cone is lighter, but high frequency is very clear and thorough, outstanding vocals, layering clear. Recommend the speaker unit to be used as HIFI desktop or book shelf speakers, which will be treasures in the bedroom or study due to its stylish appearance and excellent performance doubtless.
At the same time, T-iron Faraday of this full-range speaker unit is added a copper ring, and coupled with a metal cone phase, the design concept is very diligent, not only in appearance exquisite, but also high-fidelity sound quality is sought to ensure that the original flavor of each note are be restored. Treble cup, it allows its high-frequency is better than the same caliber of average full-frequency speaker unit, and it has even harmonizing feeling as same as silk membrane treble speaker unit, is very transparent.
1. Rated Power: 12W
2. The power range: 5W-15W
3. Speaker unit size: 4 inches
4. Impedance: 4 or 8 ohms
5. Frequency range: 61Hz-18.5 KHz ± 3dB
6. Sensitivity: 88 dB
7. Q Value: 0.46
8. Speaker diameter: 93mm, diameter of hole screw is 110.5mm
9. Cabinet volume: 10.6 L
10. Qty: 1 pair
If you need use it to assembling your lstereo
Below is the version for square speaker unit.
You can use the unit to make HIFI 2.0 speakers cabinet if you don’t demand bass strictly, and amplifier’s rated output power is about 15W * 2 that is optimum power, tube amp’s one is about 5W / channel can be easily driven. If you pursue a greater intensity of low-frequency, you can add a subwoofer 2.1 speaker to achieve it, the effect is very shocking, overall high resolving power.
This cabinet is only a recommended plan drawing for reference purposes only. Design is relatively simple, pre-inverting personal audition feel pretty good. Note that the thickness of the cabinet must be standard thickness; otherwise low frequency horn will sound resonance or, more boring. If the cabinet has been formed, you can try to place a little more sound-absorbing cotton.
Applications by HIFI audiophiles
