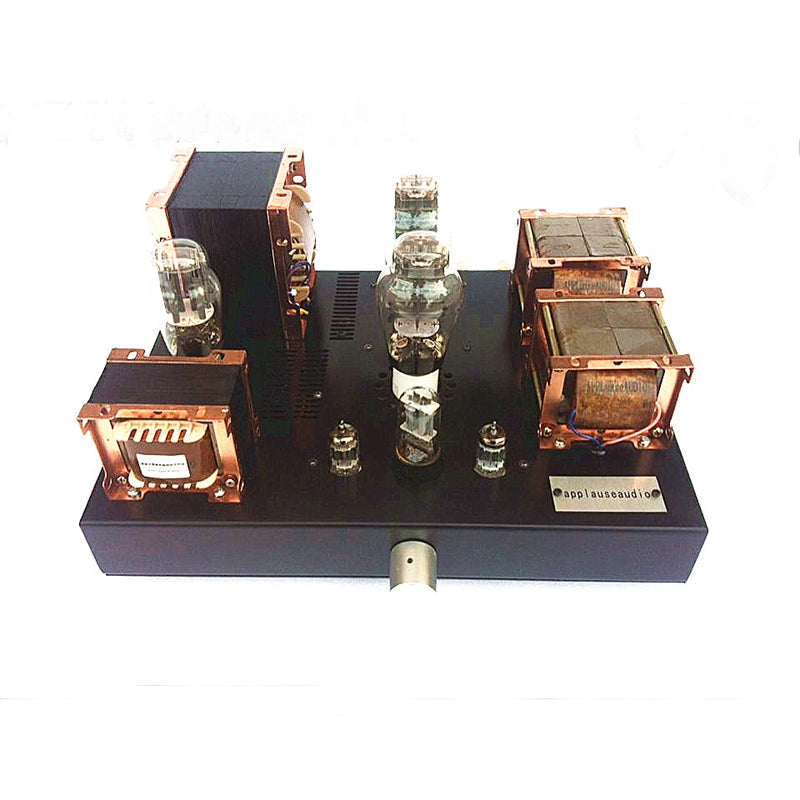

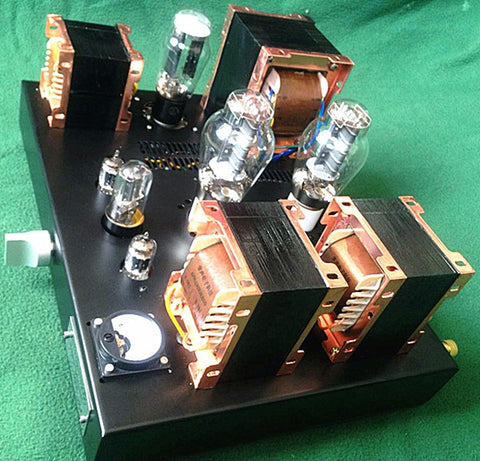

300B Single-ended Class A 2X8W Tube Amplifier British Amorphous 8C Advanced Core Output Transformer

15 In stock

Single-ended Class A Tube Amplifier

300B Single-ended Class A 2X8W Tube Amplifier British Amorphous 8C Advanced Core Output Transformer HIFI Audio   Model No: WVT-AN300B(8C)   This 300B single-ended tube amplifier adopts the famous Audionote circuit. Its power transformer carefully wounded by British Red Bull iron core. The advanced HI-FI design without large loop feedback...
$1,039.00 $959.00
Save $80.00
Click to refer to Shipping Rate
+
-
$959.00
Wishlist

To add this product to your wish list you must Sign In or Create an account

300B Single-ended Class A 2X8W Tube Amplifier British Amorphous 8C Advanced Core Output Transformer HIFI Audio



Model No: WVT-AN300B(8C)



This 300B single-ended tube amplifier adopts the famous Audionote circuit. Its power transformer carefully wounded by British Red Bull iron core. The advanced HI-FI design without large loop feedback makes the sound delicate and lingering, and rich musical.

 And, The 300B single-ended output transformer uses British amorphous high-grade C-type iron core that has a unique advantage, especially when he static operating point is 80ma or below , it can give full play to the advantages of the output transformer. After actual measurement and listening, the voice is very vivid, clear, low-frequency tension is very balanced in three bands, excellent permeability and atmosphere feeling. Using high-quality enameled wire, lamination process, CNC drying, vacuum impregnation, well-designed 8C structure, to design to a perfect coefficient.





Inside Views

Features

  1. Power Transformer: 300W British Red Bull Sands sheet 114*70
  2. Output transformer: 30W  British Amorphous 8C Advanced Core 96*45
  3. Choke: 10H British Red Bull Notched Core 76*50
  4. Process: pure hand scaffolding
  5. Adopt circuit switch delay circuit with 20 seconds high voltage protection function,
  6. 2 groups of signal inputs.
  7. Metal casing with 1.5mm thickness.
  8. The input terminal is gold-plated RCA; the output adopts high-quality high-current output terminal; volume potentiometer uses ALPS27 type 100K; HIFI coupling capacitor available, CMC 300B tube socket.



Circuit diagram for information



Specifications

  1. Power: 8W+8W
  2. Output impedance: 0-4-8 ohms
  3. Input impedance: 100K
  4. Working voltage: AC220V/50-60Hz
  5. Tubes
    • PSVANE 300B*2
    • Tube: 5687*2 (United States GE new antique tube)
    • Tube: 6H8C/6sn7 *1 (New Soviet antique tube)
    • Tube: 5Z3P*1

      6.Weight: 16.8Kg
      7.Size (L * W* H): 400mm * 300 mm* 60mm

      8. Accessories

         Power cord x 1

 Applications
