IWISTAO 2x3W Mini Single-ended Tube Amplifier 6J1 Preamp FU32 Amplified Acrylic Casing kit DIY

29 In stock

Single-ended tube amplifier

IWISTAO 2x3W Mini Single-ended Tube Amplifier 6J1 Preamp FU32 Power Amplified Acrylic Casing Amplifier kit DIY Model No: WVTS-FU32SE This is a pure tube amplifier, sound of this amplifier is charming, and the single-ended output of the amplifier is even more attractive. It uses tube FU32 with single-ended 3W output...
$185.00
Type
+
-
$185.00
Wishlist

To add this product to your wish list you must Sign In or Create an account

IWISTAO 2x3W Mini Single-ended Tube Amplifier 6J1 Preamp FU32 Power Amplified Acrylic Casing Amplifier kit DIY


Model No: WVTS-FU32SE

This is a pure tube amplifier, sound of this amplifier is charming, and the single-ended output of the amplifier is even more attractive. It uses tube FU32 with single-ended 3W output power , and the same golden power as tube 2A3.
As long as the speakers are larger than 4 inches or equal to 4 inches, they will generally get a satisfactory volume! Output  impedance is 4 ohms, 6 ohms and 8 ohms  can be selected, as long as the related socket can be inserted, it is very easy to use!

Features

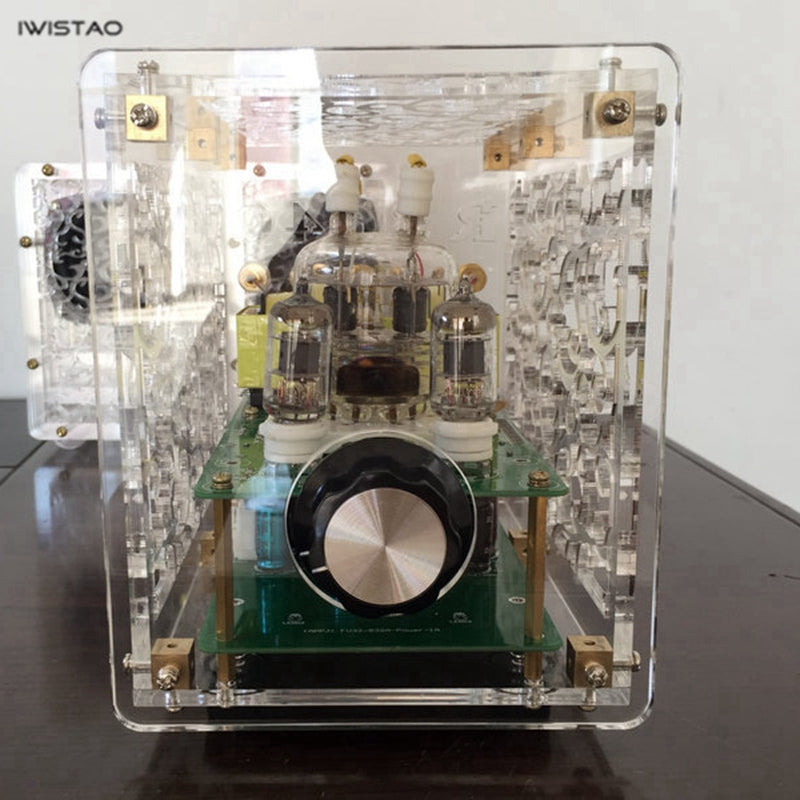

1. The casing is made of 4.5MM thick acrylic sheet. The charming lace is hollow, full of Chinese elements, people can not put it down! Very beautiful is simply a fine art! Can play well!
2. A customized switching power supply  built in.
3. Use HIFI component. The filter and coupling capacitor adopts HIFI level one; the input adopts two high-grade pure copper lotus seats, and the output adopts eight all-copper crystal columns; ALPS potentiometer and so on.
4. Its output transformer is made of Z11 silicon steel sheet and oxygen-free copper.

WVTA-FU32SE(1 800x800)lWVTA-FU32SE(2 800x800)WVTA-FU32SE(5 800x800)WVTA-FU32SE(P13)800x800WVTA-FU32SE(P)800x800

Specification


1. Output Power: 2x3W (8 ohms)
2. Frequency response: 30hz-20K Hz (-1dB)
3. Input sensitivity: 500mv
4. Signal to noise ratio: >86dB
5. Residual noise: <0.5Vac
6. Input impedance: 10K ohms
7. Output Impedance: 4 ohms / 6 ohms / 8 ohms
8. Input voltage: AC 86-264V
9. Power Consumption: 40W
10. Vacuum tube:
a) 2x 6J1
b) 1x FU32 (substitute 832A)
11. Accessories
Power cord x 1



Replacement for FU32
