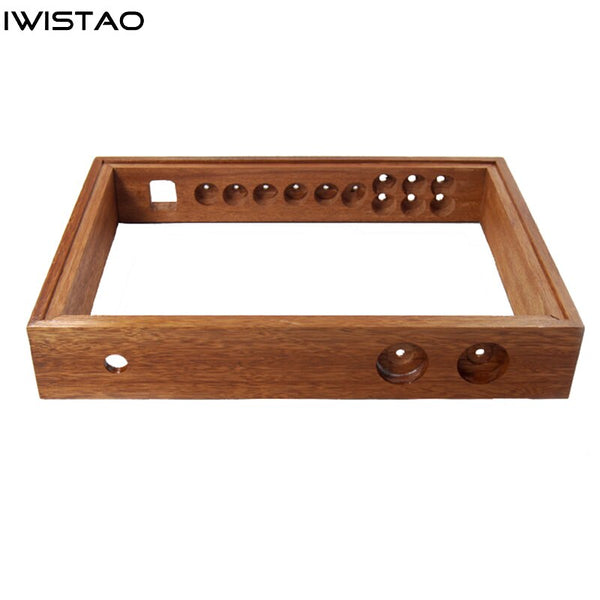

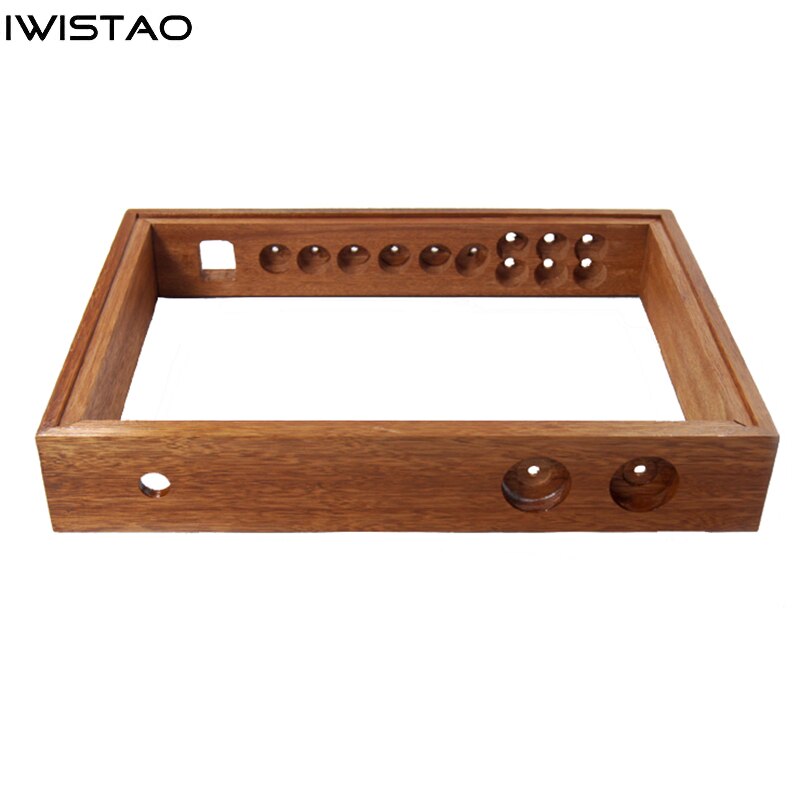

IWISTAO Vacuum Tube Amplifier Casing Red Walnut Wood Frame Chassis Retro Style 3 Group Inputs 400x65x300 Top Aluminum Plate HIFI Audio DIY

Model No: WWC-TP400-65-300

Red walnut wood is a medium-hard wood, which has been dried, and the chassis is strong and straight, and is not easy to crack and deform. The wooden frame is joined by stainless steel nails and high-strength wood glue, and the nail holes are backfilled with sawdust.

There is no opening on the top plate. If you need to open other holes, please solve it by yourself. Our shop sells tools for opening round holes for electronic tube sockets.

Features

1. Front panel drilling holes: 16mm power switch through hole, can install angel eye self-locking switch or toggle switch, when using the toggle switch, there is a conversion iron sheet.

The volume knob and switching band switch have a hole diameter of 38mm, a counterbore depth of 10mm, and a potentiometer aperture of 6mm(the hole needs to be drilled larger when using a 27-type potentiometer).

2. Rear panel drilling holes: American standard power socket with insurance, drilling size 33mm*28mm; 0-4 -8 ohm output terminal holes in two groups of 6, opening diameter 5mm; 6 RCA holes, drilling diameter 9.5mm.

Details

Specifications

1. Wooden frame material: 20mm thick red walnut wood, after many times of grinding and painting, the wood color is, no coloring.

2. External dimensions of the box (W*H*D): 400mm*65mm*300mm (excluding the dimensions of knobs/terminals/machine feet)

3. Internal dimensions of the box (W*H*D): 360mm*55mm*260mm

Parts List

1. 2MM thick aluminum alloy top plate x 1

2. 1MM perforated varnished iron base plate x 1

3. Power input socket (American standard 10A 250V) x1

4. 5×20 fuse 2A x 1, 5×20 fuse 1A x 1

5. With indicator switch 2A 250V stainless steel x 1

6. 2-pole 3-speed band switch x 1

6. M3*10MM countersunk head self-tapping wood screws

7. 19MM*7MM self-adhesive chassis rubber feet x 4

8. C2 35MM copper core aluminum plastic knob with scale x 2

Remarks:

The texture of each case is not the same, the pictures on the website are for reference only, and the actual product shall prevail when the buyer receives the goods. If you purchase this product, you agree to the terms.
