Tube FM Tuner
IWISTAO Discrete Components FET Stereo FM Tuner Board LA3401 Decoding Air Variable Capacitor Tuning
Model No: WHFB-SPFMVA-WTA
This is a PCBA bord, and you should connect a quality power supply as DC12V , don't use a switch power supply that interfere the radio signal receiving , you may use common linear power from power transformer. It is best if you can provide power form battery，please try it if available.

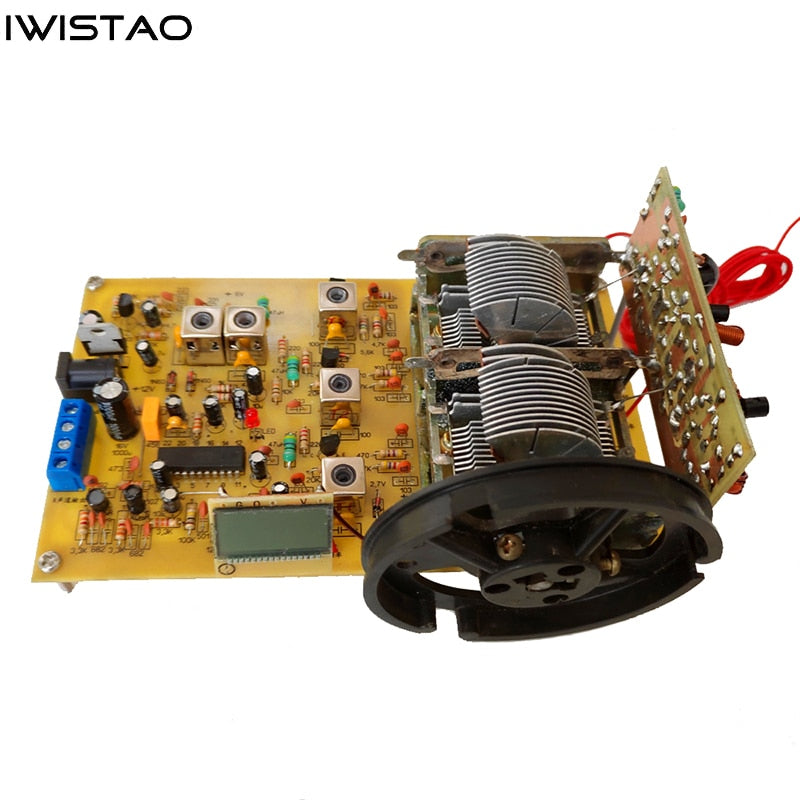

This is a stereo FM radio finished board with discrete components. You only connect DC12V power adapter and speakers then you can enjoy wonderful FM radio. Or, you may make a wooden casing and DIY it as a vintage radio.
The receiving part adopts the discrete component split frequency tuning head as a HF receiving unit. The PCBA adopts double balanced proportional discriminator with excellent sound quality, and also optimizes its layout of the intermediate frequency circuit PCB, improves the stability of the intermediate frequency. And it uses a LA3401 decoding chip as FM stereo decoder, whose resolution is up to 70dB, its noise ratio is up to 95 dB. At the same time, a first-stage FM mixed signal preamplifier is added, which improve the problem that the LA3401 standard circuit cannot be driven in weak signal, so that each radio station can achieve good mediation resolution. After then, the LA3401 has no decoding noise and is comparable to the LA3450 chip.
Wire Connections diagram (The photo only for your information )
1. Power supply voltage: DC12V (no including power adapter)
Discrete components Stereo FM radio x 1pc
