IWISTAO Discrete Components MM/MC Phono Stage FET Amplifier for LP Phono Split-type AC110V/220V HIFI Audio
Model No: WMMC-PA28
The phono preamp contains two types of phono amplifiers, MM and MC, which can be adapted to most users' vinyl record players on the market.
Features
1. Choose fully discrete components to build the circuit, easy to fine-tune the various data parameters.
2. The main amplifier circuit adopt Field Effect Transistor (FET), which is convenient to reduce the sensitivity of the components to temperature changes and improve the distortion.
3. Choose pure class A circuit to form discrete component amplifier circuit, effectively reduce harmonic distortion and improve sound effect.
4. The phono equalization circuit does not use the feedback circuit of the conventional integrated IC circuit, but chooses the attenuation type, whichever is the natural characteristic of the timbre.

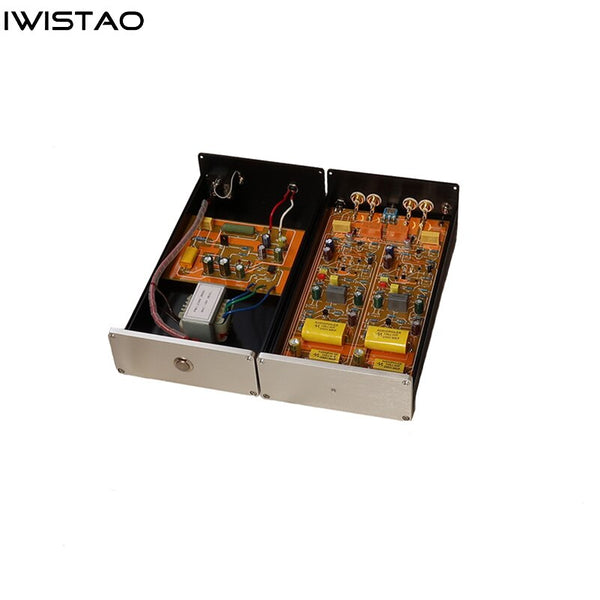

5. The two aluminum chassis are the same size, both are 133mm wide, 63mm high, and 250mm deep
Specifications
1. Voltage gain (1KHz): MM: 40dB, MC: 60dB,
2. Distortion (1KHz, 500mV output): MM: 0.8%, MC: 1.2%,
3. Signal-to-noise ratio (1KHz, unweighted): MM: 85dB, MC: 75dB
4. Input impedance: MM: 30KΩ, MC: 470Ω
5. Frequency response: 20Hz-20KH±2dB.
6. Applicable mains voltage: AC220V / 110V, or 240V
7. Size ( W*H*D): 133mm * 63mm * 250mm
7. Gross weight: 3kg
8.Accessories
Power cord x 1
DC power cable x 1
Wire Connection Diagram
Learn more about stage amplifier
Phono stage amplifier is designed for a phono signal amplification while using Turntables amplifier inside for special sound equalization circuit (RIAA) for restoring vinyl, it cannot be used for other purposes.
Method for checking noise sources
After phono player connected with the phono amplifier stage, if there is a significant low-frequency noise, you need to check in which part of the noise. First unplug the phono amplifier input signal cable to disconnect connection between them, if the low-frequency noise disappeared or significantly reduced, that may explain the noise from the phono player; obvious if the same or reduce low frequency noise , the noise it is very likely to put itself caused by phono amplifier.
It may cause a greater frequency noise that no specialized non-standard phono ground wire.
Generally, nonstandard phonograph is a turntable part of music center to cope with this set of sound designed, when external phono amplifier put to ground that could cause a large hum due to the different ground ways.
