TB-W5-1880 HIFI 5 Inch Full Range Speaker Unit 1 Piece 48-20K Hz Power 30-60W Neodymium Bamboo Fiber Paper Cone DIY

57 In stock

HIFI Speaker Unit

To add this product to your wish list you must Sign In or Create an account

TB-W5-1880 5 Inch Full Range Speaker Unit 1 Piece 48-20K Hz Power 30-60W Neodymium Bamboo Fiber Paper Cone HIFI DIY     Model No: WHFRSU-TBW51880 TB-W5-1880 type is Taiwan TB5 inch advanced model full frequency unit. Since the full-frequency design has no crossover loss and phase distortion, it can reproduce...
$229.90
Click to refer to Shipping Rate
+
-
$229.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

TB-W5-1880 5 Inch Full Range Speaker Unit 1 Piece 48-20K Hz Power 30-60W Neodymium Bamboo Fiber Paper Cone HIFI DIY




Model No: WHFRSU-TBW51880


TB-W5-1880 type is Taiwan TB5 inch advanced model full frequency unit.

Since the full-frequency design has no crossover loss and phase distortion, it can reproduce the original and pure sound quality. W5 uses bamboo fiber paper diaphragm and special pattern folding ring. The unique phase plug minimizes the second and third harmonic distortion and phase distortion. TB units mostly use thickened sliders, short voice coil and long magnetic gap Underhung magnetic circuit design to ensure stable and uniform magnetic field distribution throughout the piston movement to obtain excellent frequency response.

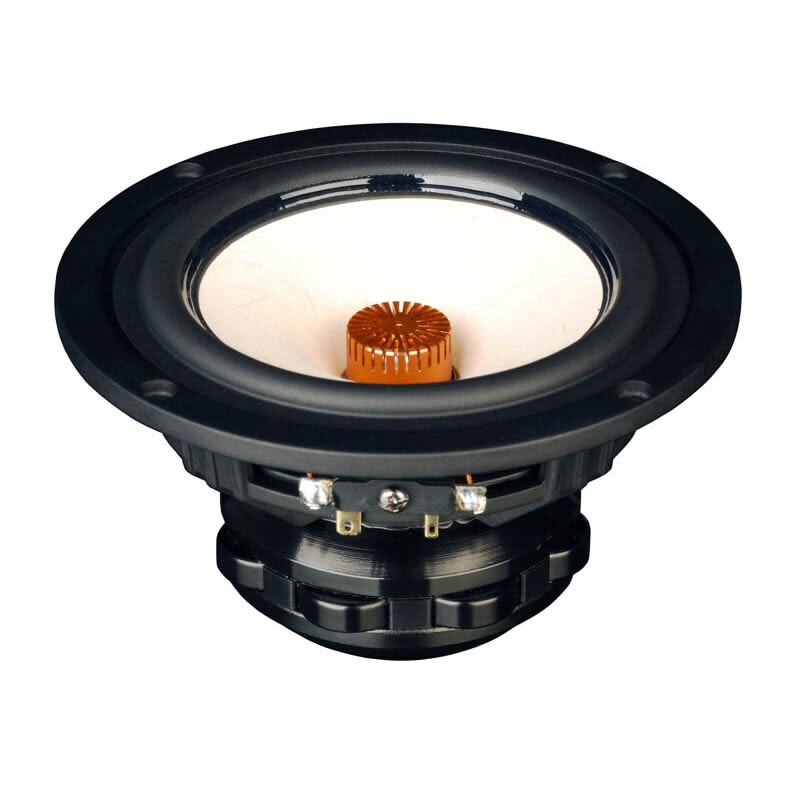

It can be seen from the appearance that its high-quality materials and meticulous craftsmanship are pleasing to the eye. The white paper cone and the copper-colored phase cone make people shine, especially the phase cone design of the microphone head, which is the product of many tests, which can effectively diffuse the eddy current in the center of the diaphragm to radiate uniform spherical sound waves.

The magnetic circuit of this unit adopts petal-shaped neodymium iron boron magnet structure, composed of 8 round neodymium iron boron magnets. This kind of magnetic circuit solves the shortcomings of small internal magnetic structure and weak magnetic properties of conventional magnets, and can easily achieve uniform and stable magnetic field lines, allowing the voice coil to be stably controlled, and ensuring that the voice coil does not deviate from the axis when it moves up and down. The magnetic torque of the petal magnetic circuit is very precise and evenly distributed. When the local magnetic field changes, the magnetic circuit will interact on its own to maintain the overall balance, ensuring that the magnetic field lines received by the voice coil are uniform, so that the sound is accurately balanced, and the imaging ability is greatly improved.







Features


1. Full range monomer design.
2. Magnet type: Neodymium
3. Underhung, Rb-Fe-B magnetic return system design, Xmax = 5mm.
4. Very low THD (second/third harmonic distortion).
5. Low distortion special design phase plug.
6. Bamboo fiber paper cone with durable rubber foam suspension

Specifications


1. Size: 5"
2. Rated power: 30 W
3. Maximum power: 60 W
4. Rated impedance: 8 Ω (DC impedance: 6.3 Ω)
5. Efficiency 1W/1m: 88 dB,
6. Frequency response: 48-20K Hz
7. Natural resonance point: 48 Hz
8. Voice coil size: 25.4 mm
9. Magnetic gap thickness: 15 mm
10. B*L value: 5.46 TM
11. Equivalent air volume (Vas): 26.47L
12. Gross Weight: 2.04 kg/unit
13. Quantity: 1 piece
