HIFI Headphone Amplifier
Earphone Amplifier 12~600 ohms Russian 6922H Preamp Class A Amp HIFI Constant Current
Previous Next29 In stock
HIFI Headphone Amplifier
To add this product to your wish list you must Sign In or Create an account
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

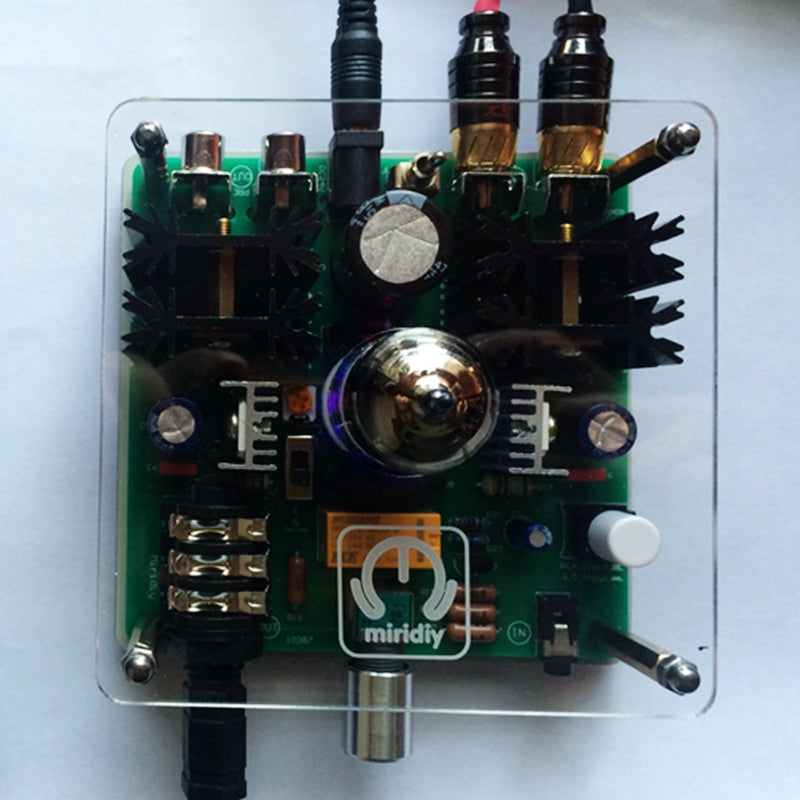

Tube Earphone Amplifier 12 ~ 600 ohms Russian 6922H Pre-amp Class A Amp HIFI Constant Current Simple No Casing Audio DIY High Quality
Model No: WEVT-G3
It is a high value and cute headphone amplifier hook up to your PC / Mp3 /MP4/ Tablet / any stereo devices. You can have a powerful, dynamic and sweet TUBE SOUND from your headphone! You’ll be astounded at the improvement in sound quality, dynamic range, meticulous transparency, completely demonstrate its high performance and analytical ability, it can also connect with power amplifier such as a high performance pre amplifier to improve your HIFI system.
Features
1. Turn mute prompt, the blue LED is lit after boot mute 10 seconds, indicating the audio output is switched on. You can better protect your headphones and other related equipment.
2. Tube switch, make it easier, more tubes can be used on this unit to try, such as 6 series tube: 6DJ8 / 6922 / 6n11 / E88CC / 6H23; or 12 series tubes: 12AU7 / 12AX7 / 1 2AT7 / ECC82 / 6N4.
3. Class A designed with high current output can drive up to 12 ohms impedance headphones; you can hear a very powerful bass.
4. High-fidelity performance designed can be used as direct drive your pre-amplifier, it will kill any pre amp with US $ 1000- price or may be higher. Unplug 6.35 headphone plug, the output signal can be switched RCA output.
5. Input signal switching function, through the switch can easily choose 3.5 or RCA input
6. 6.35mm plus 3.5mm headphones output jack, easier to use, does not require additional adapters.
7. Layout designed more reasonable, and SNR higher.
8. Constant current circuit, working more stable.
Product Specifications
1. Frequency response: 10Hz-60KHz +/- 0.25dB
2. Signal/Noise Ratio: > 92dB
3. Dynamic range: 84.6dBA(300 ohm) to 89.8dBA(13 ohm)
4. THD: 0.016%(300 ohm) 0.45%(13 ohm)
5. Gain: 20dB
6. Input Sensitivity: 50mV
7. Input Impedance: 100KOhm
8. Output Impedance: 12~600 Ohm
9. Operation Voltage: DC24V
10. Interfaces:
11. Weight: 0.7 kg
12. Dimension (D * W * H): 100mm X 100mm X 50mm (not measure to tube and transformer)
13. Accessories
