IWISTAO 3 Way Crossover Max Power 450W Crossover-point 1080HZ, 3.2/3.8/4.6KHZ 4-8ohm Speakers Unit HIFI Audio

Previous Next

982 In stock

HIFI Passive Crossover

To add this product to your wish list you must Sign In or Create an account

IWISTAO 3 Way Crossover Max Power 250W Crossover-point 1080Hz, 3.2/3.8/4.6KHz Adjustable 4-8ohm Speakers Unit HIFI Audio Model No: WHF-3WCR450W3P This is a HIFI 3 way crossover for DIY your speaker cabinet. Its inductors mining is 6N copper wire wound with low resistance and low copper loss. Resistor adopt 25 W metal-sealed non-inductive resistance, which can fast heat dissipation, also high frequency capacitor all use HHP polypropylene film capacitor which is the advantage for high frequency loss angle is smaller and response speed is faster. It is suitable for those 6 to 15 inch speaker cabinet. Details PS: 1pc crossover for 1pc HIFI 3-way speaker cabinet. Specifications 1. Maximum Power: 450W 2. Suitable impedance of speaker unit: 4-8 Ω 3. Filter characteristics: Tweeter and bass: 12 dB / otc Midrange: 24 dB / oct 4. Crossover point: 1080HZ, 3.2K/3.8K/4.6K adjustable 5. Dimensions (L * W ): 150mm * 118mm 6. Net Weight: 0.65 KG

Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

IWISTAO 3 Way Crossover Max Power 250W Crossover-point 1080Hz, 3.2/3.8/4.6KHz Adjustable 4-8ohm Speakers Unit HIFI Audio

Model No: WHF-3WCR450W3P

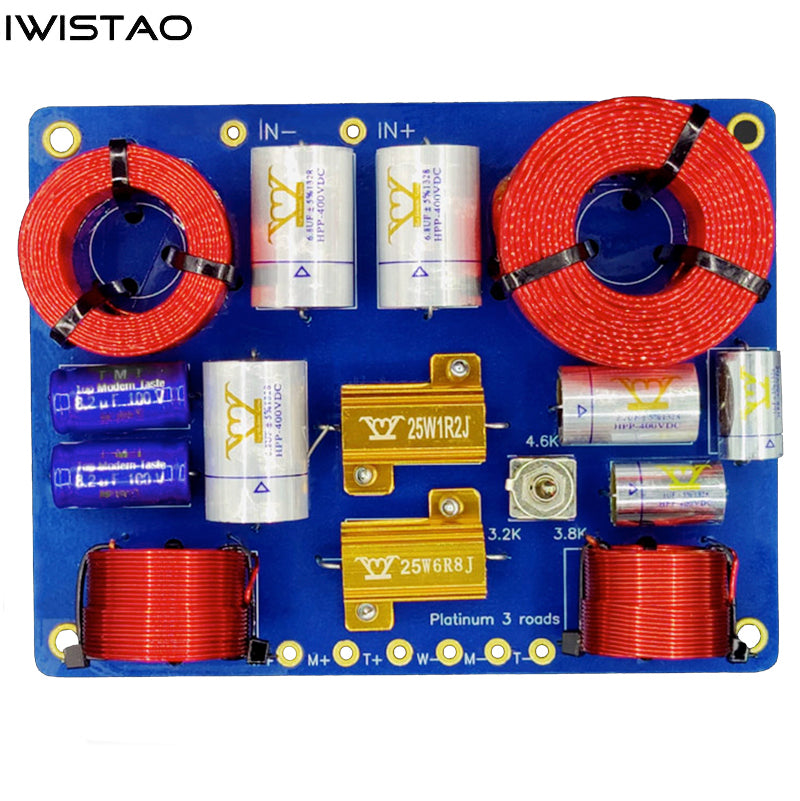

This is a HIFI 3 way crossover for DIY your speaker cabinet. Its inductors mining is 6N copper wire wound with low resistance and low copper loss. Resistor adopt 25 W metal-sealed non-inductive resistance, which can fast heat dissipation, also high frequency capacitor all use HHP polypropylene film capacitor which is the advantage for high frequency loss angle is smaller and response speed is faster.

It is suitable for those 6 to 15 inch speaker cabinet.

Details

PS: 1pc crossover for 1pc HIFI 3-way speaker cabinet.

Specifications

1. Maximum Power: 450W

2. Suitable impedance of speaker unit: 4-8 Ω

3. Filter characteristics:

Tweeter and bass: 12 dB / otc

Midrange: 24 dB / oct

4. Crossover point: 1080HZ,

3.2K/3.8K/4.6K adjustable

5. Dimensions (L * W ): 150mm * 118mm

6. Net Weight: 0.65 KG
